Low Speed Shredders
Conform CE
LS3600TX Low Speed Shredder
Solving long-standing industry maintenance issues.
Vermeer
⤢ Mărește
Pe scurt
- Maximum Length - Transport
- 8.5 m 28 ft
Caracteristici & beneficii
- Built for industry leading maintenance access
- Spend less time fixing and more time shredding
- Highly adjustable to optimize efficiency and end product sizing
- Maximized torque delivery to the rotor for efficient waste processing
Broșuri & fișe tehnice
Date tehnice
Specificații tehnice
| Maximum Length - Transport | 8.5 m 28 ft |
|---|---|
| Maximum length - working | 14.4 m 47.3 ft |
| Maximum Width (Transport) | 2.5 m 8.3 ft |
| Maximum Height (Transport) | 3.5 m 11.5 ft |
| Maximum weight | 32499.9 kg 71650 lbs |
| Maximum tongue weight | kg lbs |
| Maximum axle group weight | kg lbs |
| Make and Model | CAT C13B T4F/Stage V |
|---|---|
| Gross Horsepower (Maximum) | 340 kw 456 hp |
| Transmission Type | Reversing dual clutch |
| Sound Power | 112.9 db(A) |
| Infeed hopper length | cm in |
|---|---|
| Infeed hopper capacity | 7.8 cu m 10.2 cu yd |
| Loading Height | 3.2 m 10.5 ft |
| Feed opening | 88-in (225-cm) wide x 145.75-in (370-cm) long |
| Tip Diameter | 100.3 cm 39.5 in |
|---|---|
| Rotor length | 3.1 m 10.1 ft |
| Rotor Speed | — 30 rpm |
| Number of Tips | 21 |
| Tip types | Tall/short |
| Length | 3.9 m 12.8 ft |
|---|---|
| Width | 104.1 cm 41 in |
| Width | 121.9 cm 48 in |
|---|---|
| Load Height | 8 ft - 14 ft (2.43 m - 4.3 m) |
| Display Type | LCD touchscreen |
|---|
| Display Type | LCD |
|---|
| Frame Description | Unit body construction |
|---|---|
| Tongue Description | — |
| Hitch Type | — |
| Fender Description | — |
| Brake Type | — |
| Trailer Light Type | — |
| Suspension Type | — |
|---|---|
| Manufacturer - Option One | — |
| Capacity per Axle | kg lbs |
| Number of axles (5th wheel) | — |
| Tires - Option One | — |
| Wheels - Option One | — |
| Ground Clearance | cm in |
| Max high speed | 2.7 km/h 1.7 mph |
|---|---|
| Track Width - Option One | 17.7 in (45 cm) |
| Tips | 2 tip options |
|---|---|
| Overband magnet | Optional |
| Dust suppression | Optional |
| Foldable rear hopper extension | Optional |

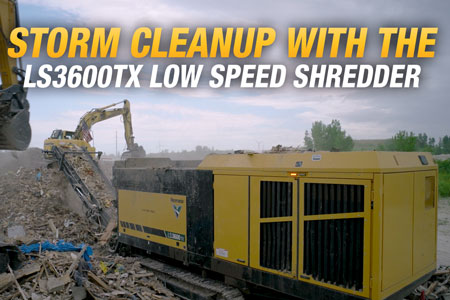

Video
