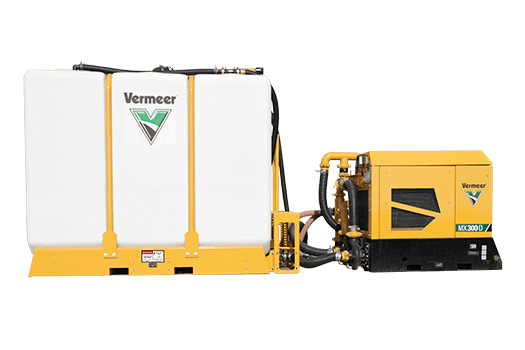

MX300D Mixing System
The MX300D mixing system is the ideal support equipment you need onsite for your horizontal directional drilling operations.
Vermeer
⤢ Mărește
Pe scurt
- Length
- 175.3 cm 69 in
Caracteristici & beneficii
- Arrange your set up to fit the job's needs
- Optional single or dual tank for more drilling fluid onsite
- Convenient access to roll jets for serviceability
- Create the right mix with a suction hose and wide-mouth hopper
- Pairs with a variety of HDDs
Broșuri & fișe tehnice
Date tehnice
Specificații tehnice
| Gross Horsepower | 18.4 kw 24.7 hp |
|---|---|
| Fuel Capacity | 60.6 L 16 gal |
| Mixing Action | Venturi/recirculation |
|---|---|
| Integrated Mixing Hopper | Yes, rectangular steel |
| Straining System (Makeup Water) | Yes |
| Straining System (Outlet) | Yes |
| Length | 175.3 cm 69 in |
|---|---|
| Width | 142.2 cm 56 in |
| Height | 129.5 cm 51 in |
| Weight | 816.5 kg 1800 lbs |
| Diesel Engine Option | — |
| Diesel Engine Option Horsepower | kw hp |
| Gas Engine Option | — |
| Gas Engine Option Horsepower | kw hp |
| Engine | — |
| Gross Horsepower | kw hp |
| Fuel Capacity | L gal |
| Pump Type | — |
| Mixing Action | — |
| Integrated Mixing Hopper | — |
| Anti-Freeze Capacity | kw hp |
| Straining System (Makeup Water) | — |
| Straining System (Outlet) | — |
| Length | cm in |
|---|---|
| Width | cm in |
| Height | cm in |
| Weight | kg lbs |
| Mixing Jets | — |
| Length | cm in |
|---|---|
| Width | cm in |
| Height | cm in |
| Weight | kg lbs |
| Mixing Jets | — |
| Length | cm in |
|---|---|
| Width | cm in |
| Height | cm in |
| Weight | kg lbs |
| Mixing Jets | — |
| Length | 266.7 cm 105 in |
|---|---|
| Width | 101.6 cm 40 in |
| Height | 165.1 cm 65 in |
| Weight | kg lbs |
| Mixing Jets | Two sets of opposing eductors |
| Length | 266.7 cm 105 in |
|---|---|
| Width | 101.6 cm 40 in |
| Height | 208.3 cm 82 in |
| Weight | kg lbs |
| Mixing Jets | Two sets of opposing eductors |
| Length | cm in |
|---|---|
| Width | cm in |
| Height | cm in |
| Weight | kg lbs |
| Mixing Jets | — |
