High-Pressure Mud Pumps
Conform CE

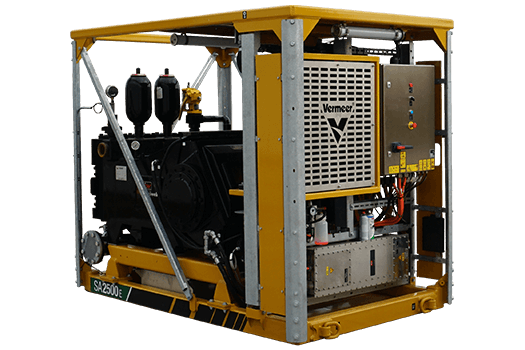

SA2500E High-Pressure Mud Pump
The first fully-electric high-pressure mud pump for Vermeer offers flexibility with a smaller footprint.
Vermeer
⤢ Mărește
Pe scurt
- Maximum Flow Rate at Maximum Efficiency
- L/min gpm
Caracteristici & beneficii
- Fully electric
- Up to 3.100 L/min at 60 bar
- Compactness and transportability
Broșuri & fișe tehnice
Date tehnice
Specificații tehnice
| Weight | 7080.1 kg 15609 lbs |
|---|---|
| Length | 2.7 m 8.9 ft |
| Width | 223 cm 87.8 in |
| Height | 174 cm 68.5 in |
| Drive Type | Electric |
|---|---|
| Drive Motor | Danfoss, EM-PMI540-T1500-2400-DUA |
| Voltage | 500 V AC |
| Maximum output | 339 kw 454.6 hp |
| Maximum power draw | 416 A |
| Make and Model | — |
|---|---|
| Position | — |
| EPA Certification Family | — |
| Fuel Type | — |
| Fuel Tank Capacity | L gal |
| Rated Power | kw hp |
| Rated Engine RPM | — — |
| Electrical System | — |
| Recommended power | 375 kVA, 400V AC 50Hz |
|---|
| Onboard | Control panel |
|---|---|
| Remote | Tethered control box reaches 82 ft (25 m) |
| Number of Gears | — — |
|---|---|
| Clutch | — |
| Belt | — |
| Gearbox make and model | Reggiana Riduttori, RVB 60 i=8 |
| Hydraulic Reservoir | — |
|---|---|
| Hydraulic Reservoir Capacity | L gal |
| Remote Lockout | Yes |
|---|
| System Type | Standalone, module frame, open skid |
|---|---|
| High Pressure Pump | Tecniwell TW2500 HDD, triplex piston pump |
| Piston Diameter | 17.8 cm 7 in |
| Optional Piston Diameter | From 6.5 in to 8 in (16.5 cm to 20.3 cm) |
| Minimum Flow Rate at Maximum Efficiency | L/min gpm |
| Maximum Flow Rate at Maximum Efficiency | L/min gpm |
| Maximum flow rate and pressure | 632.2 gpm (2,393 L/min) @ 1,160.3 psi (80 bar) |
| Relief Valve Setting | 80 bar 1160.3 psi |
| Power End Driver | — |
| Fluid End Power Driver | — |
| Pump Type | — |
| Compressor | — |
|---|---|
| Compressor Mounting Type | — |
| Air Tank Volume | L gal |
| Type | Water cooler |
|---|---|
| Cooling pump | Hydac WGK CM3-3/400-50 |
| Radiator | Hydac AC-LN 9L |
