Surface Miners
Conform CE

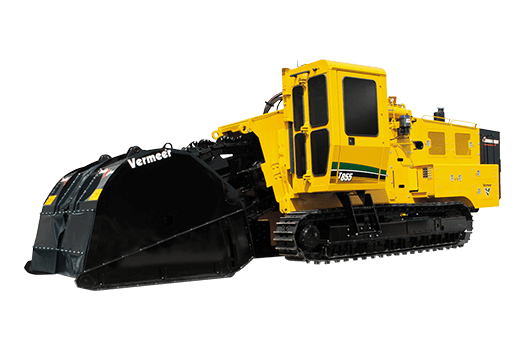

T1055III Surface Miner
Get the power you need to level surfaces on your construction or mining site with the Vermeer T1055III surface excavation machine.
Vermeer
⤢ Mărește
Pe scurt
- Gross Horsepower
- 309.5 kw 415 hp
Caracteristici & beneficii
- Ideal for large rock excavation applications including surface mining, overburden removal, site preparation and road demolition
- Equipped with a Caterpillar® C13 ACERT Tier 3 or Tier 4 Final electronic engine, giving you the power needed to level surfaces on your construction or mining site
- Pair this with a top-down cutting system to achieve greater rock penetration
Date tehnice
Specificații tehnice
| Approach Angle | — 16 deg |
|---|---|
| Height Range | 135 " (342.9 cm) |
| Length with 20" (50.8 cm) End Idler and 2 ft (0.61 m) Boom | m ft |
| Length with 20" (50.8 cm) End Idler and 4 ft (1.22 m) Boom | m ft |
| Length with 20" (50.8 cm) End Idler and 5 ft (1.52 m) Boom | m ft |
| Length with 20" (50.8 cm) End Idler and 6 ft (1.83 m) Boom | m ft |
| Length with 20" (50.8 cm) End Idler and 8 ft (2.44 m) Boom | m ft |
| Length with 20" (50.8 cm) End Idler and 10 ft (3.05 m) Boom | m ft |
| Length with 30" (76.2 cm) End Idler and 4 ft (1.22 m) Boom | m ft |
| Length with 30" (76.2 cm) End Idler and 5 ft (1.52 m) Boom | m ft |
| Length with 30" (76.2 cm) End Idler and 6 ft (1.83 m) Boom | m ft |
| Length with 40" (101.6 cm) End Idler and 4 ft (1.22 m) Boom | m ft |
| Length with 40" (101.6 cm) End Idler and 5 ft (1.52 m) Boom | m ft |
| Length with 40" (101.6 cm) End Idler and 6 ft (1.83 m) Boom | 9.8 m 32.2 ft |
| Length with 40" (101.6 cm) End Idler and 8 ft (2.44 m) Boom | 10.6 m 34.7 ft |
| Length with 40" (101.6 cm) End Idler and 10 ft (3.05 m) Boom | 11.3 m 37.2 ft |
| Length with 40" (101.6 cm) End Idler and 12 ft (3.66 m) Boom | 12.1 m 39.7 ft |
| Length with 40" (101.6 cm) End Idler and 14 ft (4.27 m) Boom (with Restraint Bar) | 12.5 m 41 ft |
| Length with 50" (127 cm) End Idler and 8 ft (2.44 m) Boom | 10.9 m 35.8 ft |
| Length with 50" (127 cm) End Idler and 10 ft (3.05 m) Boom | 11.7 m 38.3 ft |
| Length with 50" (127 cm) End Idler and 12 ft (3.66 m) Boom | 12.4 m 40.8 ft |
| Length with 50" (127 cm) End Idler and 14 ft (4.27 m) Boom (with Restraint Bar) | m ft |
| Length with 50" (127 cm) End Idler and 16 ft (4.88 m) Boom (with Restraint Bar) | m ft |
| Length with 50" (127 cm) End Idler and 18 ft (5.49 m) Boom (with Restraint Bar) | m ft |
| Length | cm in |
| Weight Range | 87,000 lbs - 124,000 lbs (39,463 kg - 56,245 kg) |
| Width Ranges | 116 " - 122 " (294.6 cm - 309.9 cm) |
| Make and Model | Caterpillar C13 ACERT Tier 3 |
|---|---|
| Gross Horsepower | 309.5 kw 415 hp |
| Rated Engine RPM | — 2100 |
| Number of Cylinders | — 6 |
| Fuel Tank Capacity | 757.1 L 200 gal |
| Operating Range | 9.58 hours |
| Fuel Consumption at Full Load | 79.1 lph 20.9 gph |
| Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) | — 35 deg |
| Air Cleaner | Dry-type exhaust aspirated |
| Aspiration | Turbocharged and air-to-air aftercooled |
| Cooling Medium | Liquid |
| Electrical System | 24 Volt DC |
| Oil Filter | Full flow |
| Horsepower at Maximum RPM (Gross) | kw hp |
| Make and Model | Caterpillar C13 ACERT Tier 4 Final |
|---|---|
| Gross Horsepower | 309.5 kw 415 hp |
| Rated Engine RPM | — 2100 |
| Number of Cylinders | — 6 |
| Fuel Tank Capacity | 757.1 L 200 gal |
| Operating Range | 9.39 hours |
| Fuel Consumption at Full Load | 80.6 lph 21.3 gph |
| Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) | — 35 deg |
| Air Cleaner | Dry-type with pre-cleaner |
| Aspiration | Turbocharged and air-to-air aftercooled |
| Cooling Medium | Liquid |
| Electrical System | 24 Volt DC |
| Oil Filter | Full flow |
| Maximum Horsepower at Maximum RPM (Gross) | kw hp |
| Auto Self Level | No |
|---|---|
| Ground Pressure Minimum | 64.8 kPa 9.4 psi |
| Ground Pressure Maximum | 95.8 kPa 13.9 psi |
| Tilt Track Available | No |
| Tilt Track Max Angle | — |
| Track Drive Type | Dual path hydrostatic with planetary transmission |
| Track Length | 447 cm 176 in |
| Track Pad Type | Single or double grouser |
| Track Pad Width Ranges | 24 " or 30 " (61 cm or 76.2 cm) |
| Track Size | D7G |
| Maximum Ground Speed - Low | 17.4 m/min 57.1 ft/min |
| Maximum Ground Speed - High | 34.8 m/min 114 ft/min |
| Parking and Emergency Brake | Spring applied, hydraulic release, wet disc brake |
| Service Brakes | Hydrostatic |
| Belt Width | cm in |
|---|---|
| Conveyor Belt Speed Range | — |
| Conveyor Belt Style | — |
| Conveyor Length | — |
| Conveyor Shift Available | — |
| Conveyor Shift Distance Range | — |
| Conveyor Style | — |
| Discharge Direction | — |
| Discharge Height Range | — |
| Trencher | Yes |
|---|---|
| Terrain Leveler | Yes |
| Terrain Leveler cutting width | cm in |
| Rockwheel | No |
| Bucket Wheel | No |
| Cab | Yes |
|---|---|
| Control System | TEC Plus |
| Air Conditioner/Heater | Yes |
| Air Suspension Seat | No |
| AM/FM Stereo with Weather Band | Yes |
| Elevating | Yes |
| Pressurized/Filtered Air | Yes |
| Rollover Protective Structure (ROPM) | Yes |
| Oil Tank Capacity | 575.4 L 152 gal |
|---|---|
| Oil Type | Vermeer HyPower 68 or Vermeer HyPower 100 |
| Pressure Setting | 172.4 bar 2500 psi |
| Pump Flow at Maximum RPM | 105.6 L/min 27.9 gpm |
| Pump Type | Pressure and flow compensated (load sensing) |
