Track Trenchers
Conform CE

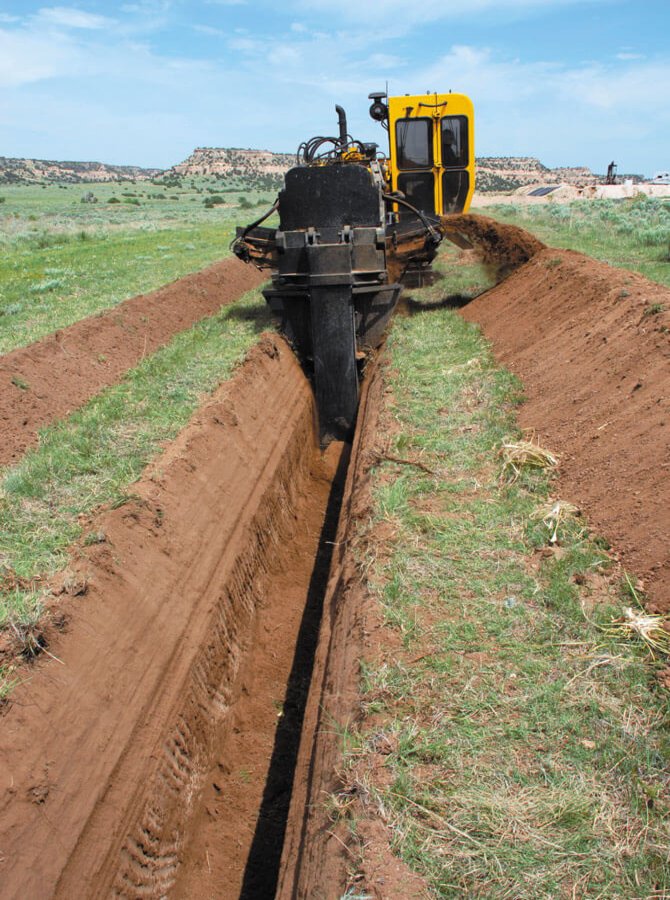

T655III Pipeline Trencher
Cut through tough ground conditions with optional trencher, rockwheel or bucket wheel attachment.
Vermeer
⤢ Mărește
Pe scurt
- Gross Horsepower
- 186.4 kw 250 hp
Caracteristici & beneficii
- Low-speed, high-torque splined headshaft motor improves cutting performance and minimizes chain wear
- Vermeer SmartTEC electronic control system monitors real-time machine performance
- The Tier 3 or Tier 4 Final John Deere® 6090 HF diesel engine provides the power to dig up to 8 ft (2.4 m) deep
Date tehnice
Specificații tehnice
| Approach Angle | — 16 deg |
|---|---|
| Height Range | 119" (302.3 cm) |
| Length with 20" (50.8 cm) End Idler and 2 ft (0.61 m) Boom | m ft |
| Length with 20" (50.8 cm) End Idler and 4 ft (1.22 m) Boom | 7.8 m 25.6 ft |
| Length with 20" (50.8 cm) End Idler and 5 ft (1.52 m) Boom | m ft |
| Length with 20" (50.8 cm) End Idler and 6 ft (1.83 m) Boom | 8.5 m 27.8 ft |
| Length with 20" (50.8 cm) End Idler and 8 ft (2.44 m) Boom | 9.2 m 30.1 ft |
| Length with 20" (50.8 cm) End Idler and 10 ft (3.05 m) Boom | m ft |
| Length with 30" (76.2 cm) End Idler and 4 ft (1.22 m) Boom | m ft |
| Length with 30" (76.2 cm) End Idler and 5 ft (1.52 m) Boom | m ft |
| Length with 30" (76.2 cm) End Idler and 6 ft (1.83 m) Boom | m ft |
| Length with 40" (101.6 cm) End Idler and 4 ft (1.22 m) Boom | 7.2 m 23.6 ft |
| Length with 40" (101.6 cm) End Idler and 5 ft (1.52 m) Boom | 7.7 m 25.3 ft |
| Length with 40" (101.6 cm) End Idler and 6 ft (1.83 m) Boom | 8 m 26.3 ft |
| Length with 40" (101.6 cm) End Idler and 8 ft (2.44 m) Boom | 8.7 m 28.5 ft |
| Length with 40" (101.6 cm) End Idler and 10 ft (3.05 m) Boom | m ft |
| Length with 40" (101.6 cm) End Idler and 12 ft (3.66 m) Boom | m ft |
| Length with 40" (101.6 cm) End Idler and 14 ft (4.27 m) Boom (with Restraint Bar) | m ft |
| Length with 50" (127 cm) End Idler and 8 ft (2.44 m) Boom | m ft |
| Length with 50" (127 cm) End Idler and 10 ft (3.05 m) Boom | m ft |
| Length with 50" (127 cm) End Idler and 12 ft (3.66 m) Boom | m ft |
| Length with 50" (127 cm) End Idler and 14 ft (4.27 m) Boom (with Restraint Bar) | m ft |
| Length with 50" (127 cm) End Idler and 16 ft (4.88 m) Boom (with Restraint Bar) | m ft |
| Length with 50" (127 cm) End Idler and 18 ft (5.49 m) Boom (with Restraint Bar) | m ft |
| Length | cm in |
| Weight Range | 40,000 lb - 59,500 lb (18,143.7 kg - 26988.7 kg) |
| Width Ranges | 97" (246.4 cm) |
| Make and Model | John Deere 6090HFC09 Tier 4 Final |
|---|---|
| Gross Horsepower | 186.4 kw 250 hp |
| Rated Engine RPM | — 2200 |
| Number of Cylinders | — 6 |
| Fuel Tank Capacity | 511 L 135 gal |
| Operating Range | 11 hours |
| Fuel Consumption at Full Load | 45.8 lph 12.1 gph |
| Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) | — 30 deg |
| Air Cleaner | Dry-type with pre-cleaner |
| Aspiration | Turbocharged and air-to-air aftercooled |
| Cooling Medium | Liquid |
| Electrical System | 24 Volt DC |
| Oil Filter | Full flow |
| Horsepower at Maximum RPM (Gross) | kw hp |
| Make and Model | John Deere 6090HF Tier 3 |
|---|---|
| Gross Horsepower | 186.4 kw 250 hp |
| Rated Engine RPM | — 2200 |
| Number of Cylinders | — 6 |
| Fuel Tank Capacity | 511 L 135 gal |
| Operating Range | 11 hrs |
| Fuel Consumption at Full Load | 46.6 lph 12.3 gph |
| Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) | — 30 deg |
| Air Cleaner | Dry-type with pre-cleaner |
| Aspiration | Turbocharged and air-to-air aftercooled |
| Cooling Medium | Liquid |
| Electrical System | 24 Volt DC |
| Oil Filter | Full flow |
| Maximum Horsepower at Maximum RPM (Gross) | kw hp |
| Auto Self Level | Yes |
|---|---|
| Ground Pressure Minimum | 53.8 kPa 7.8 psi |
| Ground Pressure Maximum | 66.9 kPa 9.7 psi |
| Tilt Track Available | Yes |
| Tilt Track Max Angle | 10.5 degrees |
| Track Drive Type | Dual path hydrostatic with planetary transmission |
| Track Length | 346.7 cm 136.5 in |
| Track Pad Type | Single, double or triple grouser |
| Track Pad Width Ranges | 20" (50.8 cm) |
| Track Size | D4 |
| Maximum Ground Speed - Low | 34.7 m/min 114 ft/min |
| Maximum Ground Speed - High | 69.2 m/min 227 ft/min |
| Parking and Emergency Brake | spring-applied, hydraulic release, wet disc brake |
| Service Brakes | Hydrostatic |
| Belt Width | 61 cm 24 in |
|---|---|
| Conveyor Belt Speed Range | 0-758 fpm (231 m/min) |
| Conveyor Belt Style | Cleated |
| Conveyor Length | 96" and 144" (243.8 cm and 365.8 cm) |
| Conveyor Shift Available | Yes |
| Conveyor Shift Distance Range | 12" and 48" (30.5 cm and 121.9 cm) |
| Conveyor Style | Flat or curved |
| Discharge Direction | Right or left |
| Discharge Height Range | 48" and 56" (121.9 and 142.2 cm) |
| Trencher | Yes |
|---|---|
| Terrain Leveler | No |
| Terrain Leveler cutting width | cm in |
| Rockwheel | Yes |
| Bucket Wheel | Yes |
| Cab | Yes |
|---|---|
| Control System | TEC Plus with SmartTEC |
| Air Conditioner/Heater | Yes |
| Air Suspension Seat | No |
| AM/FM Stereo with Weather Band | Yes |
| Elevating | No |
| Pressurized/Filtered Air | Yes |
| Rollover Protective Structure (ROPM) | No |
| Oil Tank Capacity | 321.8 L 85 gal |
|---|---|
| Oil Type | Vermeer HyPower 68 or Vermeer HyPower 100 |
| Pressure Setting | 172.4 bar 2500 psi |
| Pump Flow at Maximum RPM | 94.6 L/min 25 gpm |
| Pump Type | pressure-and-flow-compensated (load-sensing) |
