Track Trenchers Conform CE

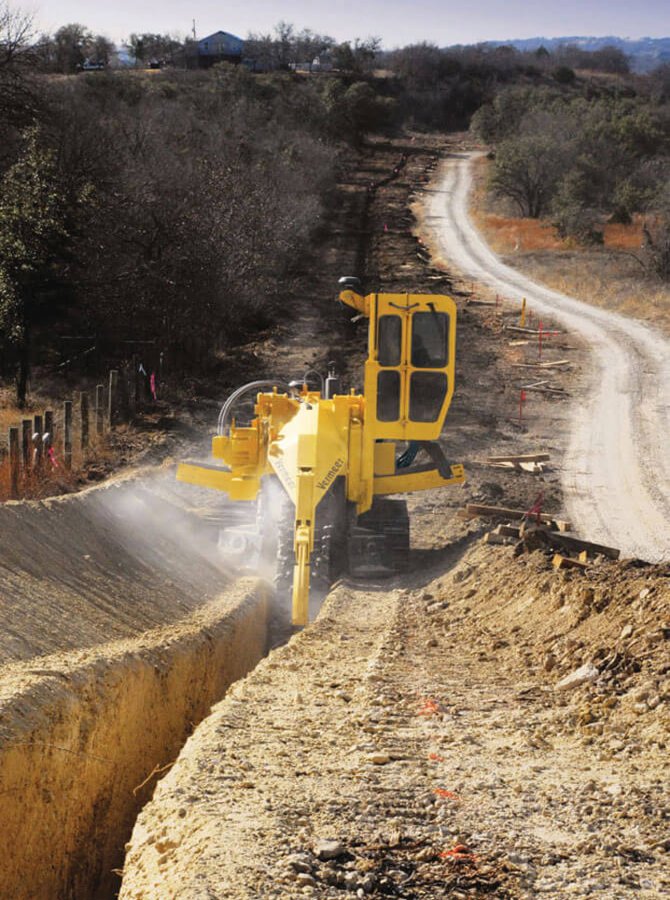

T755III Pipeline Trencher

When you’re digging in heavy rock conditions, stand firm with up to 60,000 lb (27,215.5 kg) of tractive force on the ground.

Cere ofertă

⤢ Mărește

Pe scurt

Gross Horsepower: 205.1 kw 275 hp

Caracteristici & beneficii

The T755 trencher will stand firm with up to 60,000 lb (27,215.5 kg) of tractive force on the ground
Match the optional sectionalized boom to the job for optimal results, minimal tooth wear and reduced vibrations
Vermeer SmartTEC electronic control system monitors real-time machine performance

Broșuri & fișe tehnice

Fleet-enabled Pipeline Trenchers PDF Descarcă T755III Spec Sheet PDF Descarcă Pipeline Trencher Lineup PDF Descarcă Full Function Remote Control PDF Descarcă Vermeer SmartTEC PDF Descarcă

Date tehnice

Specificații tehnice

Approach Angle	— 22 deg
Height Range	120" (304.8 cm)
Length with 20" (50.8 cm) End Idler and 2 ft (0.61 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 4 ft (1.22 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 5 ft (1.52 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 6 ft (1.83 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 8 ft (2.44 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 10 ft (3.05 m) Boom	m ft
Length with 30" (76.2 cm) End Idler and 4 ft (1.22 m) Boom	m ft
Length with 30" (76.2 cm) End Idler and 5 ft (1.52 m) Boom	m ft
Length with 30" (76.2 cm) End Idler and 6 ft (1.83 m) Boom	m ft
Length with 40" (101.6 cm) End Idler and 4 ft (1.22 m) Boom	m ft
Length with 40" (101.6 cm) End Idler and 5 ft (1.52 m) Boom	8.5 m 28 ft
Length with 40" (101.6 cm) End Idler and 6 ft (1.83 m) Boom	8.9 m 29.1 ft
Length with 40" (101.6 cm) End Idler and 8 ft (2.44 m) Boom	9.5 m 31.3 ft
Length with 40" (101.6 cm) End Idler and 10 ft (3.05 m) Boom	10.2 m 33.6 ft
Length with 40" (101.6 cm) End Idler and 12 ft (3.66 m) Boom	m ft
Length with 40" (101.6 cm) End Idler and 14 ft (4.27 m) Boom (with Restraint Bar)	m ft
Length with 50" (127 cm) End Idler and 8 ft (2.44 m) Boom	m ft
Length with 50" (127 cm) End Idler and 10 ft (3.05 m) Boom	m ft
Length with 50" (127 cm) End Idler and 12 ft (3.66 m) Boom	m ft
Length with 50" (127 cm) End Idler and 14 ft (4.27 m) Boom (with Restraint Bar)	m ft
Length with 50" (127 cm) End Idler and 16 ft (4.88 m) Boom (with Restraint Bar)	m ft
Length with 50" (127 cm) End Idler and 18 ft (5.49 m) Boom (with Restraint Bar)	m ft
Length	cm in
Weight Range	49,000 lb - 75,000 lb (22,226 kg - 34,019.4 kg)
Width Ranges	98" - 102" (249.4 cm - 259.1 cm)

Make and Model	Caterpillar C9 ACERT Tier 3
Gross Horsepower	205.1 kw 275 hp
Rated Engine RPM	— 2200
Number of Cylinders	— 6
Fuel Tank Capacity	548.9 L 145 gal
Operating Range	9.9
Fuel Consumption at Full Load	55.6 lph 14.7 gph
Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles)	— 40 deg
Air Cleaner	Dry-type exhaust aspirated
Aspiration	Turbocharged and air-to-air aftercooled
Cooling Medium	Liquid
Electrical System	24 Volt DC
Oil Filter	Full flow
Horsepower at Maximum RPM (Gross)	kw hp

Make and Model	John Deere 6090HFC09 Tier 4 Final
Gross Horsepower	205.1 kw 275 hp
Rated Engine RPM	— 2200
Number of Cylinders	— 6
Fuel Tank Capacity	548.9 L 145 gal
Operating Range	11.0
Fuel Consumption at Full Load	50 lph 13.2 gph
Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles)	— 30 deg
Air Cleaner	Dry-type with precleaner
Aspiration	Turbocharged and air-to-air aftercooled
Cooling Medium	Liquid
Electrical System	24 Volt DC
Oil Filter	Full flow
Maximum Horsepower at Maximum RPM (Gross)	kw hp

Auto Self Level	Yes
Ground Pressure Minimum	61.4 kPa 8.9 psi
Ground Pressure Maximum	86.2 kPa 12.5 psi
Tilt Track Available	Yes
Tilt Track Max Angle	12 degrees
Track Drive Type	Dual path hydrostatic with planetary transmission
Track Length	360.7 cm 142 in
Track Pad Type	Single, double, triple and polyurethane grouser
Track Pad Width Ranges	20" or 24" (50.8 cm or 61 cm)
Track Size	D5
Maximum Ground Speed - Low	26 m/min 85.2 ft/min
Maximum Ground Speed - High	51.8 m/min 170 ft/min
Parking and Emergency Brake	spring-applied, hydraulic release, wet disc brake
Service Brakes	Hydrostatic

Belt Width	61 cm 24 in
Conveyor Belt Speed Range	0-1118 fpm (0-340.76 m/min)
Conveyor Belt Style	Cleated or finger type
Conveyor Length	96" or 144" (243.8 cm or 365.8 cm)
Conveyor Shift Available	Yes
Conveyor Shift Distance Range	14" and 66" (35.6 cm and 167.6 cm)
Conveyor Style	Curved
Discharge Direction	Right or left
Discharge Height Range	55" and 68" (139.7 cm and 172.7 cm)

Trencher	Yes
Terrain Leveler	No
Terrain Leveler cutting width	cm in
Rockwheel	No
Bucket Wheel	No

Cab	Yes
Control System	TEC Plus with SmartTEC
Air Conditioner/Heater	Yes
Air Suspension Seat	No
AM/FM Stereo with Weather Band	Yes
Elevating	Yes
Pressurized/Filtered Air	Yes
Rollover Protective Structure (ROPM)	Yes

Oil Tank Capacity	431.5 L 114 gal
Oil Type	Vermeer HyPower 68 or Vermeer HyPower 100
Pressure Setting	172.4 bar 2500 psi
Pump Flow at Maximum RPM	95 L/min 25.1 gpm
Pump Type	pressure-and-flow-compensated (load-sensing)
