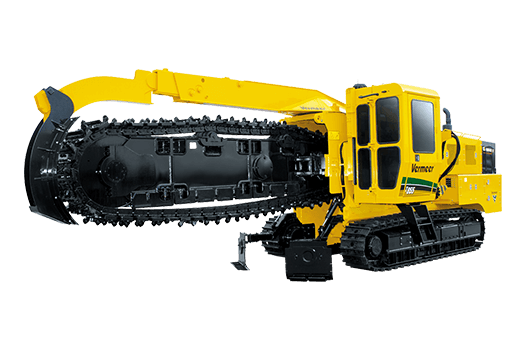

T855III Pipeline Trencher

A tough machine, built to last.

Cere ofertă

⤢ Mărește

Pe scurt

Gross Horsepower: 261 kw 350 hp

Caracteristici & beneficii

Designed specifically for 6-ft to 12-ft (1.8-m to 3.7-m) rock trenching jobs, the T855III is a great choice for utility, water and sewer installation
Match the optional sectionalized boom to the job for optimal results, minimal tooth wear and reduced vibrations
Vermeer SmartTEC electronic control system monitors real-time machine performance

Broșuri & fișe tehnice

Fleet-enabled Pipeline Trenchers PDF Descarcă T855III Spec Sheet PDF Descarcă Pipeline Trencher Lineup PDF Descarcă Full Function Remote Control PDF Descarcă Vermeer SmartTEC PDF Descarcă

Date tehnice

Specificații tehnice

Approach Angle	— 20 deg
Height Range	131 " - 143 " (332.7 cm - 363.2 cm) (143 "/363.2 cm represents the height with Rockwheel attachment)
Length with 20" (50.8 cm) End Idler and 2 ft (0.61 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 4 ft (1.22 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 5 ft (1.52 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 6 ft (1.83 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 8 ft (2.44 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 10 ft (3.05 m) Boom	m ft
Length with 30" (76.2 cm) End Idler and 4 ft (1.22 m) Boom	m ft
Length with 30" (76.2 cm) End Idler and 5 ft (1.52 m) Boom	m ft
Length with 30" (76.2 cm) End Idler and 6 ft (1.83 m) Boom	m ft
Length with 40" (101.6 cm) End Idler and 4 ft (1.22 m) Boom	m ft
Length with 40" (101.6 cm) End Idler and 5 ft (1.52 m) Boom	m ft
Length with 40" (101.6 cm) End Idler and 6 ft (1.83 m) Boom	10 m 32.8 ft
Length with 40" (101.6 cm) End Idler and 8 ft (2.44 m) Boom	10.8 m 35.3 ft
Length with 40" (101.6 cm) End Idler and 10 ft (3.05 m) Boom	11.5 m 37.8 ft
Length with 40" (101.6 cm) End Idler and 12 ft (3.66 m) Boom	12.3 m 40.3 ft
Length with 40" (101.6 cm) End Idler and 14 ft (4.27 m) Boom (with Restraint Bar)	m ft
Length with 50" (127 cm) End Idler and 8 ft (2.44 m) Boom	m ft
Length with 50" (127 cm) End Idler and 10 ft (3.05 m) Boom	m ft
Length with 50" (127 cm) End Idler and 12 ft (3.66 m) Boom	m ft
Length with 50" (127 cm) End Idler and 14 ft (4.27 m) Boom (with Restraint Bar)	m ft
Length with 50" (127 cm) End Idler and 16 ft (4.88 m) Boom (with Restraint Bar)	m ft
Length with 50" (127 cm) End Idler and 18 ft (5.49 m) Boom (with Restraint Bar)	m ft
Length	cm in
Weight Range	65,500 lbs to 94,000 lbs (29,483 kg - 42,637 kg)
Width Ranges	101 " - 104 " (256.5 cm - 264.2 cm)

Make and Model	Caterpillar C9 ACERT Tier 3
Gross Horsepower	261 kw 350 hp
Rated Engine RPM	— 2200
Number of Cylinders	— 6
Fuel Tank Capacity	651.1 L 172 gal
Operating Range	9.4 hours
Fuel Consumption at Full Load	69.3 lph 18.3 gph
Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles)	— 40 deg
Air Cleaner	Dry-type exhaust aspirated
Aspiration	Turbocharged and air-to-air aftercooled
Cooling Medium	Liquid
Electrical System	24 Volt DC
Oil Filter	Full flow
Horsepower at Maximum RPM (Gross)	kw hp

Make and Model	Caterpillar C9 ACERT Tier 4 Final
Gross Horsepower	261 kw 350 hp
Rated Engine RPM	— 2200
Number of Cylinders	— 6
Fuel Tank Capacity	651.1 L 172 gal
Operating Range	9.4 hours
Fuel Consumption at Full Load	69.3 lph 18.3 gph
Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles)	— 40 deg
Air Cleaner	Dry-type with precleaner
Aspiration	Turbocharged and air-to-air aftercooled
Cooling Medium	Liquid
Electrical System	24 Volt DC
Oil Filter	Full flow
Maximum Horsepower at Maximum RPM (Gross)	kw hp

Auto Self Level	Yes
Ground Pressure Minimum	75.8 kPa 11 psi
Ground Pressure Maximum	113.1 kPa 16.4 psi
Tilt Track Available	Yes
Tilt Track Max Angle	+/- 9 degrees or +/- 12 inches
Track Drive Type	tDual path hydrosatic with planetary transmission
Track Length	373.4 cm 147 in
Track Pad Type	Single, double, or triple grouser
Track Pad Width Ranges	20 " or 24 " (50.8 or 61 cm)
Track Size	D6
Maximum Ground Speed - Low	32.4 m/min 106.3 ft/min
Maximum Ground Speed - High	64.9 m/min 213 ft/min
Parking and Emergency Brake	Spring applied, hydraulic release, wet disc brake
Service Brakes	Hydrostatic

Belt Width	76.2 cm 30 in
Conveyor Belt Speed Range	0 - 917 fpm (0-279.5 mpm)
Conveyor Belt Style	Cleat or finger type
Conveyor Length	96 " or 156 " (243.8 cm or 396.2 cm)
Conveyor Shift Available	Yes
Conveyor Shift Distance Range	1.5 " and 61.5 " (3.8 cm and 156.2 cm)
Conveyor Style	Curved
Discharge Direction	Right or left
Discharge Height Range	72.5 " (184.2 cm)

Trencher	Yes
Terrain Leveler	Yes
Terrain Leveler cutting width	cm in
Rockwheel	Yes
Bucket Wheel	No

Cab	Yes
Control System	TEC Plus
Air Conditioner/Heater	Yes
Air Suspension Seat	No
AM/FM Stereo with Weather Band	Yes
Elevating	Yes
Pressurized/Filtered Air	Yes
Rollover Protective Structure (ROPM)	Yes

Oil Tank Capacity	548.9 L 145 gal
Oil Type	Vermeer HyPower 68 or Vermeer HyPower 100
Pressure Setting	172.4 bar 2500 psi
Pump Flow at Maximum RPM	114.5 L/min 30.2 gpm
Pump Type	Pressure and flow compensated (load sensing)
