Track Trenchers Conform CE

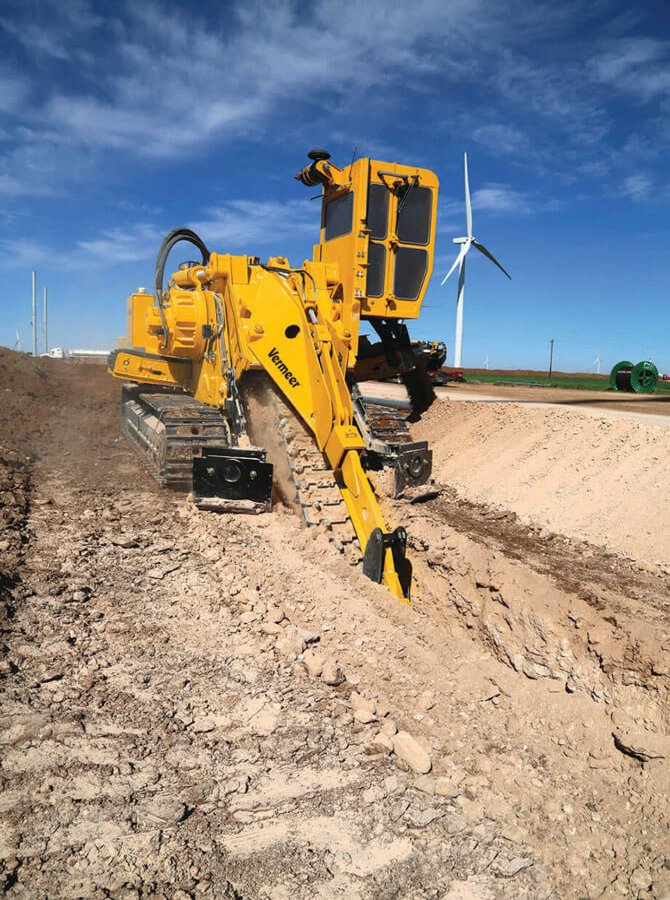

T955III Pipeline Trencher

Cut through the most difficult rock trenching conditions around.

Cere ofertă

⤢ Mărește

Pe scurt

Gross Horsepower: 309.5 kw 415 hp

Caracteristici & beneficii

To help you cut through the most difficult rock trenching conditions around, Vermeer offers the T955 trencher
When you encounter tough trench digging conditions, the engine speed drops, increasing the torque for more power to pull through
With a rugged D6 track chain and a sectionalized trencher boom allowing customized trench depths, the T955III also brings heavy equipment strength and versatility to your construction site

Broșuri & fișe tehnice

Fleet-enabled Pipeline Trenchers PDF Descarcă T955III Spec Sheet PDF Descarcă Pipeline Trencher Lineup PDF Descarcă Full Function Remote Control PDF Descarcă Vermeer SmartTEC PDF Descarcă

Date tehnice

Specificații tehnice

Approach Angle	— 16 deg
Height Range	133" (337.8 cm)
Length with 20" (50.8 cm) End Idler and 2 ft (0.61 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 4 ft (1.22 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 5 ft (1.52 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 6 ft (1.83 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 8 ft (2.44 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 10 ft (3.05 m) Boom	m ft
Length with 30" (76.2 cm) End Idler and 4 ft (1.22 m) Boom	m ft
Length with 30" (76.2 cm) End Idler and 5 ft (1.52 m) Boom	m ft
Length with 30" (76.2 cm) End Idler and 6 ft (1.83 m) Boom	m ft
Length with 40" (101.6 cm) End Idler and 4 ft (1.22 m) Boom	m ft
Length with 40" (101.6 cm) End Idler and 5 ft (1.52 m) Boom	m ft
Length with 40" (101.6 cm) End Idler and 6 ft (1.83 m) Boom	9.8 m 32.2 ft
Length with 40" (101.6 cm) End Idler and 8 ft (2.44 m) Boom	10.6 m 34.7 ft
Length with 40" (101.6 cm) End Idler and 10 ft (3.05 m) Boom	11.3 m 37.2 ft
Length with 40" (101.6 cm) End Idler and 12 ft (3.66 m) Boom	12.1 m 39.7 ft
Length with 40" (101.6 cm) End Idler and 14 ft (4.27 m) Boom (with Restraint Bar)	m ft
Length with 50" (127 cm) End Idler and 8 ft (2.44 m) Boom	m ft
Length with 50" (127 cm) End Idler and 10 ft (3.05 m) Boom	m ft
Length with 50" (127 cm) End Idler and 12 ft (3.66 m) Boom	m ft
Length with 50" (127 cm) End Idler and 14 ft (4.27 m) Boom (with Restraint Bar)	m ft
Length with 50" (127 cm) End Idler and 16 ft (4.88 m) Boom (with Restraint Bar)	m ft
Length with 50" (127 cm) End Idler and 18 ft (5.49 m) Boom (with Restraint Bar)	m ft
Length	cm in
Weight Range	78,000 lb - 109,000 lb (35,380.2 kg - 49,441.6 kg)
Width Ranges	114" (289.6 cm)

Make and Model	Caterpillar C13 ACERT Tier 3
Gross Horsepower	309.5 kw 415 hp
Rated Engine RPM	— 2100
Number of Cylinders	— 6
Fuel Tank Capacity	696.5 L 184 gal
Operating Range	8.8 hours
Fuel Consumption at Full Load	79.1 lph 20.9 gph
Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles)	— 35 deg
Air Cleaner	Dry-type exhaust aspirated
Aspiration	Turbocharged and air-to-air aftercooled
Cooling Medium	Liquid
Electrical System	24 Volt DC
Oil Filter	Full flow
Horsepower at Maximum RPM (Gross)	kw hp

Make and Model	Caterpillar C13 ACERT Tier 4 Final
Gross Horsepower	309.5 kw 415 hp
Rated Engine RPM	— 2100
Number of Cylinders	— 6
Fuel Tank Capacity	696.5 L 184 gal
Operating Range	8.6 hours
Fuel Consumption at Full Load	80.6 lph 21.3 gph
Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles)	— 35 deg
Air Cleaner	Dry-type with precleaner
Aspiration	Turbocharged and air-to-air aftercooled
Cooling Medium	Liquid
Electrical System	24 Volt DC
Oil Filter	Full flow
Maximum Horsepower at Maximum RPM (Gross)	kw hp

Auto Self Level	No
Ground Pressure Minimum	80.7 kPa 11.7 psi
Ground Pressure Maximum	91.7 kPa 13.3 psi
Tilt Track Available	No
Tilt Track Max Angle	—
Track Drive Type	Dual path hydrostatic with planetary transmission
Track Length	408.9 cm 161 in
Track Pad Type	Single, double or triple grouser
Track Pad Width Ranges	24" (61 cm)
Track Size	D6
Maximum Ground Speed - Low	20.7 m/min 68 ft/min
Maximum Ground Speed - High	41.5 m/min 136 ft/min
Parking and Emergency Brake	spring-applied, hydraulic release, wet disc brake
Service Brakes	Hydrostatic

Belt Width	76.2 cm 30 in
Conveyor Belt Speed Range	0-1070 fpm (0-326 m/min)
Conveyor Belt Style	Cleat or finger type
Conveyor Length	108" or 168" (274.3 cm or 426.7 cm)
Conveyor Shift Available	Yes
Conveyor Shift Distance Range	5" or 65" (12.7 cm or 165.1 cm)
Conveyor Style	Curved
Discharge Direction	Right or left
Discharge Height Range	62" - 76" (157 cm - 193 cm)

Trencher	Yes
Terrain Leveler	Yes
Terrain Leveler cutting width	cm in
Rockwheel	No
Bucket Wheel	No

Cab	Yes
Control System	TEC Plus with SmartTEC
Air Conditioner/Heater	Yes
Air Suspension Seat	No
AM/FM Stereo with Weather Band	Yes
Elevating	Yes
Pressurized/Filtered Air	Yes
Rollover Protective Structure (ROPM)	Yes

Oil Tank Capacity	575.4 L 152 gal
Oil Type	Vermeer HyPower 68 or Vermeer HyPower 100
Pressure Setting	172.4 bar 2500 psi
Pump Flow at Maximum RPM	105.6 L/min 27.9 gpm
Pump Type	pressure-and-flow-compensated (load-sensing)
