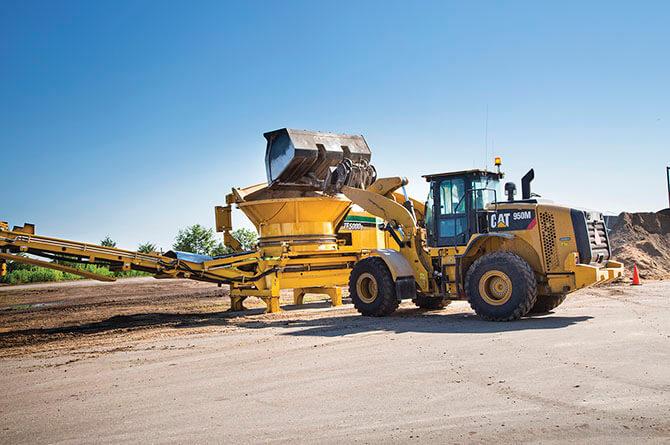

TG5000E Tub Grinder
As your stationary operation looks to electric-power, Vermeer is your partner for the equipment expertise you need.
Vermeer
⤢ Mărește
Pe scurt
- Gross Horsepower (Maximum)
- kw hp
Caracteristici & beneficii
- Efficiency in a stationary electric tub grinder
- Robust build quality for confident longevity
- Equipped with Vermeer innovations to help protect your investment and optimize efficiency
Date tehnice
Specificații tehnice
| Maximum Length - Transport | 8.9 m 29.3 ft |
|---|---|
| Maximum Length - Conveyor Unfolded | 15.6 m 51.3 ft |
| Maximum Width (Transport) | 2.5 m 8.4 ft |
| Maximum Height (Transport) | 3.6 m 11.8 ft |
| Maximum Height (Transport) | cm in |
| Weight - Engine Option One | 19087.2 kg 42080 lbs |
| Weight - Tandem Axle | kg lbs |
| Weight - Triple Axle | kg lbs |
| Weight - Engine Option Two | kg lbs |
| Tongue Weight - Engine Option One | kg lbs |
| King pin weight - Engine option one | kg lbs |
| Axle Weight | kg lbs |
| Axle Weight - Option Two | kg lbs |
| Sound Power | — |
| Sound Power - Engine Option Two | — |
| Maximum Length - Transport | m ft |
|---|---|
| Maximum Length - Conveyor Unfolded | m ft |
| Maximum Reach of Loader | m ft |
| Maximum Width (Transport) | m ft |
| Maximum Height (Transport) | cm in |
| Maximum Height (Transport) | m ft |
| Maximum Height - Cab in Operating Position | m ft |
| Weight - Engine Option One | kg lbs |
| Weight - Engine Option Two | kg lbs |
| Axle Weight - Option Two | kg lbs |
| Sound Power | — |
| Sound Power - Engine Option Two | — |
| Make and Model | — |
|---|---|
| Number of Cylinders | — — |
| Gross Horsepower (Maximum) | kw hp |
| Torque (Max) | Nm ft-lb |
| Fuel Tank Capacity | L gal |
| Max Fuel Consumption | lph gph |
| Clutch Type | — |
| Make and Model | — |
|---|---|
| Number of Cylinders | — — |
| Gross Horsepower (Maximum) | kw hp |
| Torque (Max) | Nm ft-lb |
| Fuel Tank Capacity | L gal |
| Max Fuel Consumption | lph gph |
| Maximum Angle of Continuous Operation | — deg |
| Clutch Type | — |
| Clutch Engagement | — |
| Make and Model | WEG W22 |
|---|---|
| Gross Horsepower (Maximum) | 372.8 kw 500 hp |
| Torque (Max) | 1967.3 Nm 1451 ft-lb |
| Cooling Medium | Air |
| Torque Limiter | PT Tech - Continuously engaged, friction type |
| Manufacturer | Weg W22 |
|---|---|
| Frame | NEMA 145T |
| Horsepower | 1.5 kw 2 hp |
| Voltage | 460 |
| Frequency | 60 |
| Phase | 3 |
| Rated Speed | — 1750 rpm |
| Enclosure | TEFC |
| Full Load Amps | 2.61 |
| Manufacturer | Weg W22 |
|---|---|
| Frame | NEMA 364/5TS |
| Horsepower | 44.7 kw 60 hp |
| Voltage | 460 |
| Frequency | 60 |
| Phase | 3 |
| Rated Speed | — 1775 rpm |
| Enclosure | TEFC |
| Full Load Amps | 68.3 |
| Manufacturer | — |
|---|---|
| Frame | — |
| Horsepower | kw hp |
| Voltage | — |
| Frequency | — |
| Phase | — |
| Rated Speed | — rpm |
| Enclosure | — |
| Full Load Amps | — |
| Manufacturer | Weg W22 |
|---|---|
| Frame | NEMA L447/9T |
| Horsepower | 372.8 kw 500 hp |
| Voltage | 460 |
| Frequency | 60 |
| Phase | 3 |
| Rated Speed | — 1785 rpm |
| Enclosure | TEFC |
| Full Load Amps | 561 |
| Manufacturer | Weg W22 |
|---|---|
| Frame | NEMA 586/7T |
| Horsepower | 372.8 kw 500 hp |
| Voltage | 460 |
| Frequency | 60 |
| Phase | 3 |
| Rated Speed | — 1790 rpm |
| Enclosure | TEFC |
| Full Load Amps | 567 |
| Manufacturer | Weg W22 |
|---|---|
| Frame | IEC 90L |
| Horsepower | 1.5 kw 2 hp |
| Voltage | 380 |
| Frequency | 50 |
| Phase | 3 |
| Rated Speed | — 1445 rpm |
| Enclosure | TEFC |
| Full Load Amps | 3.21 |
| Manufacturer | Weg W22 |
|---|---|
| Frame | IEC 225S/M |
| Horsepower | 44.7 kw 60 hp |
| Voltage | 380 |
| Frequency | 50 |
| Phase | 3 |
| Rated Speed | — 1475 rpm |
| Enclosure | TEFC |
| Full Load Amps | 83.9 |
| Manufacturer | — |
|---|---|
| Frame | — |
| Horsepower | kw hp |
| Voltage | — |
| Frequency | — |
| Phase | — |
| Rated Speed | — rpm |
| Enclosure | — |
| Full Load Amps | — |
| Manufacturer | Weg W22 |
|---|---|
| Frame | IEC 355M/L |
| Horsepower | 372.8 kw 500 hp |
| Voltage | 380 |
| Frequency | 60 |
| Phase | 3 |
| Rated Speed | — 1790 rpm |
| Enclosure | TEFC |
| Full Load Amps | 688 |
| Tub Table Thickness | — |
|---|---|
| Table Tilt Degrees | — 91 deg |
| Millbox Opening | 24.2" x 47.9" (61.4 cm x 121.5 cm) |
| Inside Diameter of Tub | 2.4 m 8 ft |
| Inside Flare Diameter - At Tub Opening | 3.7 m 12.3 ft |
| Depth of Tub | 1.5 m 5 ft |
| Tub Capacity | 8.6 cu m 11.3 cu yd |
| Wall Thickness | .6 cm .3 in |
| Loading Height | 3.2 m 10.6 ft |
| Thrown Object Restraint System | Pivoting tub cover assembly |
|---|---|
| Tub Cover Description | Hydraulically activated |
| Tub Cover Positions | 2 |
| Drum Diameter | 57.2 cm 22.5 in |
|---|---|
| Tip Diameter | 72.6 cm 28.6 in |
| Drum Cutting Width | 116.8 cm 46 in |
| Drum Skin Thickness | 4.4 cm 1.8 in |
| Tip speed | — ft/min |
| Number of Hammers | 8 |
| Number of Cutters | 16 |
| Millbox Opening | — |
|---|---|
| Rotor Shaft Dimensions | — |
| Rotor Plate Dimension | — |
| Number of Rotor Plates | — |
| Number of Rods | — |
| Rod Dimensions | — |
| Tip Diameter | cm in |
| Rotor Cutting Length | cm in |
| Tip Speed | — rpm |
| Bearing Type | — |
| Bearing - Inner Race Diameter | cm in |
| Bearing - Dynamic Capacity | kg lbs |
| Number of Hammers | — |
| Number of Cutters | — |
| Cutter Block Types | — |
| Number of Wipers | — |
| Screen Weight | 181.4 kg 400 lbs |
|---|---|
| Screen Weight | — |
| Screen Dimensions | 49.5" x 28.5" x 14.9" (126 cm x 72.4 cm x 37.8 cm) |
| Screen Type | Fabricated from abrasion resistant steel (qty 2) |
| Breaker Bar Type | T1 steel, replaceable |
| Screen Area | 17509.6 sq cm 2714 sq in |
| Drive Shaft | — |
|---|---|
| Dimensions | — |
| U - Joints | — |
| Drive Shaft | — |
|---|---|
| Dimensions | — |
| U - Joints | — |
| Length | 7.3 m 24 ft |
|---|---|
| Width | 91.4 cm 36 in |
| Belt Design | One piece, 330# with V-cleat |
| Belt Design - heavy duty | — |
| Drive Motor Bearings | — |
| Load Height | 4.3 m 14 ft |
| Load Height | — |
| Conveyor Type - Belly | — |
|---|---|
| Conveyor Length - Belly | m ft |
| Conveyor Width - Belly | cm in |
| Belt Design - Belly | — |
| Splice - Belly | — |
| Return Roller Quantity - Belly | — |
| Idler Roller Diameter - Belly | cm in |
| Bearings - Belly | — |
| Drive Roller Diameter - Belly | cm in |
| Drive Motor - Belly | — |
| Drive Motor Bearings - Belly | — |
| Belt Speed - Belly | — |
| Conveyor Type - Load Out | — |
| Conveyor Length - Load Out | m ft |
| Conveyor Width - Load Out | cm in |
| Splice - Load Out | — |
| Return Roller Quantity - Load Out | — |
| Idler Roller Diameter - Load Out | cm in |
| Bearings - Load Out | — |
| Standard Drive Roller Diameter - Load Out | cm in |
| Magnetic Drive Roller Diameter - Load Out | cm in |
| Drive Motor - Load Out | — |
| Drive Motor Bearings - Load Out | — |
| Belt Speed - Load Out | — |
| Load Height | m ft |
| Swing Arc | — deg |
| Length | — |
|---|---|
| Belt width | — |
| Belt Design | — |
| Splice | — |
| Return Roller Quantity | — |
| Idler roller diameter | — |
| Idler Roller Bearing | — |
| Drive Roller Diameter | cm in |
| Magnetic Drive Roller Diameter | cm in |
| Drive Motor | — |
| Belt speed | — |
| Load Height | — |
| Swing arc | — |
| Tank capacity | 359.6 L 95 gal |
|---|---|
| Implement System Type | — |
| Tub Drive System Type | — |
| Tub Drive Pump Type | — |
| Stationary Controls | — |
|---|---|
| Radio Remote Control | — |
| System Type | — |
|---|---|
| Pump Type | — |
| Motor Series | — |
| Tank capacity | L gal |
|---|
| Motor Series | — |
|---|---|
| Filtration Method | — |
| Number of Coolers | — |
| System Voltage | 24 VDC |
|---|---|
| Battery | — |
| System Protection | Fused |
| Display Type | Analog hydraulic gauges, LCD multifunction |
|---|---|
| Engine Information | — |
| Machine Information | Yes |
| Display Type | LCD multifunction |
|---|---|
| Engine Information | Motor start/stop |
| Motor Information | Yes |
| Machine Information | Yes |
| Operating Range | 300' (91.4 m) |
| Display Type | — |
|---|---|
| Engine Information | — |
| Motor Information | — |
| Machine Information | — |
| Frame Description | Continuous I-beam |
|---|---|
| Tongue Description | — |
| Hitch Type | — |
| Fender Description | — |
| Brake Type | — |
| Trailer Light Type | — |
| Axle Type | — |
|---|---|
| Manufacturer - Option One | — |
| Capacity | kg lbs |
| Tires - Option One | — |
| Tires - Option Two | — |
| Axle Type | — |
|---|---|
| Manufacturer - Option One | — |
| Capacity | kg lbs |
| Tires - Option One | — |
| Tires - Option Two | — |
| Loader Reach | m ft |
|---|---|
| Pedestal/Cab Rotation | — deg |
| Loader Lift Capacity at Full Reach | kg lbs |
| Loader Lift Capacity at 10 ' (3.05 m) | kg lbs |
| Grapple Type | — |
| Grapple Rotation | — deg |
| Loader Controls | — |
| Maximum Loader Reach | m ft |
|---|---|
| Loader Lift Capacity at Full Reach | kg lbs |
| Loader Lift Capacity at 10 ' (3.05 m) | kg lbs |
| Grapple Type | — |
| Grapple Rotation | — deg |
| Track Frame Description | — |
|---|---|
| Track Type | — |
| Type of Idler | — |
| Number of Idlers | — — |
| Track Drive Pump Type | — |
| Pump Flow at Maximum RPM | — |
| System Relief Pressure | — |
| Track Drive Motor Type | — |
| Track Brake Type | — |
| High Speed Travel | km/h mph |
| Low Speed Travel | km/h mph |
| Track Length on Ground | — |
| Track Width - Option One | — |
| Track Width Option One - Ground Bearing Pressure - Soft Ground | kPa psi |
| Track Width Option One - Ground Bearing Pressure - Hard Ground | kPa psi |
| Track Width - Option Two | — |
| Track Width Option Two - Ground Bearing Pressure - Option | kPa psi |
| Track Width Option Two - Ground Bearing Pressure - Option Two | kPa psi |
| Air Compressor Brand | — |
|---|---|
| Engine | — |
| Maximum Pressure | bar psi |
| Maximum Air Flow | cmm cfm |
| Tank capacity | L gal |
| Screens | Optional |
|---|---|
| Special Tools Group | Optional |
| Special Paint | Optional |
| Extended Warranty | Optional |
| Preventative Maintenance | Optional |
