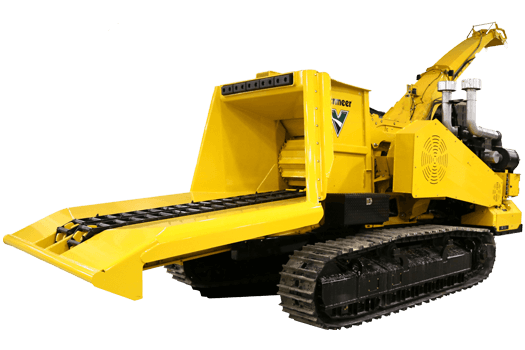

WC2500TX Whole Tree Chipper
Tracked undercarriage allows you to maneuver in the woods and tough land-clearing sites.
Vermeer
⤢ Mărește
Pe scurt
- Weight - Engine Option Two
- 21999.2 kg 48500 lbs
Caracteristici & beneficii
- Enhanced maneuverability wherever the job may take you
- Productivity and versatility to complete the job
- User-friendly operation for confidence on the job
Broșuri & fișe tehnice
Date tehnice
Specificații tehnice
| Maximum Length (Operation) | 8.7 m 28.4 ft |
|---|---|
| Maximum Length - Transport | 8 m 26.1 ft |
| Maximum Width (Transport) | 299.7 cm 118 in |
| Maximum Height (Transport) | 3.5 m 11.6 ft |
| Weight | kg lbs |
| Weight - Engine Option Two | 21999.2 kg 48500 lbs |
| Tongue Weight | kg lbs |
| Tongue Weight - Engine Option Two | kg lbs |
| Sound Power | 122 |
| Sound Power - Engine Option Two | — |
| Make and Model | Cummins QSX15 Tier 4 Final |
|---|---|
| Number of Cylinders | — 6 |
| Gross Horsepower (Maximum) | 447.4 kw 600 hp |
| Torque (Max) | 2779.4 Nm 2050 ft-lb |
| Fuel Tank Capacity | 757.1 L 200 gal |
| Max Fuel Consumption | 117.3 lph 31 gph |
| Fuel Type | Ultra-low sulfur diesel |
| Air Cleaner | Two-stage direct flow |
| Oil Filter | Spin-on |
| Recommended Oil | CES 20078 or 20081 |
| Oil Volume with Filter | 49.2 L 52 qt |
| Maximum Angle of Continuous Operation | — 45 deg |
| Cooling Medium | Liquid |
| Coolant Capacity (Engine and Radiator) | 87.1 L 23 gal |
| Alternator | 105 |
| Fan | Reversible |
| Clutch Type | PT Tech electronically controlled dry |
| Clutch Drive Engagement | Hydraulic |
| Make and Model | Cummins QSX15 Tier 3 |
|---|---|
| Number of Cylinders | — 6 |
| Gross Horsepower (Maximum) | 447.4 kw 600 hp |
| Torque (Maximum) | 2542.2 Nm 1875 ft-lb |
| Fuel Tank Capacity | 757.1 L 200 gal |
| Max Fuel Consumption | 117.3 lph 31 gph |
| Fuel Type | Ultra-low sulfur diesel |
| Air Cleaner | Two-stage direct flow |
| Oil Filter | Spin-on |
| Recommended Oil | CES 20078 or 20081 |
| Oil Volume with Filter | 49.2 L 52 qt |
| Maximum Angle of Continuous Operation | — 45 deg |
| Cooling Medium | Liquid |
| Coolant Capacity (Engine and Radiator) | 87.1 L 23 gal |
| Alternator | 100 |
| Fan | Reversible |
| Clutch Type | PT Tech electronically controlled dry |
| Clutch Drive Engagement | Hydraulic |
| Material Capacity | 63.5 cm 25 in |
|---|---|
| Thickness | 1.3 cm .5 in |
| Width | 86.4 cm 34 in |
| Diameter | 91.4 cm 36 in |
| Speed | 1169 rpm |
| Weight With Shaft | 1434.7 kg 3163 lbs |
| Safety Lock - Number of Positions | 2 to 4 |
| Number of Knives | — — |
| Type | Adjustable |
| Knife Thickness | 1.6 cm .6 in |
| Material | A8 chipper steel |
| Useable Edges | 1 |
| Knife Size | 8.5 or 17 |
| Number of Bolts/Knife | 4 or 5 |
| Replaceable Threaded Knife Block | Hex nut |
| Number of Paddles | — |
| Fixture Method | Bolt |
| Air Flow | — cfm |
| Bedknife Size | 34" wide |
| Bedknife Thickness | 3.8 cm 1.5 in |
| Bedknife Material | Cold-formed low-carbon bar |
| Bedknife - Number of Useable Edges | 2 |
| Number of Pockets | 2 or 4 |
| Dimension of Pockets | cm in |
| Replaceable Wear Plates | Yes |
| Number of Replaceable Wear Plates | 8 |
| Number of Bearings | — 2 |
|---|---|
| Bore | 13.8 cm 5.4 in |
| Type | Pillow block |
| Manufacturer | Dodge |
| Dynamic Capacity | 75296.3 kg 166000 lbs |
| Static Capacity | 107047.8 kg 236000 lbs |
| Belt Idler/Tensioner | Slide engine |
| Belt Type | 12 rib 5 V |
| Number of Bearings | — — |
|---|---|
| Bore | cm in |
| Type | — |
| Manufacturer | — |
| Dynamic Capacity | kg lbs |
| Static Capacity | kg lbs |
| Belt Idler/Tensioner | — |
| Belt Type | — |
| Infeed Roller Length | cm in |
|---|---|
| Infeed Roller Width | 86.4 cm 34 in |
| Maximum Feed Height | 68.6 cm 27 in |
| Infeed Roller Weight | 260.8 kg 575 lbs |
| Infeed Roller Diameter | 71.1 cm 28 in |
| Material Type | — |
| Tooth Design | Straight knives |
| Number of Teeth | — |
| Drive Motor | WS-series |
| Drive Planetary | Auburn Model 9 |
| Drive Displacement | 113.1 cu-cm 6.9 cu-in |
| Drive Manufacturer | White |
| Pinch Point - Distance to End of Feed Table | cm in |
| Feed Roller Down Pressure | 1530 |
| Feed Roller Orientation | Horizontal |
| Number of Feed Rollers | One upper, one conveyor |
| Number of Knives | — 12 |
| Feed Roller Distance to Drum | 2.5 cm 1 in |
| Feed Roller Speed | 29.9 m/min 98 ft/min |
| Chute Height | 335.3 cm 132 in |
|---|---|
| Bottom Thickness | .3 cm .1 in |
| Bottom Replaceable Wear Plate | AR 400 |
| Wear Plate Thickness | .5 cm .2 in |
| Top Thickness | .5 cm .2 in |
| Side Wall Thickness | .5 cm .2 in |
| Deflector Thickness | .5 cm .2 in |
| Rotation Type | Hydraulic |
| Rotational Lock | Hydraulic |
| Side Deflector Angle | — 14 deg |
| Up Deflector Angle | — 22 deg |
| Down Deflector Angle | — 14 deg |
| Chute Height | 494 cm 194.5 in |
|---|---|
| Bottom Thickness | .3 cm .1 in |
| Bottom Replaceable Wear Plate | — |
| Wear Plate Thickness | .5 cm .2 in |
| Top Thickness | .5 cm .2 in |
| Side Wall Thickness | .5 cm .2 in |
| Deflector Thickness | .5 cm .2 in |
| Side Deflector Angle | — deg |
| Up Deflector Angle | — 18 deg |
| Down Deflector Angle | — 90 deg |
| Rotation Type | — |
| Rotational Lock | — |
| Tank capacity | 124.9 L 33 gal |
|---|---|
| Recommended Oil Type | Hy-Power 68, 46, or 32 |
| System Type | Open-center |
| Filtration Method | Intake suction screens and return filter |
| Pump Flow at Maximum RPM | 60.6 L/min 16 gpm |
| System relief pressure | 275.8 bar 4000 psi |
| Auto Reverse PSI | 258.6 bar 3750 psi |
| Flow Control | Two - feed roller and infeed conveyor |
| Directional Control | — |
| Oil Cooler | 1 |
| Tank capacity | 124.9 L 33 gal |
|---|---|
| Recommended Oil Type | — |
| System Type | — |
| Filtration Method | — |
| Pump Flow at Maximum RPM | 143.8 L/min 38 gpm |
| System relief pressure | 330 bar 4786 psi |
| Oil Cooler | — |
| System Voltage | 24V |
|---|---|
| Battery | Group 8D 1400 CCA (dual) |
| Standard Gauges | Yes |
| Deluxe Gauges | No |
| Switches | Push button |
| Controller | Danfoss MC-050 |
| Display | DP10 |
| Shutdown System | Yes |
| Radio Remote Control | Yes |
| Frame Description | 8" x 4" x .375" wall rectangular tubing |
|---|---|
| Toolbox Description | Lockable |
| Tongue Description | — |
| Tongue Extension | — |
| Hitch Type | — |
| Grapple Handle | — |
| Fender Description | — |
| Axle/Suspension | — |
| Type | — |
| Manufacturer | — |
| Capacity | — |
| Tires | — |
| Wheels | — |
| Axle/Suspension - Option Two | — |
| Type - Option Two | — |
| Manufacturer - Option Two | — |
| Capacity - Option Two | — |
| Tires - Option Two | — |
| Wheels - Option Two | — |
| Axle/Suspension - Option Three | — |
| Type - Option Three | — |
| Manufacturer - Option Three | — |
| Capacity - Option Three | — |
| Tires - Option Three | — |
| Wheels - Option Three | — |
| Brake Type | Air |
| Trailer Light Type | LED |
| Track Type | — |
| Drive Planetary | — |
| Oiless Planetary Disconnect | — |
| Track Pad Type | — |
| Track pad width | 50.8 cm 20 in |
| Track Gauge | 246.4 cm 97 in |
| Track Pitch | 335.3 cm 132 in |
| Ground pressure | .6 bar 8.4 psi |
| Loader Relief Pressure | bar psi |
|---|---|
| Loader Boom Structure | — |
| Loader Reach | m ft |
| Loader Lift Capacity at Full Reach | kg lbs |
| Loader Maximum Lift Capacity | kg lbs |
| Loader Controls | — |
| Loader Rotation | — |
| Loader Grapple Rotation | — |
| Special Paint | Yes |
|---|---|
| Extended Warranty | Yes |
| Preventative Maintenance | — |
| Adjustable Height Discharge Chute | No |
| Feed Table Width | 248.9 cm 98 in |
|---|---|
| Feed Table Depth | cm in |
| Feed Table Length - Option One | 3 m 10 ft |
| Feed Table Capacity | cu m cu yd |
| Loading Height | m ft |
| Flare Construction | — |
| Feed Conveyor Type | Dual independent chain |
| Material Construction | .50" thick |
| Feed Conveyor Type - Option Two | — |
| Material Construction - Option Two | — |
| Drive Type | — |
| Drive Roller Construction | — |
| Front Idler Roller Construction | — |
| Infeed Floor Construction | AR400 wear plate |
| Infeed Slope | — 6 deg |
| Number of Infeed Chains | 2 |
| Number of Infeed Chain Teeth | — |
| Replaceable Chain Slides | Yes |
| Chain Tension | — |
