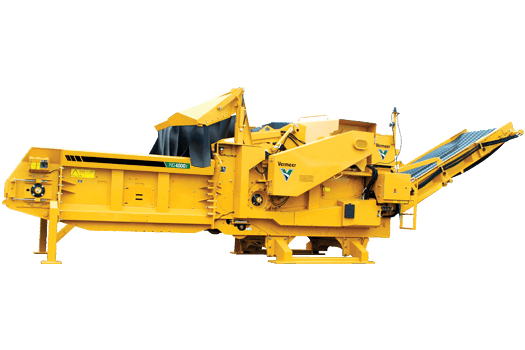

HG4000E Horizontal Grinder
As your stationary operation looks to electric-power, Vermeer is your partner for the equipment expertise you need.
Vermeer
⤢ Mărește
Pe scurt
- Gross Horsepower (Maximum)
- kw hp
Caracteristici & beneficii
- Bring efficiency to your stationary grinding operation
- Drum and screen options provide efficient processing and product sizing
- A wide infeed design makes over-the-side loading easy and efficient
- Reduce the quantity and distance of thrown debris
Date tehnice
Specificații tehnice
| Maximum Length - Transport | 9.5 m 31.1 ft |
|---|---|
| Maximum Length - Transport with Dolly | m ft |
| Maximum length - Transport (Pintle) | m ft |
| Maximum length - Transport (5th wheel) | m ft |
| Maximum Length (Operation) | 14.4 m 47.1 ft |
| Maximum Width (Transport) | m ft |
| Maximum Width Transport - with Dolly | 2.6 m 8.4 ft |
| Maximum Height (Transport) | m ft |
| Maximum Height Transport with Dolly | 30.2 cm 11.9 in |
| Maximum height Transport with Dolly ('/m) | m ft |
| Weight | 17644.7 kg 38900 lbs |
| Maximum weight (Pintle) | kg lbs |
| Maximum weight (5th wheel) | kg lbs |
| Tongue Weight | kg lbs |
| Tongue Weight - Engine Option 1 with Dolly | kg lbs |
| Maximum tongue weight (Pintle) | kg lbs |
| Maximum tongue weight (5th wheel) | kg lbs |
| Axle Weight | kg lbs |
| Axle Weight - Engine Option 1 with Dolly | kg lbs |
| Maximum axle weight (Pintle) | kg lbs |
| Maximum axle weight (5th wheel) | kg lbs |
| Weight Engine Option 1 with Dolly | kg lbs |
| Dolly Weight | kg lbs |
| Maximum length - transport (axle version) | m ft |
| Maximum length - transport (stationary version) | m ft |
| Maximum width - transport (axle version) | m ft |
| Maximum width - transport (stationary version) | m ft |
| Maximum height - transport (axle version) | m ft |
| Maximum height - transport (stationary version) | m ft |
| Weight (axle version) | kg lbs |
| Weight (stationary version) | kg lbs |
| Maximum Width | 254 cm 100 in |
|---|---|
| Maximum Length - Folding Conveyor | 14.4 m 47.1 ft |
| Maximum Height - Folding Conveyor | 43.6 m 143 ft |
| Weight | 17644.7 kg 38900 lbs |
| Rear Pad Weight | 11339.8 kg 25000 lbs |
| Front Pad Weight | 6304.9 kg 13900 lbs |
| Sound Power | 110.2 db(A) re1pW |
| Make and Model | — |
|---|---|
| Number of Cylinders | — — |
| Gross Horsepower (Maximum) | kw hp |
| Torque (Max) | Nm ft-lb |
| Fuel Tank Capacity | L gal |
| Max Fuel Consumption | lph gph |
| Fuel Type | — |
| Diesel exhaust fluid capacity | L gal |
| Air Cleaner | — |
| Oil Filter | — |
| Recommended Oil | — |
| Oil Volume with Filter | L qt |
| Cooling Medium | — |
| Coolant Capacity (Engine and Radiator) | L gal |
| Oil volume with filter | L gal |
| Air to Boil Temperature | — deg |
| Air to boil temperature | — |
| Alternator | — |
| Fan | — |
| Fan - CAC | — |
| Clutch Type | — |
| Clutch Engagement | — |
| Drive Belt Type | — |
| Sound Power | — |
| Make and Model | — |
|---|---|
| Number of Cylinders | — — |
| Gross Horsepower (Maximum) | kw hp |
| Torque (Max) | Nm ft-lb |
| Fuel Tank Capacity | L gal |
| Max Fuel Consumption | lph gph |
| Fuel Type | — |
| Air Cleaner | — |
| Oil Filter | — |
| Recommended Oil | — |
| Oil Volume with Filter | L qt |
| Oil volume with filter | L gal |
| Cooling Medium | — |
| Coolant Capacity (Engine and Radiator) | L gal |
| Air to Boil Temperature | — deg |
| Air to boil temperature | — |
| Alternator | — |
| Fan | — |
| Fan - CAC | — |
| Clutch Type | — |
| Clutch Engagement | — |
| Drive Belt Type | — |
| Sound Power | — |
| Make and Model | — |
|---|---|
| Number of Cylinders | — — |
| Gross Horsepower (Maximum) | kw hp |
| Torque (Max) | Nm ft-lb |
| Fuel Tank Capacity | L gal |
| Max Fuel Consumption | lph gph |
| Fuel Type | — |
| Air Cleaner | — |
| Oil Filter | — |
| Recommended Oil | — |
| Oil Volume with Filter | L qt |
| Cooling Medium | — |
| Coolant Capacity (Engine and Radiator) | L gal |
| Air to Boil Temperature | — deg |
| Alternator | — |
| Fan | — |
| Clutch Type | — |
| Clutch Engagement | — |
| Drive Belt Type | — |
| Sound Power | — |
| Manufacturer | Weg |
|---|---|
| Frame | 145T |
| Horsepower | 1.5 kw 2 hp |
| Voltage | — — |
| Frequency | 60 Hz |
| Phase | 3 Phases |
| Rated Speed | — 1750 rpm |
| Enclosure | TEFC |
| Full Load Amps | 2.61 |
| Locked Rotor Amps | 19.6 |
| Service Factor | 1.25 |
| Duty Cycle | S1 - Continuous |
| NEMA Design | B |
| Insulation Class | F |
| Full Load Torque | 8 Nm 5.9 ft-lb |
| Locked Rotor (%) | 240 |
| Break Down | 300 |
| Ambient Temperature | 1352 f 40 c |
| Nominal Efficiency | 86.5% (NEMA Premium) |
| Power Factor | 0.84 |
| Approximate Weight | 23.1 kg 51 lbs |
| Added Items | Terminal Block, C-Face |
| Drive Belt Type | Direct |
| Manufacturer | Weg |
|---|---|
| Frame | 90L |
| Horsepower | 1.5 kw 2 hp |
| Voltage | 380 |
| Frequency | 50 |
| Phase | 3 |
| Rated Speed | — 1430 rpm |
| Enclosure | TEFC |
| Full Load Amps | 3.32 |
| Locked Rotor Amps | 20.9 |
| Service Factor | 1 |
| Duty Cycle | S1 - Continuous |
| NEMA Design | N |
| Insulation Class | F |
| Full Load Torque | 10 Nm 7.4 ft-lb |
| Locked Rotor (%) | 180 |
| Break Down | 250 |
| Ambient Temperature | 1352 f 40 c |
| Nominal Efficiency | IE2 |
| Power Factor | 0.83 |
| Approximate Weight | 22.2 kg 49 lbs |
| Added Items | Terminal Block, C-Face |
| Drive Belt Type | Direct |
| Manufacturer | Weg |
|---|---|
| Frame | 326T |
| Horsepower | 37.3 kw 50 hp |
| Voltage | 460 |
| Frequency | 60 |
| Phase | 3 |
| Rated Speed | — 1775 rpm |
| Enclosure | TEFC |
| Full Load Amps | 59.2 |
| Locked Rotor Amps | 367 |
| Service Factor | 1.25 |
| Duty Cycle | S1 - Continuous |
| NEMA Design | B |
| Insulation Class | F |
| Full Load Torque | 197.9 Nm 146 ft-lb |
| Locked Rotor (%) | 230 |
| Break Down | 270 |
| Ambient Temperature | 1352 f 40 c |
| Nominal Efficiency | 94.5 (NEMA Premium) |
| Power Factor | 0.83 |
| Approximate Weight | 243.1 kg 536 lbs |
| Added Items | Terminal Block, C-Face |
| Drive Belt Type | Direct |
| Manufacturer | Weg |
|---|---|
| Frame | 225S/M |
| Horsepower | 37.3 kw 50 hp |
| Voltage | 380 |
| Frequency | 50 |
| Phase | 3 |
| Rated Speed | — 1475 rpm |
| Enclosure | TEFC |
| Full Load Amps | 68.5 |
| Locked Rotor Amps | 534 |
| Service Factor | 1 |
| Duty Cycle | S1-Continuous |
| NEMA Design | N |
| Insulation Class | F |
| Full Load Torque | 240 Nm 177 ft-lb |
| Locked Rotor (%) | 250 |
| Break Down | 270 |
| Ambient Temperature | 1352 f 40 c |
| Nominal Efficiency | 94.3 (IE3) |
| Power Factor | .87 |
| Approximate Weight | 391.9 kg 864 lbs |
| Added Items | Terminal Block, C-Face |
| Drive Belt Type | Direct |
| Manufacturer | Weg |
|---|---|
| Frame | 586/7z |
| Horsepower | kw hp |
| Voltage | 460 Volt |
| Frequency | 60 Hz |
| Phase | 3 |
| Rated Speed | — 1790 rpm |
| Enclosure | TEFC |
| Full Load Amps | 564 |
| Locked Rotor Amps | 3610 |
| Service Factor | 1.15 |
| Duty Cycle | S1 - Continuous |
| NEMA Design | B |
| Insulation Class | F |
| Full Load Torque | 1961.9 Nm 1447 ft-lb |
| Locked Rotor (%) | 210 |
| Break Down | 200 |
| Ambient Temperature | 1352 f 40 c |
| Nominal Efficiency | 95.8 (NEMA High) |
| Power Factor | 0.86 |
| Approximate Weight | 1774.5 kg 3912 lbs |
| Added Items | Terminal Block, Thermostat (155C), Inverter Duty, Crusher Duty, Roller Bearings |
| Drive Belt Type | Belt |
| Manufacturer | Weg |
|---|---|
| Frame | 355 M/L |
| Horsepower | 372.8 kw 500 hp |
| Voltage | 380 |
| Frequency | 50 |
| Phase | 3 |
| Rated Speed | — 1490 rpm |
| Enclosure | TEFC |
| Full Load Amps | 675 |
| Locked Rotor Amps | 4730 |
| Service Factor | 1 |
| Duty Cycle | S1-Continuous |
| NEMA Design | N |
| Insulation Class | F |
| Full Load Torque | 2372.7 Nm 1750 ft-lb |
| Locked Rotor (%) | 210 |
| Break Down | 220 |
| Ambient Temperature | 1352 f 40 c |
| Nominal Efficiency | 95.7 (IE2) |
| Power Factor | .87 |
| Approximate Weight | 1971.3 kg 4346 lbs |
| Added Items | Terminal Block, Thermostat (155C), Inverter Duty, Roller Bearings |
| Drive Belt Type | Belt |
| Height | 228.6 cm 90 in |
|---|---|
| Width | 302.3 cm 119 in |
| Depth | 66 cm 26 in |
| Weight | 1369.8 kg 3020 lbs |
| Feed Table Width | 152.4 cm 60 in |
|---|---|
| Feed Table Depth | 53.3 cm 21 in |
| Feed Table Length - Option One | 4.6 m 15 ft |
| Feed Table Capacity | 3.7 cu m 4.8 cu yd |
| Loading Height | 2 m 6.5 ft |
| Flare Construction | Integrated with frame |
| Feed Conveyor Type | Welded slat chain |
| Material Construction | steel |
| Feed Conveyor Type - Option Two | — |
| Material Construction - Option Two | — |
| Drive Type | Radial piston motor |
| Drive Roller Construction | Welded steel |
| Front Idler Roller Construction | Self-cleaning steel auger |
| Infeed Floor Construction | Welded steel with replaceable UHMW wear plates |
| Infeed Roller Length | cm in |
| Infeed Roller Width | 147.3 cm 58 in |
| Feed opening | — |
| Infeed Roller Weight | 453.6 kg 1000 lbs |
| Infeed roller weight with arm | kg lbs |
| Infeed Roller Diameter | 71.1 cm 28 in |
| Maximum Feed Height | 66 cm 26 in |
| Material Type | Fabricated steel |
| Tooth Design | Serrated bars |
| Number of Teeth | 10 bars |
| Drive Motor | Fixed displacement, Geroler |
| Drive Planetary | 34.2:1 |
| Feed Roller Down Pressure | Adjustable |
| Feed opening | — |
|---|---|
| Infeed roller weight with arm | kg lbs |
| Thrown Object Deflector | Standard |
|---|---|
| Deflector Position | Variable |
| Curtain Description | cm in |
| Curtain description | — |
| Millbox Opening | 60" (152 cm) wide x 26" (66 cm) high |
|---|---|
| Drum Weight | kg lbs |
| Drum Diameter | 57.2 cm 22.5 in |
| Tip Diameter | 79.6 cm 31.3 in |
| Drum Cutting Width | 153.9 cm 60.6 in |
| Drum Skin Thickness | 3.8 cm 1.5 in |
| Drum Speed | — 1125 rpm |
| Tip speed (Duplex) | m/min ft/min |
| Tip Speed | — rpm |
| Bearing Type | Double-row, spherical roller |
| Bearing - Inner Race Diameter | 10.9 cm 4.3 in |
| Bearing - Dynamic Capacity | kg lbs |
| Number of Hammers | 9 |
| Number of Tips | 18 |
| Tip option 1 | — |
| Tip option 2 | — |
| Tip option 3 | — |
| Tip option 4 | — |
| Tip types | — |
| Center Retention Pin Dimensions | 2" (5 cm) dia. x 75.25" (191 cm) long |
| Number of Wipers | — |
| Millbox Opening | 60" (152 cm) wide x 26" (66 cm) high |
|---|---|
| Drum Weight | kg lbs |
| Drum Diameter | 57.2 cm 22.5 in |
| Tip Diameter | 79.6 cm 31.3 in |
| Drum Cutting Width | 153.9 cm 60.6 in |
| Drum Skin Thickness | 3.8 cm 1.5 in |
| Depth of Cut | — |
| Number of Knives | — |
| Knife Thickness | — |
| Useable Edges | — |
| Material | — |
| Number of Bolts/Knife | — |
| Replaceable Threaded Knife Block | — |
| Number of Pockets | — |
| Drum Speed | — 845 rpm |
| Tip Speed | — rpm |
| Tip speed (1-in chip) | m/min ft/min |
| Bearing Type | Double-row, spherical roller |
| Bearing - Inner Race Diameter | 10.9 cm 4.3 in |
| Bearing - Dynamic Capacity | kg lbs |
| Number of Hammers | 9 |
| Number of Tips | 18 |
| Shaft diameter | cm in |
| Shaft Retention Type | — |
| Tip option 1 | — |
| Tip option 2 | — |
| Tip option 3 | — |
| Tip option 4 | — |
| Center Retention Pin Dimensions | 2" (5 cm) dia. x 75.25" (191 cm) long |
| Number of Wipers | — |
| Drum Weight | kg lbs |
|---|---|
| Depth of Cut | — |
| Number of Knives | — — |
| Knife Thickness | — |
| Useable Edges | — |
| Material | — |
| Number of Bolts/Knife | — |
| Replaceable Threaded Knife Block | — |
| Number of Pockets | — |
| Shaft diameter | cm in |
| Shaft Retention Type | — |
| Drum Weight | kg lbs |
|---|---|
| Depth of Cut | — |
| Number of Knives | — — |
| Knife Thickness | — |
| Useable Edges | — |
| Material | — |
| Number of Bolts/Knife | — |
| Replaceable Threaded Knife Block | — |
| Number of Pockets | — |
| Shaft diameter | cm in |
| Shaft Retention Type | — |
| Screen Weight | kg lbs |
|---|---|
| Screen Weight | — |
| Screen Dimensions | 3/4" (1.9 cm) thick |
| Screen Type | Fabricated out of abrasion-resistant steel |
| Number of Screens | 2 |
| Screen Area | 20200 sq cm 3131 sq in |
| Millbox lid liner | — |
| Number of Sides | 1 |
| Millbox Lid Liner Dimensions | Abrasion-resistant steel |
| Liner Dimensions | 1/2" (1.3 cm) thick x 5" (12.7 cm) wide x 61.6" (156.5 cm) long |
| Anvil Type | Fabricated steel with replaceable wear surfaces |
| Anvil Dimensions | — |
| Length | 21.7 m 71.3 ft |
|---|---|
| Width | 121.9 cm 48 in |
| Belt Design | 3-ply - 330# with V-cleat |
| Splice | R2-stainless steel |
| Return Roller Quantity | 3 |
| Idler Roller Diameter | 30.5 cm 12 in |
| Idler Roller Bearing | 1-15/16, 4-bolt flange |
| Standard Drive Roller Diameter | 32.5 cm 12.8 in |
| Magnetic Drive Roller Diameter | 32.5 cm 12.8 in |
| Drive Motor | Fixed displacement, Geroler |
| Drive Motor Bearings | — |
| Belt Speed | 161.2 m/min 529 ft/min |
| Load Height | 4.3 m 14 ft |
| Tank capacity | 227.1 L 60 gal |
|---|---|
| Recommended Oil | Vermeer HyPower 68 |
| Filtration Method | Dual in-tank return filters (B5=200) |
| Number of Coolers | 1 |
| Components | — |
|---|---|
| System Type | Open-loop, pressure- and flow-compensated |
| Pump Type | Variable displacement, axial piston |
| Pump Flow at Maximum RPM | 25.9 (60HZ) ; 24.9 (50HZ) |
| System Relief Pressure | 3000 |
| System Type | Open-loop |
|---|---|
| Pump Type | Fixed displacement, gear pump |
| Pump Flow at Maximum RPM | 55.6 L/min 14.7 gpm |
| System Relief Pressure | 3000 |
| Motor Series | Char-Lyn 6000 Series, Geroler |
| System Type | — |
|---|---|
| Pump Type | — |
| Pump Flow at Maximum RPM | L/min gpm |
| Motor Series | — |
| Fan Series - FWD/REV | — |
| Tank capacity | L gal |
|---|---|
| Recommended Oil | — |
| Filtration Method | — |
| Number of Coolers | — |
| System Type | — |
| Pump Type | — |
| Pump Flow at Maximum RPM | L/min gpm |
| System relief pressure | bar psi |
| System Voltage | 380V or 460V |
|---|---|
| Battery | — |
| System Protection | Fused |
| Display Type | LCD |
|---|---|
| Engine Information | Yes |
| Machine Information | Yes |
| Operational Faults | Yes |
| Gauges | Hydraulic pressure (implement circuit) |
| Switches | Moisture-proof, toggle style |
| Radio remote type | — |
|---|---|
| Display Type | LCD |
| Engine Information | Yes |
| Machine Information | Yes |
| Operational Faults | Yes |
| Gauges | — |
| Switches | Sealed membrane |
| Operating Range | Up to 300' (91.4 m) |
| Battery Type | AA (qty 6) |
| Channel Setting | 50 channels |
| Frame Description | Unit body construction |
|---|---|
| Tongue Description | — |
| Hitch Type | — |
| Fender Description | — |
| Brake Type | — |
| Trailer Light Type | — |
| Suspension Type | Spring |
|---|---|
| Manufacturer - Option One | Hendrickson |
| Capacity per Axle | 9071.8 kg 20000 lbs |
| Number of axles (5th wheel) | — |
| Number of axles (Pintle) | — |
| Number of Axles | — 2 |
| Tires - Option One | 425/65R22.5 super singles |
| Wheels - Option One | Aluminum |
| Ground Clearance - Option One | cm in |
| Tires - Option Two | 385/65R22.5 super singles |
| Wheels - Option Two | Aluminum |
| Ground Clearance - Option Two | cm in |
| Track Frame Description | — |
|---|---|
| Track Type | — |
| Track Drive Pump Type | — |
| Track Drive Motor Type | — |
| Track Brake Type | — |
| Track Length on Ground | — |
| Track Width - Option One | — |
| Track Width Option One - Ground Bearing Pressure - Hard Ground | kPa psi |
| Track Width Option One - Ground Bearing Pressure - Soft Ground | kPa psi |
| Track Width Option Two - Ground Bearing Pressure - Option | kPa psi |
| Track Width Option Two - Ground Bearing Pressure - Option Two | kPa psi |
| Type of Idler | — |
| Number of Idlers | — — |
| Pump Flow at Maximum RPM | L/min gpm |
| System relief pressure | bar psi |
| Maximum Speed | km/h mph |
| Maximum Creep Speed - (Low) | km/h mph |
| Low Speed Travel in Creep Mode | km/h mph |
| Air Compressor Brand | — |
|---|---|
| Engine | — |
| Maximum Pressure | bar psi |
| Maximum Air Flow | cmm cfm |
| Tank capacity | L gal |
| Tank capacity (5th wheel) | L gal |
| Tank capacity (Pintle) | L gal |
| Screens | Yes |
|---|---|
| Tips | — |
| Special Tools Group | Yes |
| Magnetic discharge conveyor pulley | — |
| Extended Warranty | Yes |
| Preventative Maintenance | Yes |
| Special Paint | Yes |
| Air Compressor | — |
| Vermeer Confidence Plus Asset Protection Program | — |
| Damage Defense | — |
Video
Modele similare
Toate din Horizontal Grinders →
CE
HG6000E Horizontal Grinder
As your stationary operation looks to electric-power, Vermeer is your partner for the equipment expertise you need.
- Gross Horsepower (Maximum)
- kw hp
CE
HG4000 European Configuration Horizontal Grinder
Municipal waste facilities, pallet and sawmill operations, and compost contractors alike will appreciate the cost of operation-minded qualities of the all new HG4000 horizontal grinder.
- Gross Horsepower (Maximum)
- 399.7 kw 536 hp
CE
HG6000 European Configuration
Process wood waste more efficiently with the HG6000 horizontal grinder.
- Gross Horsepower (Maximum)
- 563 kw 755 hp
