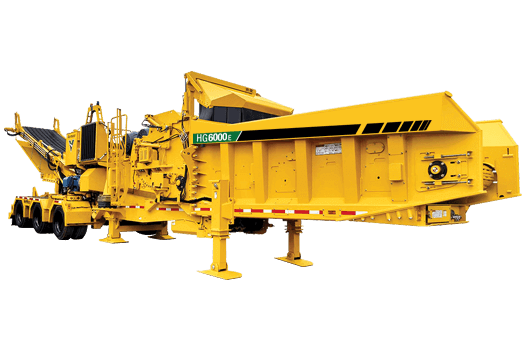

HG6000E Horizontal Grinder
As your stationary operation looks to electric-power, Vermeer is your partner for the equipment expertise you need.
Vermeer
⤢ Mărește
Pe scurt
- Gross Horsepower (Maximum)
- kw hp
Caracteristici & beneficii
- Bring efficiency to your stationary grinding operation
- Drum and screen options provide efficient processing and product sizing
- A wide infeed design makes over-the-side loading easy and efficient
- Reduce the quantity and distance of thrown debris
Date tehnice
Specificații tehnice
| Maximum Length - Transport | m ft |
|---|---|
| Maximum Length - Transport with Dolly | 14 m 45.8 ft |
| Maximum length - Transport (Pintle) | m ft |
| Maximum length - Transport (5th wheel) | m ft |
| Maximum Length (Operation) | 16.6 m 54.5 ft |
| Maximum Width (Transport) | m ft |
| Maximum Width Transport - with Dolly | 3 m 9.8 ft |
| Maximum Height (Transport) | m ft |
| Maximum Height Transport with Dolly | cm in |
| Maximum height Transport with Dolly ('/m) | m ft |
| Weight | 25401.2 kg 56000 lbs |
| Maximum weight (Pintle) | kg lbs |
| Maximum weight (5th wheel) | kg lbs |
| Tongue Weight | kg lbs |
| Tongue Weight - Engine Option 1 with Dolly | 9797.6 kg 21600 lbs |
| Maximum tongue weight (Pintle) | kg lbs |
| Maximum tongue weight (5th wheel) | kg lbs |
| Axle Weight | kg lbs |
| Axle Weight - Engine Option 1 with Dolly | 19685.9 kg 43400 lbs |
| Maximum axle weight (Pintle) | kg lbs |
| Maximum axle weight (5th wheel) | kg lbs |
| Weight Engine Option 1 with Dolly | kg lbs |
| Dolly Weight | 4309.1 kg 9500 lbs |
| Maximum length - transport (axle version) | m ft |
| Maximum length - transport (stationary version) | m ft |
| Maximum width - transport (axle version) | m ft |
| Maximum width - transport (stationary version) | m ft |
| Maximum height - transport (axle version) | m ft |
| Maximum height - transport (stationary version) | m ft |
| Weight (axle version) | kg lbs |
| Weight (stationary version) | kg lbs |
| Maximum Width | cm in |
|---|---|
| Maximum Length - Folding Conveyor | m ft |
| Maximum Height - Folding Conveyor | m ft |
| Weight | 25174.4 kg 55500 lbs |
| Rear Pad Weight | 14333.5 kg 31600 lbs |
| Front Pad Weight | 10840.9 kg 23900 lbs |
| Sound Power | — |
| Make and Model | — |
|---|---|
| Number of Cylinders | — — |
| Gross Horsepower (Maximum) | kw hp |
| Torque (Max) | Nm ft-lb |
| Fuel Tank Capacity | L gal |
| Max Fuel Consumption | lph gph |
| Fuel Type | — |
| Diesel exhaust fluid capacity | L gal |
| Air Cleaner | — |
| Oil Filter | — |
| Recommended Oil | — |
| Oil Volume with Filter | L qt |
| Cooling Medium | — |
| Coolant Capacity (Engine and Radiator) | L gal |
| Oil volume with filter | L gal |
| Air to Boil Temperature | — deg |
| Air to boil temperature | — |
| Alternator | — |
| Fan | — |
| Fan - CAC | — |
| Clutch Type | — |
| Clutch Engagement | — |
| Drive Belt Type | — |
| Sound Power | — |
| Make and Model | — |
|---|---|
| Number of Cylinders | — — |
| Gross Horsepower (Maximum) | kw hp |
| Torque (Max) | Nm ft-lb |
| Fuel Tank Capacity | L gal |
| Max Fuel Consumption | lph gph |
| Fuel Type | — |
| Air Cleaner | — |
| Oil Filter | — |
| Recommended Oil | — |
| Oil Volume with Filter | L qt |
| Oil volume with filter | L gal |
| Cooling Medium | — |
| Coolant Capacity (Engine and Radiator) | L gal |
| Air to Boil Temperature | — deg |
| Air to boil temperature | — |
| Alternator | — |
| Fan | — |
| Fan - CAC | — |
| Clutch Type | — |
| Clutch Engagement | — |
| Drive Belt Type | — |
| Sound Power | — |
| Make and Model | — |
|---|---|
| Number of Cylinders | — — |
| Gross Horsepower (Maximum) | kw hp |
| Torque (Max) | Nm ft-lb |
| Fuel Tank Capacity | L gal |
| Max Fuel Consumption | lph gph |
| Fuel Type | — |
| Air Cleaner | — |
| Oil Filter | — |
| Recommended Oil | — |
| Oil Volume with Filter | L qt |
| Cooling Medium | — |
| Coolant Capacity (Engine and Radiator) | L gal |
| Air to Boil Temperature | — deg |
| Alternator | — |
| Fan | — |
| Clutch Type | — |
| Clutch Engagement | — |
| Drive Belt Type | — |
| Sound Power | — |
| Manufacturer | WEG W22 |
|---|---|
| Frame | 145T |
| Horsepower | 1.5 kw 2 hp |
| Voltage | — 460 |
| Frequency | 60 |
| Phase | 3 |
| Rated Speed | — 1750 rpm |
| Enclosure | TEFC |
| Full Load Amps | 2.61 |
| Locked Rotor Amps | 19.6 |
| Service Factor | 1.25 |
| Duty Cycle | S1 |
| NEMA Design | B |
| Insulation Class | F |
| Full Load Torque | 8 Nm 5.9 ft-lb |
| Locked Rotor (%) | 240 |
| Break Down | 300 |
| Ambient Temperature | 1352 f 40 c |
| Nominal Efficiency | 86.5 |
| Power Factor | .84 |
| Approximate Weight | 23.1 kg 51 lbs |
| Added Items | Terminal Block |
| Drive Belt Type | — |
| Manufacturer | — |
|---|---|
| Frame | — |
| Horsepower | kw hp |
| Voltage | — |
| Frequency | — |
| Phase | — |
| Rated Speed | — rpm |
| Enclosure | — |
| Full Load Amps | — |
| Locked Rotor Amps | — |
| Service Factor | — |
| Duty Cycle | — |
| NEMA Design | — |
| Insulation Class | — |
| Full Load Torque | Nm ft-lb |
| Locked Rotor (%) | — |
| Break Down | — |
| Ambient Temperature | f c |
| Nominal Efficiency | — |
| Power Factor | — |
| Approximate Weight | kg lbs |
| Added Items | — |
| Drive Belt Type | — |
| Manufacturer | WEG W22 |
|---|---|
| Frame | 364/5TS |
| Horsepower | 44.7 kw 60 hp |
| Voltage | 460 |
| Frequency | 60 |
| Phase | 3 |
| Rated Speed | — 1775 rpm |
| Enclosure | TEFC |
| Full Load Amps | 68.3 |
| Locked Rotor Amps | 451 |
| Service Factor | 1.25 |
| Duty Cycle | S1 |
| NEMA Design | B |
| Insulation Class | F |
| Full Load Torque | 237.3 Nm 175 ft-lb |
| Locked Rotor (%) | 240 |
| Break Down | 260 |
| Ambient Temperature | 1352 f 40 c |
| Nominal Efficiency | 95 |
| Power Factor | .87 |
| Approximate Weight | 394.2 kg 869 lbs |
| Added Items | Nema C Face Mount, Terminal Block |
| Drive Belt Type | — |
| Manufacturer | — |
|---|---|
| Frame | — |
| Horsepower | kw hp |
| Voltage | — |
| Frequency | — |
| Phase | — |
| Rated Speed | — rpm |
| Enclosure | — |
| Full Load Amps | — |
| Locked Rotor Amps | — |
| Service Factor | — |
| Duty Cycle | — |
| NEMA Design | — |
| Insulation Class | — |
| Full Load Torque | Nm ft-lb |
| Locked Rotor (%) | — |
| Break Down | — |
| Ambient Temperature | f c |
| Nominal Efficiency | — |
| Power Factor | — |
| Approximate Weight | kg lbs |
| Added Items | — |
| Drive Belt Type | — |
| Manufacturer | WEG W22 |
|---|---|
| Frame | NEMA 586/7Z |
| Horsepower | kw hp |
| Voltage | 460 |
| Frequency | 60 |
| Phase | 3 |
| Rated Speed | — 1790 rpm |
| Enclosure | TEFC |
| Full Load Amps | 401 |
| Locked Rotor Amps | 2390 |
| Service Factor | 1.15 |
| Duty Cycle | S1 |
| NEMA Design | NEMA A |
| Insulation Class | F |
| Full Load Torque | 1861.5 Nm 1373 ft-lb |
| Locked Rotor (%) | 220 |
| Break Down | 260 |
| Ambient Temperature | 135.2 f 4 c |
| Nominal Efficiency | 95.8 |
| Power Factor | .85 |
| Approximate Weight | 1525.4 kg 3363 lbs |
| Added Items | Temperature switch; Inverter duty; Terminal Block |
| Drive Belt Type | Synchronous, carbon fiber |
| Manufacturer | — |
|---|---|
| Frame | — |
| Horsepower | kw hp |
| Voltage | — |
| Frequency | — |
| Phase | — |
| Rated Speed | — rpm |
| Enclosure | — |
| Full Load Amps | — |
| Locked Rotor Amps | — |
| Service Factor | — |
| Duty Cycle | — |
| NEMA Design | — |
| Insulation Class | — |
| Full Load Torque | Nm ft-lb |
| Locked Rotor (%) | — |
| Break Down | — |
| Ambient Temperature | f c |
| Nominal Efficiency | — |
| Power Factor | — |
| Approximate Weight | kg lbs |
| Added Items | — |
| Drive Belt Type | — |
| Height | 222 cm 87.4 in |
|---|---|
| Width | 401.3 cm 158 in |
| Depth | 61.2 cm 24.1 in |
| Weight | 1859.7 kg 4100 lbs |
| Feed Table Width | 152.4 cm 60 in |
|---|---|
| Feed Table Depth | cm in |
| Feed Table Length - Option One | 6.1 m 20 ft |
| Feed Table Capacity | cu m cu yd |
| Loading Height | 2.3 m 7.6 ft |
| Flare Construction | Integrated with infeed |
| Feed Conveyor Type | Welded slat chain |
| Material Construction | Steel |
| Feed Conveyor Type - Option Two | — |
| Material Construction - Option Two | — |
| Drive Type | Radial piston motor |
| Drive Roller Construction | Welded steel |
| Front Idler Roller Construction | Self-cleaning steel auger |
| Infeed Floor Construction | Welded steel with replaceable UHMW wear plates |
| Infeed Roller Length | cm in |
| Infeed Roller Width | 144.3 cm 56.8 in |
| Feed opening | — |
| Infeed Roller Weight | 589.7 kg 1300 lbs |
| Infeed roller weight with arm | kg lbs |
| Infeed Roller Diameter | 91.8 cm 36.1 in |
| Maximum Feed Height | 81.3 cm 32 in |
| Material Type | Fabricated steel |
| Tooth Design | Serrated bars |
| Number of Teeth | 13 bars |
| Drive Motor | Fixed displacement, Geroler |
| Drive Planetary | Two options (HD - 26.18:1) (STD - 34.2:1) |
| Feed Roller Down Pressure | Adjustable |
| Feed opening | — |
|---|---|
| Infeed roller weight with arm | kg lbs |
| Thrown Object Deflector | Standard |
|---|---|
| Deflector Position | Variable |
| Curtain Description | cm in |
| Curtain description | — |
| Millbox Opening | 60" W x 32" H (152.4 cm W x 81.3 cm H) |
|---|---|
| Drum Weight | kg lbs |
| Drum Diameter | 14224 cm 5600 in |
| Tip Diameter | 71.1 cm 28 in |
| Drum Cutting Width | 92.5 cm 36.4 in |
| Drum Skin Thickness | 158.5 cm 62.4 in |
| Drum Speed | — 1.5 rpm |
| Tip speed (Duplex) | m/min ft/min |
| Tip Speed | — 1080 rpm |
| Bearing Type | Double row, spherical roller |
| Bearing - Inner Race Diameter | 14 cm 5.5 in |
| Bearing - Dynamic Capacity | kg lbs |
| Number of Hammers | 10 |
| Number of Tips | 20 |
| Tip option 1 | — |
| Tip option 2 | — |
| Tip option 3 | — |
| Tip option 4 | — |
| Tip types | — |
| Center Retention Pin Dimensions | 2" diameter x 75.3" L (5.1 cm diameter x 191.3 cm L) |
| Number of Wipers | — |
| Millbox Opening | — |
|---|---|
| Drum Weight | kg lbs |
| Drum Diameter | cm in |
| Tip Diameter | cm in |
| Drum Cutting Width | cm in |
| Drum Skin Thickness | cm in |
| Depth of Cut | — |
| Number of Knives | — |
| Knife Thickness | — |
| Useable Edges | — |
| Material | — |
| Number of Bolts/Knife | — |
| Replaceable Threaded Knife Block | — |
| Number of Pockets | — |
| Drum Speed | — rpm |
| Tip Speed | — rpm |
| Tip speed (1-in chip) | m/min ft/min |
| Bearing Type | — |
| Bearing - Inner Race Diameter | cm in |
| Bearing - Dynamic Capacity | kg lbs |
| Number of Hammers | — |
| Number of Tips | — |
| Shaft diameter | cm in |
| Shaft Retention Type | — |
| Tip option 1 | — |
| Tip option 2 | — |
| Tip option 3 | — |
| Tip option 4 | — |
| Center Retention Pin Dimensions | — |
| Number of Wipers | — |
| Drum Weight | kg lbs |
|---|---|
| Depth of Cut | — |
| Number of Knives | — — |
| Knife Thickness | — |
| Useable Edges | — |
| Material | — |
| Number of Bolts/Knife | — |
| Replaceable Threaded Knife Block | — |
| Number of Pockets | — |
| Shaft diameter | cm in |
| Shaft Retention Type | — |
| Drum Weight | kg lbs |
|---|---|
| Depth of Cut | — |
| Number of Knives | — — |
| Knife Thickness | — |
| Useable Edges | — |
| Material | — |
| Number of Bolts/Knife | — |
| Replaceable Threaded Knife Block | — |
| Number of Pockets | — |
| Shaft diameter | cm in |
| Shaft Retention Type | — |
| Screen Weight | 213.2 kg 470 lbs |
|---|---|
| Screen Weight | — |
| Screen Dimensions | 3/4" (1.9 cm) thick |
| Screen Type | Fabricated out of abrasion resistant steel |
| Number of Screens | 2 |
| Screen Area | 21400 sq cm 3317 sq in |
| Millbox lid liner | — |
| Number of Sides | 1 |
| Millbox Lid Liner Dimensions | Abrasion resistant steel |
| Liner Dimensions | 1" thick x 5.6" W x 65.4" L (2.5 cm thick x 14.2 cm W x 166.1 cm L) |
| Anvil Type | Fabricated steel with replaceable wear surfaces |
| Anvil Dimensions | 22.8"x 4.1"x 80.8" (57.9 cm x 10.4 cm x 205.2 cm) |
| Length | 24.8 m 81.3 ft |
|---|---|
| Width | 121.9 cm 48 in |
| Belt Design | 3 ply - 330# or straight warp single ply 330# both with V cleat |
| Splice | R2-stainless steel or Super splice |
| Return Roller Quantity | 3 |
| Idler Roller Diameter | 30.5 cm 12 in |
| Idler Roller Bearing | 1-15/16, 4-bolt flange |
| Standard Drive Roller Diameter | 32.4 cm 12.8 in |
| Magnetic Drive Roller Diameter | 32.4 cm 12.8 in |
| Drive Motor | Fixed displacement, Geroler |
| Drive Motor Bearings | 1-15/16, 4-bolt flange |
| Belt Speed | 237.7 m/min 780 ft/min |
| Load Height | 4.4 m 14.5 ft |
| Tank capacity | 246.1 L 65 gal |
|---|---|
| Recommended Oil | Vermeer HyPower 68 |
| Filtration Method | Dual in-tank return filters with suction strainer |
| Number of Coolers | 1 |
| Components | — |
|---|---|
| System Type | Open-loop, pressure- and flow-compensated |
| Pump Type | Variable displacement, axial piston |
| Pump Flow at Maximum RPM | 28.5/27.3 (60Hz/50Hz) |
| System Relief Pressure | 4500 |
| System Type | Open-loop |
|---|---|
| Pump Type | Fixed displacement, gear pump |
| Pump Flow at Maximum RPM | 87.1 L/min 23 gpm |
| System Relief Pressure | 3000 |
| Motor Series | Char-Lyn 6000 Series, geroler |
| System Type | — |
|---|---|
| Pump Type | — |
| Pump Flow at Maximum RPM | L/min gpm |
| Motor Series | — |
| Fan Series - FWD/REV | — |
| Tank capacity | L gal |
|---|---|
| Recommended Oil | — |
| Filtration Method | — |
| Number of Coolers | — |
| System Type | — |
| Pump Type | — |
| Pump Flow at Maximum RPM | L/min gpm |
| System relief pressure | bar psi |
| System Voltage | 24V Machine Control Circuit |
|---|---|
| Battery | — |
| System Protection | Fused |
| Display Type | LCD |
|---|---|
| Engine Information | Yes |
| Machine Information | Yes |
| Operational Faults | Yes |
| Gauges | — |
| Switches | Moisture-proof, toggle style |
| Radio remote type | — |
|---|---|
| Display Type | LCD |
| Engine Information | Yes |
| Machine Information | Yes |
| Operational Faults | Yes |
| Gauges | — |
| Switches | Sealed membrane |
| Operating Range | Up to 300' (91.4 m) |
| Battery Type | AA (qty 6) |
| Channel Setting | 50 channels |
| Frame Description | Unit body construction |
|---|---|
| Tongue Description | Bolt-on to infeed structure |
| Hitch Type | Fifth wheel |
| Fender Description | Formed steel, Replaceable |
| Brake Type | Air-actuated with spring-applied parking brake |
| Trailer Light Type | 12-24 V LED |
| Suspension Type | Air-ride |
|---|---|
| Manufacturer - Option One | Hendrickson |
| Capacity per Axle | 9071.8 kg 20000 lbs |
| Number of axles (5th wheel) | — |
| Number of axles (Pintle) | — |
| Number of Axles | — 3 |
| Tires - Option One | 255/70R22.5 Duals |
| Wheels - Option One | 22.5"x 8.3" (57.2 cm x 21 cm) Hub piloted steel |
| Ground Clearance - Option One | 13.5 cm 5.3 in |
| Tires - Option Two | — |
| Wheels - Option Two | — |
| Ground Clearance - Option Two | cm in |
| Track Frame Description | — |
|---|---|
| Track Type | — |
| Track Drive Pump Type | — |
| Track Drive Motor Type | — |
| Track Brake Type | — |
| Track Length on Ground | — |
| Track Width - Option One | — |
| Track Width Option One - Ground Bearing Pressure - Hard Ground | kPa psi |
| Track Width Option One - Ground Bearing Pressure - Soft Ground | kPa psi |
| Track Width Option Two - Ground Bearing Pressure - Option | kPa psi |
| Track Width Option Two - Ground Bearing Pressure - Option Two | kPa psi |
| Type of Idler | — |
| Number of Idlers | — — |
| Pump Flow at Maximum RPM | L/min gpm |
| System relief pressure | bar psi |
| Maximum Speed | km/h mph |
| Maximum Creep Speed - (Low) | km/h mph |
| Low Speed Travel in Creep Mode | km/h mph |
| Air Compressor Brand | Mi-T-M |
|---|---|
| Engine | — |
| Maximum Pressure | 12.1 bar 175 psi |
| Maximum Air Flow | .8 cmm 29 cfm |
| Tank capacity | 113.6 L 30 gal |
| Tank capacity (5th wheel) | L gal |
| Tank capacity (Pintle) | L gal |
| Screens | Yes |
|---|---|
| Tips | — |
| Special Tools Group | Yes |
| Magnetic discharge conveyor pulley | — |
| Extended Warranty | Yes |
| Preventative Maintenance | Optional |
| Special Paint | Yes |
| Air Compressor | — |
| Vermeer Confidence Plus Asset Protection Program | — |
| Damage Defense | — |
Video
Modele similare
Toate din Horizontal Grinders →
CE
HG4000E Horizontal Grinder
As your stationary operation looks to electric-power, Vermeer is your partner for the equipment expertise you need.
- Gross Horsepower (Maximum)
- kw hp
CE
HG4000 European Configuration Horizontal Grinder
Municipal waste facilities, pallet and sawmill operations, and compost contractors alike will appreciate the cost of operation-minded qualities of the all new HG4000 horizontal grinder.
- Gross Horsepower (Maximum)
- 399.7 kw 536 hp
CE
HG6000 European Configuration
Process wood waste more efficiently with the HG6000 horizontal grinder.
- Gross Horsepower (Maximum)
- 563 kw 755 hp
