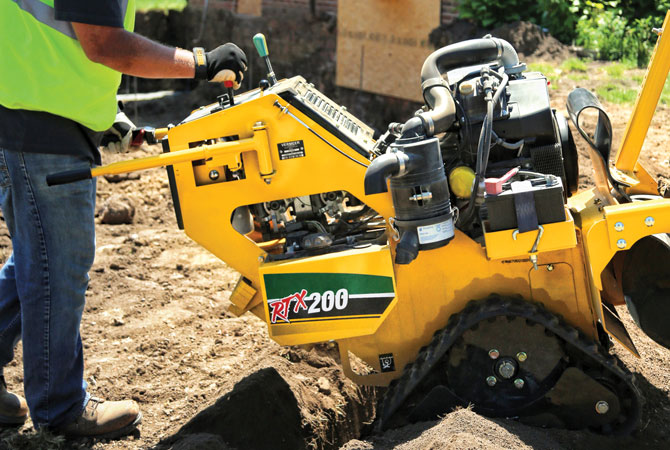

RTX200 Pedestrian Trencher
The RTX200 pedestrian trencher can handle tough challenges on your jobsite.
Vermeer
⤢ Mărește
Pe scurt
- Horsepower at Maximum RPM (Gross)
- 15.3 kw 20.5 hp
Caracteristici & beneficii
- Designed with versatility for the next job
- Keep your operators top-of mind with our enhanced operator presence system
- Master your terrain with option of tire or tracks
Broșuri & fișe tehnice
Date tehnice
Specificații tehnice
| Length | cm in |
|---|---|
| Length (Tractor with Tires) | 210.8 cm 83 in |
| Length (basic tractor, rubber tires) | cm in |
| Length (basic tractor, rubber tires, option two) | cm in |
| Length (basic tractor, rubber tires, option three) | cm in |
| Width | cm in |
| Width (Over Rubber Tracks) | 88.9 cm 35 in |
| Width (Over Rubber Tires) | 88.9 cm 35 in |
| Width (basic tractor, rubber tires) | cm in |
| Width (basic tractor, rubber tires, option two) | cm in |
| Width (basic tractor, rubber tires, option three) | cm in |
| Height | 116.8 cm 46 in |
| Height (basic tractor, rubber tires) | cm in |
| Height (basic tractor, rubber tires, option two) | cm in |
| Height (basic tractor, rubber tires, option three) | cm in |
| Weight | kg lbs |
| Weight (Tractor with Tires) | 426.4 kg 940 lbs |
| Weight (basic tractor, rubber tires) | kg lbs |
| Weight (basic tractor, rubber tires, option two) | kg lbs |
| Weight (basic tractor, rubber tires, option three) | kg lbs |
| Ground Clearance (rubber tires) | cm in |
| Ground Clearance (rubber tires, option two) | cm in |
| Ground clearance (rubber tires, option three) | cm in |
| Angle of approach (basic tractor, rubber tires) | — deg |
| Angle of approach (basic tractor, rubber tires, option two) | — deg |
| Angle of approach (basic tractor, rubber tires, option three) | — deg |
| Make and Model | Kohler CH640 |
|---|---|
| Manufacturer's gross hp rating | kw hp |
| Maximum Torque | Nm ft-lb |
| Fuel Type | Gasoline |
| Gross Horsepower | kw hp |
| Horsepower at Maximum RPM (Gross) | 15.3 kw 20.5 hp |
| Displacement | .7 L 41.1 cu-in |
| Number of Cylinders | — — |
| Cooling Medium | Forced air |
| Aspiration | Natural |
| Emissions rating | — |
| Make and Model | — |
|---|---|
| Fuel Type | — |
| Gross Horsepower | kw hp |
| Displacement | L cu-in |
| Number of Cylinders | — — |
| Cooling Medium | — |
| Aspiration | — |
| Maximum Operating Angle (Fore/Aft)* | — deg |
| Maximum Operating Angle (Left/Right)* | — deg |
| Attachment Pump Relief Pressure (Trencher/Forward) | 172.4 bar 2500 psi |
|---|---|
| Ground Drive Pump Relief Pressure Forward/Reverse | 165.5 bar 2400 psi |
| Ground Drive Pump gpm at Maximum Engine RPM | 20.4 L/min 5.4 gpm |
| Hydraulic Supply Filter Rating | 100 mesh strainer |
| Attachment Pump gpm at Maximum Engine RPM | 39 L/min 10.3 gpm |
| Hydraulic Return Filter Rating | 3 micron |
| Fuel Tank | 9.5 L 2.5 gal |
|---|---|
| Hydraulic Tank | 40.7 L 10.8 gal |
| Hydraulic System | 42.6 L 11.3 gal |
| Engine Oil | 1.9 L .5 gal |
| Coolant | L gal |
| Ground Drive Type | Hydrostatic |
|---|---|
| Clutch Type | none |
| Maximum Forward Transport Speed at Full Throttle | 5 km/h 3.1 mph |
| Maximum Reverse Transport Speed at Full Throttle | 1.6 km/h 1 mph |
