Trenchers
Conform CE

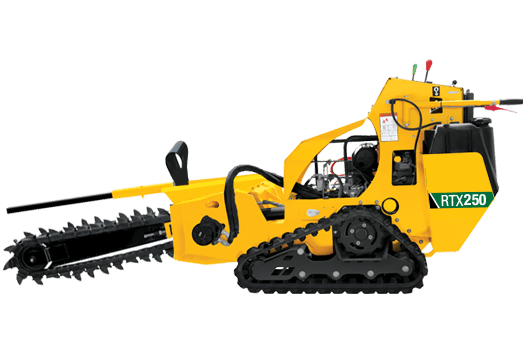

RTX250 Pedestrian Trencher
The Vermeer RTX250 pedestrian trencher is ready to get the job done right.
Vermeer
⤢ Mărește
Pe scurt
- Horsepower at Maximum RPM (Gross)
- 18.6 kw 25 hp
Caracteristici & beneficii
- Versatile configuration
- Enhanced mobility for improved efficiency
- High-powered engine for more productivity
Broșuri & fișe tehnice
Date tehnice
Specificații tehnice
| Length | 200.7 cm 79 in |
|---|---|
| Length (Tractor with Tires) | cm in |
| Length (basic tractor, rubber tires) | cm in |
| Length (basic tractor, rubber tires, option two) | cm in |
| Length (basic tractor, rubber tires, option three) | cm in |
| Width | 87.6 cm 34.5 in |
| Width (Over Rubber Tracks) | cm in |
| Width (Over Rubber Tires) | cm in |
| Width (basic tractor, rubber tires) | cm in |
| Width (basic tractor, rubber tires, option two) | cm in |
| Width (basic tractor, rubber tires, option three) | cm in |
| Height | 121.9 cm 48 in |
| Height (basic tractor, rubber tires) | cm in |
| Height (basic tractor, rubber tires, option two) | cm in |
| Height (basic tractor, rubber tires, option three) | cm in |
| Weight | 703.1 kg 1550 lbs |
| Weight (Tractor with Tires) | kg lbs |
| Weight (basic tractor, rubber tires) | kg lbs |
| Weight (basic tractor, rubber tires, option two) | kg lbs |
| Weight (basic tractor, rubber tires, option three) | kg lbs |
| Ground Clearance (rubber tires) | cm in |
| Ground Clearance (rubber tires, option two) | cm in |
| Ground clearance (rubber tires, option three) | cm in |
| Ground clearance (rubber tires, option three) | cm in |
| Ground clearance (rubber tires, option three) | cm in |
| Angle of approach (basic tractor, rubber tires) | — deg |
| Angle of approach (basic tractor, rubber tires, option two) | — deg |
| Angle of approach (basic tractor, rubber tires, option three) | — deg |
| Angle of approach (basic tractor, rubber tires, option three) | — deg |
| Angle of approach (basic tractor, rubber tires, option three) | — deg |
| Make and Model | Kohler Command PRO ECH740 |
|---|---|
| Manufacturer's gross hp rating | kw hp |
| Maximum Torque | Nm ft-lb |
| Fuel Type | Gas |
| Gross Horsepower | 18.6 kw 25 hp |
| Horsepower at Maximum RPM (Gross) | 18.6 kw 25 hp |
| Displacement | .7 L 45 cu-in |
| Number of Cylinders | — 2 |
| Cooling Medium | Forced air |
| Aspiration | Natural |
| Emissions rating | — |
| Make and Model | — |
|---|---|
| Fuel Type | — |
| Gross Horsepower | kw hp |
| Displacement | L cu-in |
| Number of Cylinders | — — |
| Cooling Medium | — |
| Aspiration | — |
| Maximum Operating Angle (Fore/Aft)* | — deg |
| Maximum Operating Angle (Left/Right)* | — deg |
| Attachment Pump Relief Pressure (Trencher/Forward) | 205.1 bar 2975 psi |
|---|---|
| Ground Drive Pump Relief Pressure Forward/Reverse | 199.9 bar 2900 psi |
| Ground Drive Pump gpm at Maximum Engine RPM | 43.2 L/min 11.4 gpm |
| Hydraulic Supply Filter Rating | 10 micron nominal |
| Attachment Pump gpm at Maximum Engine RPM | 60.9 L/min 16.1 gpm |
| Hydraulic Return Filter Rating | 10 micron nominal |
| Fuel Tank | 25.7 L 6.8 gal |
|---|---|
| Hydraulic Tank | 30.3 L 8 gal |
| Hydraulic System | 32.2 L 8.5 gal |
| Engine Oil | 1.9 L .5 gal |
| Coolant | L gal |
| Ground Drive Type | Hydrostatic |
|---|---|
| Clutch Type | — |
| Maximum Forward Transport Speed at Full Throttle | 5.6 km/h 3.5 mph |
| Maximum Reverse Transport Speed at Full Throttle | 4 km/h 2.5 mph |
