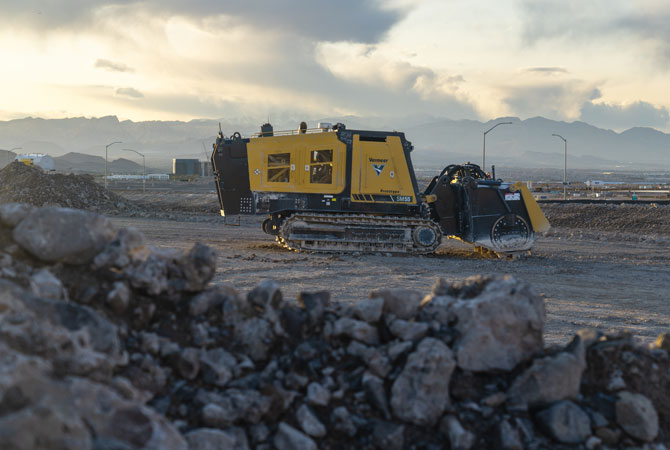

SM55 Surface Miner

Cere ofertă

⤢ Mărește

Pe scurt

Gross Horsepower: 309.5 kw 415 hp

Caracteristici & beneficii

Compact design for ease of transport
Operator comfort and safety
Cutting edge cutting technology
Highly maneuverable on tight jobsites

Broșuri & fișe tehnice

SM55 Spec Sheet PDF Descarcă

Date tehnice

Specificații tehnice

Approach Angle	— 15 deg
Height Range	136 in (345 cm)
Length with 20" (50.8 cm) End Idler and 2 ft (0.61 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 4 ft (1.22 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 5 ft (1.52 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 6 ft (1.83 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 8 ft (2.44 m) Boom	m ft
Length with 20" (50.8 cm) End Idler and 10 ft (3.05 m) Boom	m ft
Length with 30" (76.2 cm) End Idler and 4 ft (1.22 m) Boom	m ft
Length with 30" (76.2 cm) End Idler and 5 ft (1.52 m) Boom	m ft
Length with 30" (76.2 cm) End Idler and 6 ft (1.83 m) Boom	m ft
Length with 40" (101.6 cm) End Idler and 4 ft (1.22 m) Boom	m ft
Length with 40" (101.6 cm) End Idler and 5 ft (1.52 m) Boom	m ft
Length with 40" (101.6 cm) End Idler and 6 ft (1.83 m) Boom	m ft
Length with 40" (101.6 cm) End Idler and 8 ft (2.44 m) Boom	m ft
Length with 40" (101.6 cm) End Idler and 10 ft (3.05 m) Boom	m ft
Length with 40" (101.6 cm) End Idler and 12 ft (3.66 m) Boom	m ft
Length with 40" (101.6 cm) End Idler and 14 ft (4.27 m) Boom (with Restraint Bar)	m ft
Length with 50" (127 cm) End Idler and 8 ft (2.44 m) Boom	m ft
Length with 50" (127 cm) End Idler and 10 ft (3.05 m) Boom	m ft
Length with 50" (127 cm) End Idler and 12 ft (3.66 m) Boom	m ft
Length with 50" (127 cm) End Idler and 14 ft (4.27 m) Boom (with Restraint Bar)	m ft
Length with 50" (127 cm) End Idler and 16 ft (4.88 m) Boom (with Restraint Bar)	m ft
Length with 50" (127 cm) End Idler and 18 ft (5.49 m) Boom (with Restraint Bar)	m ft
Length	889 cm 350 in
Weight Range	120,000 lb (54,431.08)
Width Ranges	136 in (345.4 cm)

Make and Model	Caterpillar C13 ACERT Tier 4 Final
Gross Horsepower	309.5 kw 415 hp
Rated Engine RPM	— 2100
Number of Cylinders	— 6
Fuel Tank Capacity	870.6 L 230 gal
Operating Range	11 hours
Fuel Consumption at Full Load	79.5 lph 21 gph
Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles)	— 35 deg
Air Cleaner	Dry-type, exhaust-aspirated
Aspiration	Turbocharged and air-to-air after cooled
Cooling Medium	Liquid
Electrical System	24-volt DC
Oil Filter	Full flow
Horsepower at Maximum RPM (Gross)	309.5 kw 415 hp

Make and Model	—
Gross Horsepower	kw hp
Rated Engine RPM	— —
Number of Cylinders	— —
Fuel Tank Capacity	L gal
Operating Range	—
Fuel Consumption at Full Load	lph gph
Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles)	— deg
Air Cleaner	—
Aspiration	—
Cooling Medium	—
Electrical System	—
Oil Filter	—
Maximum Horsepower at Maximum RPM (Gross)	kw hp

Auto Self Level	No
Ground Pressure Minimum	148.2 kPa 21.5 psi
Ground Pressure Maximum	158.6 kPa 23 psi
Tilt Track Available	No
Tilt Track Max Angle	—
Track Drive Type	Dual path hydrostatic with planetary transmission
Track Length	327.7 cm 129 in
Track Pad Type	Double grouser
Track Pad Width Ranges	18 in (46 cm)
Track Size	—
Maximum Ground Speed - Low	16.5 m/min 54 ft/min
Maximum Ground Speed - High	32.9 m/min 108 ft/min
Parking and Emergency Brake	Spring-applied, hydraulic release, wet disc brake
Service Brakes	Hydrostatic

Belt Width	cm in
Conveyor Belt Speed Range	—
Conveyor Belt Style	—
Conveyor Length	—
Conveyor Shift Available	—
Conveyor Shift Distance Range	—
Conveyor Style	—
Discharge Direction	—
Discharge Height Range	—

Trencher	No
Terrain Leveler	Yes
Terrain Leveler cutting width	cm in
Rockwheel	No
Bucket Wheel	No

Cab	—
Control System	G4
Air Conditioner/Heater	No
Air Suspension Seat	No
AM/FM Stereo with Weather Band	No
Elevating	No
Pressurized/Filtered Air	—
Rollover Protective Structure (ROPM)	—

Oil Tank Capacity	889.6 L 235 gal
Oil Type	Vermeer HyPower 68, Vermeer HyPower 100 or Vermeer HyPower 1100
Pressure Setting	bar psi
Pump Flow at Maximum RPM	L/min gpm
Pump Type	Pressure-and-flow-compensated (load-sensing)
