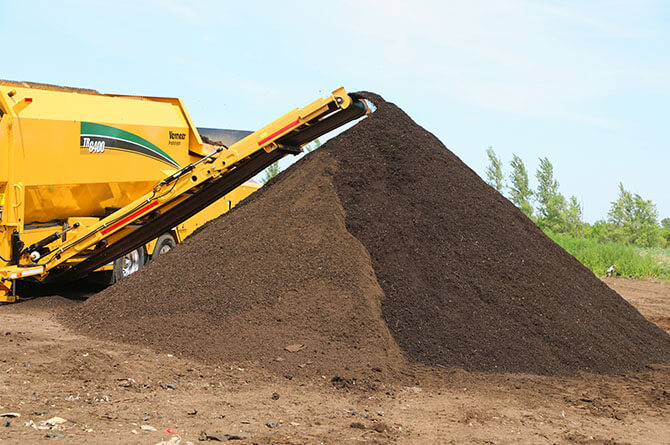

TR6400EU Trommel Screen
Designed with toughness, compactness and ease of maintenance in mind.
Vermeer
⤢ Mărește
Pe scurt
- Drum Diameter
- 2 m 6.5 ft
Caracteristici & beneficii
- Tough and compact design
- Quick change tensioned screens
- Complete control for maximized productivity
Broșuri & fișe tehnice
Date tehnice
Specificații tehnice
| Weight | 19005.5 kg 41900 lbs |
|---|---|
| Weight with third product conveyor | kg lbs |
| Hitch Weight | 997.9 kg 2200 lbs |
| Hitch weight with third product conveyor | kg lbs |
| Transport Length | 12.2 m 40 ft |
| Transport Width | 251.5 cm 99 in |
| Transport width with third product conveyor | — |
| Transport Height | 4 m 13.2 ft |
| Operation Length | 16.5 m 54.2 ft |
| Operation Width | 749.3 cm 295 in |
| Operation width | m ft |
| Operation width with third product conveyor | cm in |
| Operation Height | 5.1 m 16.7 ft |
| Capacity | Approximately 175 cu yd per hour (134 cu m per hour) with 0.5" (1.3 cm) screens installed and material with moisture less than 40% |
| Make and Model | Cat C3.6L Tier 4F (Stage V) |
|---|---|
| Motor rating | — |
| Number of Cylinders | — 4 |
| Engine Rating | 99 hp |
| Fuel Tank Capacity | 189.3 L 50 gal |
| Fuel Consumption | 3 gph (11.4 Lph) |
| Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) | — 35 deg |
| Battery | 950 CCA |
| Oil Filter | Spin-on |
| Recommended Oil | Mobil 15W40 |
| Oil Volume with Filter | 10.6 L 11.2 qt |
| System Voltage | 12 V, 120 amp alternator |
| Air Cleaner | Dual element |
| Radiator Fan | Suction |
| Make and Model | — |
|---|---|
| Number of Cylinders | — — |
| Engine Rating | — |
| Fuel Tank Capacity | L gal |
| Fuel Consumption | — |
| Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) | — deg |
| Battery | — |
| Oil Filter | — |
| Oil Volume with Filter | L qt |
| System Voltage | — |
| Air Cleaner | — |
| Radiator Fan | — |
| Make and Model | — |
|---|---|
| Motor rating | — |
| System Voltage | — |
| AC panel | — |
| Operation | 77.8 gpm @ 3000 psi (294.5 L/min @ 207 bar) |
|---|---|
| Tank capacity | 302.8 L 80 gal |
| Frame Description | Four independent hydraulic jacklegs |
|---|---|
| Axle/Suspension | Leaf spring |
| Capacity | kg lbs |
| Tires - Option One | 385/65 R22.5 (J) |
| Hopper Capacity | 5 cu m 6.5 cu yd |
|---|---|
| Hopper Bottom Width | 95.3 cm 37.5 in |
| Hopper Conveyor Speed | — |
| Hopper Opening Height | cm in |
| Hopper Opening Width | cm in |
| Apron Conveyor Speed | 0-15 ft/min |
| Apron Opening Height | 114.3 cm 45 in |
| Apron Opening Width | 95.3 cm 37.5 in |
| Hopper Height | 9.5' from ground level at operating incline |
| Hopper Opening | 11.7' x 5.3' |
| Apron Conveyor Length | 3.8 m 12.4 ft |
| Apron Conveyor Belt Width | 106.7 cm 42 in |
| Apron Conveyor Rollers | 5" CEMA "D" x 17 |
| Hopper Conveyor Length | m ft |
| Hopper Conveyor Belt Width | cm in |
| Hopper Conveyor Rollers | — |
| Drum Operation | 0-33.1 gpm (0-125.3 L/min) |
|---|---|
| Drum Motor | 35.5 cu in (630 cu cm) displacement |
| Drum Diameter | 2 m 6.5 ft |
| Drum Support Description | 8 polyurethane trunnion wheels on pivoting bogeys 8" od x 4" wide |
| Drum Length | 6 m 19.7 ft |
| Thrust Bearing Diameter | 10.2 cm 4 in |
| Thrust Bearing Face | 5.1 cm 2 in |
| Drum Speed | 0-25 rpm |
| Drum Drive Chain | 140 extended pin/extended width |
| Drum Angle Adjustability | 0-5 degrees |
| Maximum Screen Panels | — 8 |
| Brush Diameter | 35.6 cm 14 in |
|---|---|
| Bristle Material | Polyethylene |
| Brush Assembly Support | Two 1.25" sealed ball bearings/brush |
| Conveyor Motor Displacement | 273.7 cu-cm 16.7 cu-in |
|---|---|
| Collecting Conveyor Length | m ft |
| Maximum Collecting Belt Speed | m/min ft/min |
| Fines Conveyor Length | 4.9 m 16 ft |
| Maximum Fines Belt Speed | 109.7 m/min 360 ft/min |
| Conveyor Belt Width | 91.4 cm 36 in |
| Conveyor Belt Type | 220 lb (99.8 kg), 2 ply, 2/16" x 1/16" (4.8 mm x 1.6 mm) |
| Head/Tail Pulley Type | 8" crowned |
| Head Pulley Bearing | 1 3/4" double roller |
| Rubber Flashing | Adjustable corded rubber |
| Idler Type | 4" CEMA "B" straight |
| Tail Pulley Takeup | 15.2 cm 6 in |
| Self-Cleaning Return Idlers | 4" rubber disk x 3 |
| Fines Conveyor Frame | Part of trailer frame |
| Collecting conveyor frame | — |
| Conveyor Operation | L/min gpm |
|---|---|
| Conveyor Motor Displacement | cu-cm cu-in |
| Fines Conveyor Length | m ft |
| Maximum Fines Belt Speed | m/min ft/min |
| Conveyor Belt Width | cm in |
| Conveyor Belt Type | — |
| Conveyor Belt Stacking Height | — |
| Head Pulley Type | — |
| Head Pulley Bearing | — |
| Rubber Flashing | — |
| Troughing Idler Type | — |
| Self-Cleaning Tail Pulley Dimensions | — |
| Head Pulley Takeup | cm in |
| Tail Pulley Takeup | cm in |
| Self-Cleaning Return Idlers | — |
| Fines Conveyor Frame | — |
| Conveyor Operation | L/min gpm |
|---|---|
| Conveyor Motor Displacement | 232.7 cu-cm 14.2 cu-in |
| Fines Conveyor Length | 7.2 m 23.5 ft |
| Maximum Fines Belt Speed | 121.9 m/min 400 ft/min |
| Conveyor Belt Width | 91.4 cm 36 in |
| Conveyor Belt Type | 220 lb (99.8 kg), 2 ply, 2/16" x 1/16" (4.8 mm x 1.6 mm) smooth |
| Conveyor Belt Stacking Height | 10.5 ft (3.2m) (conveyor @ 25 degrees) |
| Head Pulley Type | 8" crowned |
| Head Pulley Bearing | 1.5" pillow block |
| Rubber Flashing | — |
| Troughing Idler Type | 20 degrees CEMA "B" with permanently sealed bearings spaced at 40" centers |
| Self-Cleaning Tail Pulley Dimensions | 8" diameter, 38" wide, crowned wing pulley, 1.75" shaft |
| Head Pulley Takeup | 20.3 cm 8 in |
| Tail Pulley Takeup | cm in |
| Self-Cleaning Return Idlers | 2, 4" diameter, 1, 5" diameter, "rattle roller" |
| Fines Conveyor Frame | Engineered structural frame |
| Conveyor Operation | L/min gpm |
|---|---|
| Conveyor Motor Displacement | cu-cm cu-in |
| Fines Conveyor Length | m ft |
| Maximum Fines Belt Speed | m/min ft/min |
| Conveyor Belt Width | cm in |
| Conveyor Belt Type | — |
| Conveyor Belt Stacking Height | — |
| Head/Tail Pulley Type | — |
| Head Pulley Bearing | — |
| Rubber Flashing | — |
| Troughing Idler Type | — |
| Self-Cleaning Tail Pulley Dimensions | — |
| Idler Type | — |
| Head Pulley Takeup | cm in |
| Tail Pulley Takeup | cm in |
| Self-Cleaning Return Idlers | — |
| Fines Conveyor Frame | — |
| Overs Conveyor Length | 5.9 m 19.2 ft |
|---|---|
| Maximum Variable Overs Belt Speed | 109.7 m/min 360 ft/min |
| Conveyor Belt Size | 42 in (106.7 cm) |
| Conveyor Belt Type | 220 lb (99.8 kg), 2 ply, 2/16" x 1/16" (4.8 mm x 1.6 mm) cleated |
| Conveyor Belt Stacking Height | 9' (2.74 m) (conveyor @ 25 degrees) |
| Head Pulley Type | 8" crowned |
| Head Pulley Bearing | 1.5" pillowed block |
| Self-Cleaning Tail Pulley Dimensions | 8" diameter, 44" wide, crowned wing pulley, 1.75" shaft |
| Head Pulley Takeup | 20.3 cm 8 in |
| Tail Pulley Takeup | cm in |
| Self-Cleaning Return Idlers | 2, 4" diameter; 1, 5" diameter, "rattle roller" |
| Solid Return Idler Size | — |
| Overs Conveyor Frame | Engineered structural frame |
| Troughing Idler Type | 20 degrees CEMA "B" with permanently sealed bearings spaced at 32" centers |
| Overs Conveyor Length | m ft |
|---|---|
| Maximum Variable Overs Belt Speed | m/min ft/min |
| Conveyor Belt Size | — |
| Conveyor Belt Type | — |
| Conveyor Belt Stacking Height | — |
| Head Pulley Type | — |
| Head Pulley Bearing | — |
| Self-Cleaning Tail Pulley Dimensions | — |
| Head Pulley Takeup | cm in |
| Rubber disc return idler size | — |
| Rattler roller return idler size | — |
| Overs Conveyor Frame | — |
