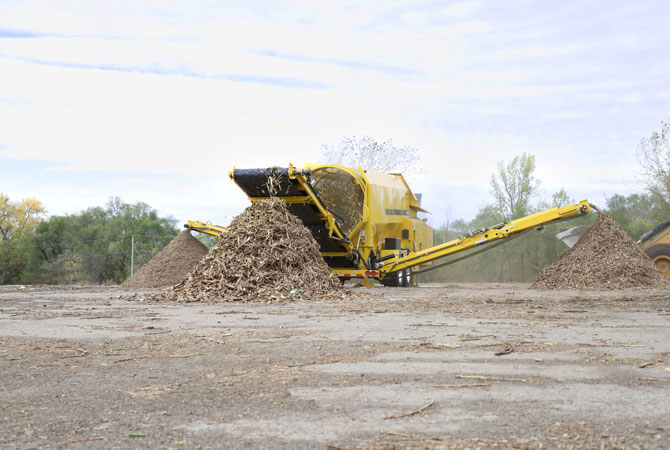

TR6450 Trommel Screen
Dominate the divide with three cuts and maximum mobility.
Vermeer
⤢ Mărește
Pe scurt
- Drum Diameter
- 2 m 6.5 ft
Caracteristici & beneficii
- Class-leading jobsite versatility features
- Complete control at the hands of the operator
- Spend less time on maintenance and more time being productive
Broșuri & fișe tehnice
Date tehnice
Specificații tehnice
| Weight | 17690.1 kg 39000 lbs |
|---|---|
| Weight with third product conveyor | kg lbs |
| Hitch Weight | 2404 kg 5300 lbs |
| Hitch weight with third product conveyor | kg lbs |
| Transport Length | 12 m 39.5 ft |
| Transport Width | 303.5 cm 119.5 in |
| Transport width with third product conveyor | — |
| Transport Height | 4 m 13.2 ft |
| Operation Length | 16.5 m 54.2 ft |
| Operation Width | cm in |
| Operation width | 13.2 m 43.3 ft |
| Operation width with third product conveyor | cm in |
| Operation Height | 5.1 m 16.7 ft |
| Capacity | 180 yd³ (137.6 m³) per hour with 0.5-in (1.3-cm) screens installed and material with moisture less than 40% |
| Make and Model | CAT 3.6L Tier 4F (Stage V) |
|---|---|
| Motor rating | — |
| Number of Cylinders | — 4 |
| Engine Rating | 120 hp (90 kW) |
| Fuel Tank Capacity | 189.3 L 50 gal |
| Fuel Consumption | 3 gph (11.4 L/hr) |
| Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) | — 35 deg |
| Battery | 950 CCA |
| Oil Filter | Spin-on |
| Recommended Oil | Mobil 15W40 |
| Oil Volume with Filter | 10.6 L 11.2 qt |
| System Voltage | 12-V, 120-amp alternator |
| Air Cleaner | Dual element |
| Radiator Fan | Suction |
| Make and Model | — |
|---|---|
| Number of Cylinders | — — |
| Engine Rating | — |
| Fuel Tank Capacity | L gal |
| Fuel Consumption | — |
| Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) | — deg |
| Battery | — |
| Oil Filter | — |
| Oil Volume with Filter | L qt |
| System Voltage | — |
| Air Cleaner | — |
| Radiator Fan | — |
| Make and Model | — |
|---|---|
| Motor rating | — |
| System Voltage | — |
| AC panel | — |
| Operation | — |
|---|---|
| Tank capacity | 302.8 L 80 gal |
| Frame Description | Four independent hydraulic jacklegs |
|---|---|
| Axle/Suspension | Leaf spring |
| Capacity | kg lbs |
| Tires - Option One | 445/50 R22.5 |
| Hopper Capacity | 5 cu m 6.5 cu yd |
|---|---|
| Hopper Bottom Width | 95.3 cm 37.5 in |
| Hopper Conveyor Speed | — |
| Hopper Opening Height | cm in |
| Hopper Opening Width | cm in |
| Apron Conveyor Speed | 0-15 ft/min |
| Apron Opening Height | 114.3 cm 45 in |
| Apron Opening Width | 95.3 cm 37.5 in |
| Hopper Height | 9.5 ft (2.9 m) from ground level at operating incline |
| Hopper Opening | 11.7 ft x 5.3 ft (3.6 m x 1.6 m) |
| Apron Conveyor Length | 3.8 m 12.4 ft |
| Apron Conveyor Belt Width | 106.7 cm 42 in |
| Apron Conveyor Rollers | 5 in (12.7 cm) CEMA "D" x 17 |
| Hopper Conveyor Length | m ft |
| Hopper Conveyor Belt Width | cm in |
| Hopper Conveyor Rollers | — |
| Drum Operation | 0-35.9 gpm (0-135.9 L/min) |
|---|---|
| Drum Motor | 35.5 in³ (630 cm³) displacement |
| Drum Diameter | 2 m 6.5 ft |
| Drum Support Description | 8 polyurethane trunnion wheels on pivoting bogeys 8 in x 4 in (20.3 cm x 10.2 cm) wide |
| Drum Length | 6.1 m 20 ft |
| Thrust Bearing Diameter | 10.2 cm 4 in |
| Thrust Bearing Face | 5.1 cm 2 in |
| Drum Speed | 0-25 rpm |
| Drum Drive Chain | 140 extended pin/extended width |
| Drum Angle Adjustability | 0-5 deg |
| Maximum Screen Panels | — 8 |
| Brush Diameter | 35.6 cm 14 in |
|---|---|
| Bristle Material | Polyethylene |
| Brush Assembly Support | (2) 1.25 in (3.2 cm) sealed ball bearings/brush |
| Conveyor Motor Displacement | 273.7 cu-cm 16.7 cu-in |
|---|---|
| Collecting Conveyor Length | 4.9 m 16 ft |
| Maximum Collecting Belt Speed | 109.7 m/min 360 ft/min |
| Fines Conveyor Length | m ft |
| Maximum Fines Belt Speed | m/min ft/min |
| Conveyor Belt Width | 91.4 cm 36 in |
| Conveyor Belt Type | 220 lb (99.8 kg), 2-ply, 2/16-in x 1/16-in (3.2-mm x 1.6-mm) |
| Head/Tail Pulley Type | 8-in (20.3-cm) crowned |
| Head Pulley Bearing | 1.75-in (4.4-cm) double roller |
| Rubber Flashing | Adjustable corded rubber |
| Idler Type | 4 in (10.2 cm) CEMA "B" straight |
| Tail Pulley Takeup | 15.2 cm 6 in |
| Self-Cleaning Return Idlers | (3) 4-in (10.2-cm) rubber disc |
| Fines Conveyor Frame | — |
| Collecting conveyor frame | Part of trailer frame |
| Conveyor Operation | L/min gpm |
|---|---|
| Conveyor Motor Displacement | 232.7 cu-cm 14.2 cu-in |
| Fines Conveyor Length | 7.5 m 24.5 ft |
| Maximum Fines Belt Speed | 152.4 m/min 500 ft/min |
| Conveyor Belt Width | 76.2 cm 30 in |
| Conveyor Belt Type | 220 lb (99.8 kg), 2-ply, 2/16-in x 1/16-in (3.2-mm x 1.6-mm) smooth |
| Conveyor Belt Stacking Height | 12.5 ft (3.8 m) (conveyor @ 30 deg) |
| Head Pulley Type | 8-in (20.3-cm) crowned |
| Head Pulley Bearing | 1.5-in (3.8-cm) pillow block |
| Rubber Flashing | — |
| Troughing Idler Type | 20 deg CEMA "B" with permanently sealed bearings spaced at 40-in centers |
| Self-Cleaning Tail Pulley Dimensions | 8-in (20.3-cm) diameter, 32-in (81.3-cm) wide, crowned wing pully, 1.75-in (4.4-cm) shaft |
| Head Pulley Takeup | 20.3 cm 8 in |
| Tail Pulley Takeup | cm in |
| Self-Cleaning Return Idlers | (5) 4-in (10.2-cm) diameter |
| Fines Conveyor Frame | Engineered structural frame |
| Conveyor Operation | L/min gpm |
|---|---|
| Conveyor Motor Displacement | 232.7 cu-cm 14.2 cu-in |
| Fines Conveyor Length | 7.2 m 23.5 ft |
| Maximum Fines Belt Speed | 121.9 m/min 400 ft/min |
| Conveyor Belt Width | 91.4 cm 36 in |
| Conveyor Belt Type | 220 lb (99.8 kg), 2-ply, 2/16-in x 1/16-in (3.2-mm x 1.6-mm) smooth |
| Conveyor Belt Stacking Height | 10.5 ft (3.2 m) (conveyor @ 30 deg) |
| Head Pulley Type | 8-in (20.3-cm) crowned |
| Head Pulley Bearing | 1.5-in (3.8-cm) pillow block |
| Rubber Flashing | — |
| Troughing Idler Type | 20 deg CEMA "B" with permanently sealed bearings spaced at 40-in (101.6-cm) centers |
| Self-Cleaning Tail Pulley Dimensions | 8-in (20.3-cm) diameter, 38-in (96.5-cm) wide, crowned wing pulley, 1.75-in (4.4-cm) shaft |
| Head Pulley Takeup | 20.3 cm 8 in |
| Tail Pulley Takeup | cm in |
| Self-Cleaning Return Idlers | (3) 4-in (10.2-cm) diameter |
| Fines Conveyor Frame | Engineered structural frame |
| Conveyor Operation | L/min gpm |
|---|---|
| Conveyor Motor Displacement | cu-cm cu-in |
| Fines Conveyor Length | m ft |
| Maximum Fines Belt Speed | m/min ft/min |
| Conveyor Belt Width | cm in |
| Conveyor Belt Type | — |
| Conveyor Belt Stacking Height | — |
| Head/Tail Pulley Type | — |
| Head Pulley Bearing | — |
| Rubber Flashing | — |
| Troughing Idler Type | — |
| Self-Cleaning Tail Pulley Dimensions | — |
| Idler Type | — |
| Head Pulley Takeup | cm in |
| Tail Pulley Takeup | cm in |
| Self-Cleaning Return Idlers | — |
| Fines Conveyor Frame | — |
| Overs Conveyor Length | 5.9 m 19.2 ft |
|---|---|
| Maximum Variable Overs Belt Speed | 109.7 m/min 360 ft/min |
| Conveyor Belt Size | 42 in (106.7 cm) |
| Conveyor Belt Type | 220 lb (99.8 kg), 2-ply, 2/16-in x 1/16-in (3.2-mm x 1.6-mm) cleated |
| Conveyor Belt Stacking Height | 9 ft (2.74 m) (conveyor @ 25 deg) |
| Head Pulley Type | 8-in (20.3-cm) crowned |
| Head Pulley Bearing | 1.5-in (3.8-cm) pillow block |
| Self-Cleaning Tail Pulley Dimensions | 8-in (20.3-cm) diameter, 44-in (111.8-cm) wide, crowned wing pulley, 1.75-in (4.4-cm) shaft |
| Head Pulley Takeup | 20.3 cm 8 in |
| Tail Pulley Takeup | cm in |
| Self-Cleaning Return Idlers | (2) 4-in (10.2-cm) diameter, (1) 5-in (12.7-cm) "rattle roller" |
| Solid Return Idler Size | — |
| Overs Conveyor Frame | Engineered structural frame |
| Troughing Idler Type | 20 degrees CEMA "B" with permanently sealed bearings spaced at 32-in (81.3-cm) centers |
| Overs Conveyor Length | m ft |
|---|---|
| Maximum Variable Overs Belt Speed | m/min ft/min |
| Conveyor Belt Size | — |
| Conveyor Belt Type | — |
| Conveyor Belt Stacking Height | — |
| Head Pulley Type | — |
| Head Pulley Bearing | — |
| Self-Cleaning Tail Pulley Dimensions | — |
| Head Pulley Takeup | cm in |
| Rubber disc return idler size | — |
| Rattler roller return idler size | — |
| Overs Conveyor Frame | — |
