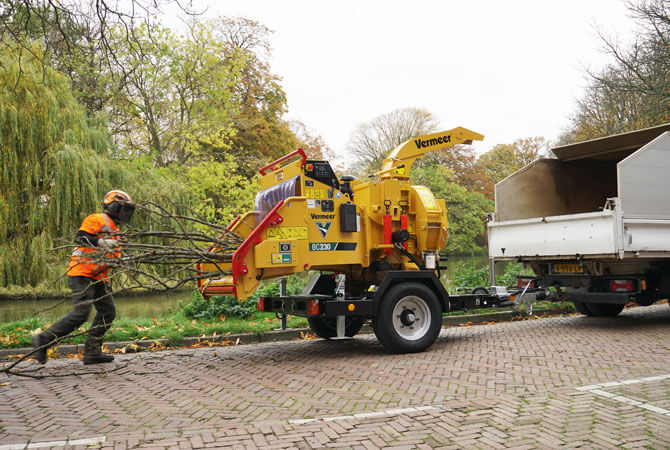

BC230 Brush Chipper
The BC230 is built tough to support your daily operations and surpass expectations.
Vermeer
⤢ Mărește
Pe scurt
- Gross Horsepower (Maximum)
- 55.2 kw 74 hp
Caracteristici & beneficii
- A 74-hp (55-kW ) Stage V CAT ® diesel engine
- Convenient turntable
- Twin horizontal feed rollers with offset
Broșuri & fișe tehnice
Date tehnice
Specificații tehnice
| Length - Feed Table Up, Tongue In | cm in |
|---|---|
| Length - Table Down, Tongue Extended | cm in |
| Length - Tongue In | cm in |
| Length - Tongue Extended (Additional) | cm in |
| Width | 188 cm 74 in |
| Height | 261.6 cm 103 in |
| Weight (without winch and hydraulic jack) | kg lbs |
| Weight (with winch, hydraulic jack and hydraulic chute) | kg lbs |
| Weight with outriggers (additional) | kg lbs |
| Weight - Engine Option One | 2150 kg 4740 lbs |
| Weight - Engine Option Two | kg lbs |
| Weight - Engine Option Three | kg lbs |
| Weight - Engine Option Four | kg lbs |
| Tongue Weight - Engine Option One | 99.8 kg 220 lbs |
| Tongue Weight - Engine Option Two | kg lbs |
| Tongue Weight - Engine Option Three | kg lbs |
| Length with Winch (Additional) | cm in |
| Weight With Winch (Additional) | kg lbs |
| Weight With Loader (Additional) | kg lbs |
| Weight With Steel Tracks (Additional) | kg lbs |
| Sound Power | 126 dB(A) |
| Sound Power - Engine Option Two | — |
| Sound Power - Engine Option Three | — |
| Horsepower Options | — |
| Make and Model | Cat 2.2 stage V |
|---|---|
| Number of Cylinders | — 4 |
| Gross Horsepower (Maximum) | 55.2 kw 74 hp |
| Torque (Max) | 271.2 Nm 200 ft-lb |
| Fuel Tank Capacity | 49.2 L 13 gal |
| Max Fuel Consumption | 9 lph 2.4 gph |
| Fuel Type | Ultra low sulfur diesel |
| Air Cleaner | Donaldson 2 Stage Dry |
| Oil Filter | Spin on |
| Recommended Oil | SAE 10W or SAE 10W-30 |
| Oil Volume with Filter | 11 L 11.6 qt |
| Maximum Angle of Continuous Operation | — 30 deg |
| Cooling Medium | Liquid |
| Coolant Capacity (Engine and Radiator) | 6.4 L 1.7 gal |
| Alternator | 85 amps Cat |
| Fan | 419 mm suction |
| Clutch Type | Idler tensioned |
| Clutch Drive Engagement | Manual over center arm |
| Make and Model | — |
|---|---|
| Weight | kg lbs |
| Tongue Weight | kg lbs |
| Number of Cylinders | — — |
| Gross Horsepower (Maximum) | kw hp |
| Torque (Max) | Nm ft-lb |
| Fuel Tank Capacity | L gal |
| Max Fuel Consumption | lph gph |
| Fuel Type | — |
| Air Cleaner | — |
| Oil Filter | — |
| Recommended Oil | — |
| Oil Volume with Filter | L qt |
| Maximum Angle of Continuous Operation | — deg |
| Coolant Capacity (Engine and Radiator) | L gal |
| Cooling Medium | — |
| Alternator | — |
| Fan | — |
| Clutch Type | — |
| Clutch Drive Engagement | — |
| Make and Model | — |
|---|---|
| Weight | kg lbs |
| Tongue Weight | kg lbs |
| Number of Cylinders | — — |
| Gross Horsepower (Maximum) | kw hp |
| Torque (Max) | Nm ft-lb |
| Fuel Tank Capacity | L gal |
| Max Fuel Consumption | lph gph |
| Fuel Type | — |
| Air Cleaner | — |
| Oil Filter | — |
| Recommended Oil | — |
| Oil Volume with Filter | L qt |
| Maximum Angle of Continuous Operation | — deg |
| Cooling Medium | — |
| Coolant Capacity (Engine and Radiator) | L gal |
| Alternator | — |
| Fan | — |
| Clutch Type | — |
| Clutch Drive Engagement | — |
| Make and Model | — |
|---|---|
| Number of Cylinders | — — |
| Gross Horsepower (Maximum) | kw hp |
| Torque (Max) | Nm ft-lb |
| Fuel Type | — |
| Air Cleaner | — |
| Fuel Tank Capacity | L gal |
| Oil Filter | — |
| Recommended Oil | — |
| Oil Volume with Filter | L qt |
| Cooling Medium | — |
| Coolant Capacity (Engine and Radiator) | L gal |
| Alternator | — |
| Fan | — |
| Clutch Type | — |
| Power | kw hp |
|---|---|
| Voltage | — |
| Phase | — |
| Enclosure | — |
| Full Load Amps | — |
| Full load RPM | — rpm |
| Power | kw hp |
|---|---|
| Voltage | — |
| Phase | — |
| Enclosure | — |
| Full Load Amps | — |
| Full load RPM | — rpm |
| Power | kw hp |
|---|---|
| Voltage | — |
| Phase | — |
| Enclosure | — |
| Full Load Amps | — |
| Full load RPM | — rpm |
| Power | kw hp |
|---|---|
| Voltage | — |
| Phase | — |
| Enclosure | — |
| Full Load Amps | — |
| Full load RPM | — rpm |
| Feed Roller Orientation | Horizontal, offset lower |
|---|---|
| Number of Feed Rollers | 2 |
| Feed Roller Clamp Load | 492.6 kg 1086 lbs |
| Feed Roller Clamp Type | 4 springs |
| Feed Roller Minimum Distance to Drum | 12.7 cm 5 in |
| Feed Roller Dimension | 16 in (40 cm) |
| Number of Knives | — 10 |
| Weight of Feed Roller | 38.6 kg 85 lbs |
| Feed Roller Dimension (Two) | 10 in (26 cm) |
| Number of Knives (2) | — 12 |
| Weight of Feed Roller (Option Two) | 21.8 kg 48 lbs |
| Number of Feed Roller Motors | — |
| Motor Displacement | Upper: 555cc, Lower: 350cc |
| Motor Manufacturer | Danfoss |
| Feed Speed | — 110 ft/min |
| Motor displacement (option two) | — |
| Motor manufacturer (option two) | — |
| Feed speed (option two) | m/min ft/min |
| Infeed Table Width | 124.5 cm 49 in |
| Infeed Table Length | 63.5 cm 25 in |
| Infeed Hopper Height | 81.3 cm 32 in |
| Infeed Throat Capacity | 14 in x 9 in ( 35.5 cm x 23 cm) |
| Pinch Point - Distance to End of Feed Table | 160 cm 63 in |
| Distance from Feed Table to Ground | 76.2 cm 30 in |
| Infeed Table Material Thickness | .5 cm .2 in |
| Bottom Feed Stop Bar | Pivoting, spring return |
|---|---|
| Bottom Feed Stop Bar Diameter | 5.1 cm 2 in |
| Bottom Feed Stop Bar Material Thickness | 0.12 in (3 mm) |
| Actuation Force (BFSB) | 15 kg 33.1 lbs |
| Normal Sensitivity | — 52 deg |
| Reduced Sensitivity | — deg |
| Reset Method | Push button |
| Four Position Feed Control Bar | — |
| Diameter | cm in |
| Material Thickness | cm in |
| Positions | — |
| Actuation Force | kg lbs |
| Green Hold to Run Button | — |
| Material Capacity | 22.9 cm 9 in |
|---|---|
| Width | cm in |
| Thickness | 2.5 cm 1 in |
| Diameter | 76.2 cm 30 in |
| Speed | 1365 rpm |
| Weight With Shaft | 152.9 kg 337 lbs |
| Safety Lock - Number of Positions | 2 |
| Number of Knives | — 2 |
| Knife Thickness | 1.6 cm .6 in |
| Material | A8 chipper steel |
| Useable Edges | 2 |
| Knife Size | 5 in x 12 in (13 cm x 30 cm) |
| Number of Bolts/Knife | 5 |
| Replaceable Threaded Knife Block | — |
| Number of Paddles | 2 |
| Fixture Method | Bolted |
| Air Flow | — 1400 cfm |
| Bedknife Size | Upper: 9 in x 5 in (22 cm x 13 cm), Lower: 12 in x 5 in (30 cm x 13 cm) |
| Bedknife Thickness | 1.9 cm .8 in |
| Bedknife Material | S355J2 |
| Bedknife - Number of Useable Edges | 2 |
| Number of Bearings | — 2 |
|---|---|
| Bore | 5.6 cm 2.2 in |
| Type | Dual-spherical roller |
| Manufacturer | Timken |
| Dynamic Capacity | 14741.8 kg 32500 lbs |
| Static Capacity | 20139.5 kg 44400 lbs |
| Belt Idler/Tensioner | Idler arm, manually adjusted |
| Belt Type | 3 rib, classic B profile, Aramid cord construction |
| Number of Bearings | — — |
|---|---|
| Bore | cm in |
| Type | — |
| Manufacturer | — |
| Dynamic Capacity | kg lbs |
| Static Capacity | kg lbs |
| Belt Idler/Tensioner | — |
| Belt Type | — |
| Number of Bearings | — — |
|---|---|
| Bore | cm in |
| Type | — |
| Manufacturer | — |
| Dynamic Capacity | kg lbs |
| Static Capacity | kg lbs |
| Belt Idler/Tensioner | — |
| Belt Type | — |
| Chute Height | 248.9 cm 98 in |
|---|---|
| Bottom Thickness | .3 cm .1 in |
| Top Thickness | .3 cm .1 in |
| Side Wall Thickness | .3 cm .1 in |
| Deflector Thickness | .2 cm .1 in |
| Chute Rotation Angle | — 270 deg |
| Rotation Type | Manual |
| Rotational Lock | Spring pin |
| Tank capacity | 25.7 L 6.8 gal |
|---|---|
| Recommended Oil Type | Shell Tellus 68 |
| System Type | Fixed flow, open circuit |
| Filtration Method | Suction: 100 mesh; Return: 10 micron |
| Pump Flow at Maximum RPM | 15.1 L/min 4 gpm |
| System relief pressure | 206.8 bar 3000 psi |
| Auto Reverse PSI | 158.6 bar 2300 psi |
| Flow Control | — |
| Directional Control | 12 V solenoid-controlled |
| Oil Cooler | — |
| System Voltage | 12 V |
|---|---|
| Battery | 12 V dC, 70 A/h, 760 CCA |
| Standard Gauges | — |
| Deluxe Gauges | — |
| Switches | Pizzato |
| Controller | MPC12 |
| Display | MPC12 |
| Shutdown System | CAT ECU |
| Radio Remote Control | — |
| Frame Description | Ladder frame chassis, S-shaped rails |
|---|---|
| Toolbox Description | — |
| Tongue Description | Welded, rectangular tube |
| Tongue Extension | — |
| Hitch Type | Knott KRV30-B 50-mm ball |
| Fender Description | Bolt-on steel |
| Axle/Suspension | Rubber torsion, 3,000-kg (5,511.6-lb) capacity |
| Type - Option One | GB30 |
| Manufacturer - Option One | Knott |
| Capacity - Option One | 1250 kg |
| Tires - Option One | 225/70R15 C-8 |
| Wheels - Option One | 6J x 15 ET0 6 x 205 |
| Axle/Suspension - Option Two | — |
| Type - Option Two | — |
| Manufacturer - Option Two | — |
| Capacity - Option Two | — |
| Tires - Option Two | — |
| Wheels - Option Two | — |
| Axle/Suspension - Option Three | — |
| Type - Option Three | — |
| Manufacturer - Option Three | — |
| Capacity - Option Three | — |
| Tires - Option Three | — |
| Wheels - Option Three | — |
| Brake Type | 300-mm x 60-mm drum, surge brake activated |
| Trailer Light Type | 13-pin connector, LED lights |
| Track Frame Description | — |
|---|---|
| Track Type | — |
| Track Width | — |
| Track Length on Ground | — |
| Type of Idler | — |
| Number of Idlers | — — |
| Track Drive Pump Type | — |
| Pump Flow at Maximum RPM | — |
| System Relief Pressure | — |
| Track Drive Motor Type | — |
| Track Brake Type | — |
| High Speed Travel | km/h mph |
| Low Speed Travel | km/h mph |
| Ground Bearing Pressure - Soft Ground | kPa psi |
| Ground Bearing Pressure - Hard Ground | kPa psi |
| Length | cm in |
|---|---|
| Width | cm in |
| Height | cm in |
| Weight | kg lbs |
| Winch Relief System | bar psi |
|---|---|
| Winch Boom Structure | — |
| Winch Input Speed | — rpm |
| Winch Controls | — |
| Winch Rope | — |
| Rope Length | m ft |
| Rope Line Pull | kg lbs |
| Rope Choker | — |
| Special Paint | Available |
|---|---|
| Extended Warranty | Available |
| Preventive Maintenance | Available |
| Adjustable Height Discharge Chute | — |
| Hydraulically Engaged Clutch | — |
| Remote Control | — |
| Hydraulic Outriggers | — |
| Hydraulic Chute Controls | — |
| Loader Relief Pressure | bar psi |
|---|---|
| Loader Boom Structure | — |
| Loader Reach | m ft |
| Loader Lift Capacity at Full Reach | kg lbs |
| Loader Maximum Lift Capacity | kg lbs |
| Loader Controls | — |
| Loader Rotation | — |
| Loader Grapple Rotation | — |
| Length - Feed Table Up, Tongue In | cm in |
|---|---|
| Length - Table Down, Tongue Extended | cm in |
| Width | cm in |
| Height | cm in |
| Weight (without winch and hydraulic jack) | kg lbs |
| Weight - Engine Option One | kg lbs |
| Tongue Weight - Engine Option One | kg lbs |
| Distance from Feed Table to Ground | cm in |
| Chute Height | cm in |
| Frame Description | — |
| Hitch Type | — |
| Type - Option One | — |
| Manufacturer - Option One | — |
| Capacity - Option One | — |
| Tires - Option One | — |
| Wheels - Option One | — |
| Length - Feed Table Up, Tongue In | cm in |
|---|---|
| Length - Table Down, Tongue Extended | cm in |
| Width | cm in |
| Height | cm in |
| Weight (without winch and hydraulic jack) | kg lbs |
| Weight - Engine Option One | kg lbs |
| Tongue Weight - Engine Option One | kg lbs |
| Distance from Feed Table to Ground | cm in |
| Chute Height | cm in |
| Frame Description | — |
| Hitch Type | — |
| Type - Option One | — |
| Manufacturer - Option One | — |
| Capacity - Option One | — |
| Tires - Option One | — |
| Wheels - Option One | — |
Video
Modele similare
Toate din Brush Chippers →
CE
BC200 Brush Chipper
The BC200 is built tough to support your daily business and surpass expectations.
- Gross Horsepower (Maximum)
- 33 kw 44.3 hp
CE
BC1000XL European Configuration Brush Chipper
The heavy-duty Vermeer BC1000XL brush chipper with its all-steel engine enclosure is designed to hold up for the long haul.
- Gross Horsepower (Maximum)
- 55.2 kw 74 hp
