Directional Drills
Conform CE

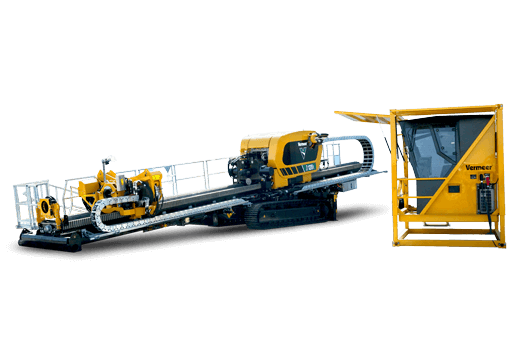

D120E HDD
Maxi-rig capabilities, efficiency, low sound and low emissions in a full-equipped drill.
Vermeer
⤢ Mărește
Pe scurt
- Thrust
- 1000 kN 224801 lbs
Caracteristici & beneficii
- High capability, low consumption
- Power on demand
- High-capability drill
Broșuri & fișe tehnice
Date tehnice
Specificații tehnice
| Length (Minimum Transport) | 15.4 m 50.5 ft |
|---|---|
| Width | 2.6 m 8.4 ft |
| Height (Minimum Transport) | 3.1 m 10.2 ft |
| Weight | 37499.8 kg 82673 lbs |
| Suspension | — |
| Front Base Anchor Length | m ft |
| Front Base Anchor Width | m ft |
| Front Base Anchor Height | cm in |
| Front Flat Anchor Length | m ft |
| Front Flat Anchor Width | m ft |
| Front Flat Anchor Height | cm in |
| Rear Base Anchor Length | m ft |
| Rear Base Anchor Width | m ft |
| Rear Base Anchor Height | cm in |
| Number of Rear Legs | Two |
| Drill Rack Angle | 6-20° (10.5-36.4%) |
| Length | 3 m 9.8 ft |
|---|---|
| Width | 2.4 m 8 ft |
| Height | 2.6 m 8.5 ft |
| Weight | 3999.8 kg 8818 lbs |
| Heat and Air Conditioning | Yes |
| Length | m ft |
|---|---|
| Width | m ft |
| Height | m ft |
| Weight | kg lbs |
| Make and Model | — |
| Fuel Type | — |
| Fuel Capacity | L gal |
| Hydraulic Tank Capacity | L gal |
| Maximum Engine RPM | — rpm |
| Gross Horsepower | kw hp |
| EPA Certification Family | — |
| Length | m ft |
|---|---|
| Width | m ft |
| Height | m ft |
| Weight | kg lbs |
| Make and Model | — |
| Fuel Type | — |
| Fuel Capacity | L gal |
| Hydraulic Tank Capacity | L gal |
| Maximum Engine RPM | — rpm |
| Gross Horsepower | kw hp |
| EPA Certification Family | — |
| Length | m ft |
|---|---|
| Width | m ft |
| Height | m ft |
| Weight | kg lbs |
| Make and Model | — |
| Fuel Type | — |
| Fuel Capacity | L gal |
| Hydraulic Tank Capacity | L gal |
| Maximum Engine RPM | — rpm |
| Gross Horsepower | kw hp |
| EPA Certification Family | — |
| Thrust | 1000 kN 224801 lbs |
|---|---|
| Pullback | 1200 kN 269761 lbs |
| Maximum Spindle Torque | 110000.4 Nm 81132 ft-lb |
| Maximum spindle torque at 30 rpm | Nm ft-lb |
| Maximum spindle torque at max rpm | Nm ft-lb |
| Maximum rotational spindle speed | — 80 rpm |
| Maximum Spindle Torque (Low at Maximum Engine RPM) | Nm ft-lb |
| Maximum Spindle Speed at Maximum Engine RPM (with PS800) | — rpm |
| Maximum Spindle Speed at Maximum Engine RPM (with PS1200/PS1600) | — rpm |
| Maximum Carriage Speed at Maximum Engine RPM | m/min ft/min |
| Maximum carriage speed | 30 m/min 98.4 ft/min |
| Number of Rotation Motors | Two |
| Number of Drive Motors | Two |
| Mud Swivel | 10.2 cm 4 in |
| Breakout Force | 219999.4 Nm 162263 ft-lb |
|---|---|
| Clamp force | 188,833 lb (840 kN) |
| Configuration | Semi-open top vise |
| Weight | 3600.2 kg 7937 lbs |
| Travel | m ft |
| Travel | Full travelling vise |
| Inside Diameter | 40.6 cm 16 in |
| Open-top opening | 25.4 cm 10 in |
| Clamp Force | Nm ft-lb |
|---|---|
| Configuration | — |
| Inside Diameter | cm in |
| Clamp force | 188,833 lb (840 kN) |
|---|---|
| Configuration | Carriage vise |
| Inside Diameter | 40.6 cm 16 in |
| Travel | 25.6 in (65 cm) |
| Remote Lockout | Yes |
|---|---|
| Strike Alert | Yes |
| Local lockout | Yes |
| Genset | 325 kVA - 350 kVA, 400V, 50Hz |
|---|---|
| Grid | — |
| Auxiliary hook-on genset for maneuvering and setup | 65 kVA |
| Drilling Lights | Yes |
|---|---|
| Floating shaft | Yes |
| Rear load tensioning wireline drum | Yes |
