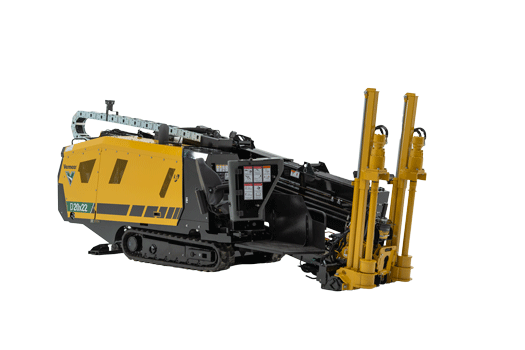

The D20x22 S3 Navigator® horizontal directional drill – power, speed, versatility and precise control.

⤢ Mărește

Pe scurt

Priced right and sized right for the short shots.
The smallest drill in its class, this drill is the perfect fit for working in congested urban areas with its narrow design.
Drill confidently. Designed for more uptime with key reliability updates.
Proven with over 4,000 built and retailed in the field. It's still the one.

Date tehnice

Length (Minimum Transport) - 10 ft (3 m)	cm in
Length (Minimum Transport) - 15 ft (4.6 m)	cm in
Length (Minimum Transport) - 20 ft (6.1 m)	cm in
Length (Minimum Transport)	581.7 cm 229 in
Width (Minimum Transport)	120.7 cm 47.5 in
Width (With Cab, Minimum Transport)	cm in
Height (Minimum Transport)	188 cm 74 in
Height (With Cab)	cm in
Height	cm in
Weight	5809.6 kg 12808 lbs
Weight - 15 ft (6.1 m)	kg lbs
Weight - 20 ft (6.1 m)	kg lbs
Weight (Cab Option)	kg lbs
Weight (Cab Option) - 15 ft (4.6 m)	kg lbs
Weight (Cab Option) - 20 ft (6.1 m)	kg lbs
Angle of Approach	— 18 deg
Angle of Approach - 10 ft (3 m)	— deg
Angle of Approach - 15 ft (4.6 m)	— deg
Angle of approach	—

Make and Model	Deutz TD2.9
Fuel Type	Low sulfur diesel
Maximum Engine RPM	— 2600 rpm
Idle Speed	— rpm
Rated RPM	— rpm
Gross Horsepower	55.2 kw 74 hp
Displacement	2.9 L 177 cu-in
Aspiration	Turbocharged
Cooling Method	Liquid
Max Fuel Consumption	lph gph
EPA Certification Family	—
Noise Level at Operator's Ear	86.5 dB(A)
Emissions rating	Tier 4i (EU Stage IIIA)
Maximum Operating Angle (Fore/Aft)*	—
Maximum Operating Angle (Left/Right)*	—

Make and Model	Deutz TD2.9
Fuel Type	Ultra-low sulfur diesel
Maximum Engine RPM	— 2600 rpm
Gross Horsepower	55.2 kw 74 hp
Displacement	2.9 L 177 cu-in
Aspiration	Turbocharged
Cooling Method	Liquid
Max Fuel Consumption	lph gph
Noise Level at Operator's Ear	91 dB(A)
Emissions rating	Tier 4 Final (EU Stage V)
Maximum Operating Angle (Left/Right)*	— deg
Maximum Operating Angle (Fore/Aft)*	— deg
Maximum Operating Angle (Left/Right)*	—
Maximum Operating Angle (Fore/Aft)*	—

Thrust	86.7 kN 19500 lbs
Max peak thrust	kN lbs
Continuous thrust	kN lbs
Pullback	86.7 kN 19500 lbs
Max peak pullback	kN lbs
Continuous pullback	kN lbs
Maximum Carriage Speed at Maximum Engine RPM	48.8 m/min 160 ft/min
Maximum Carriage Speed in Low at Maximum Engine RPM	34.7 m/min 114 ft/min
Maximum Spindle Torque (Low at Maximum Engine RPM)	3050.6 Nm 2250 ft-lb
Maximum Spindle Torque (Medium at Maximum Engine RPM)	Nm ft-lb
Maximum Spindle Torque (High at Maximum Engine RPM)	Nm ft-lb
Maximum Spindle Speed (Low at Maximum Engine RPM)	— rpm
Maximum Spindle Speed (Medium at Maximum Engine RPM)	— rpm
Maximum Spindle Speed at Max Engine RPM	— 257 rpm
Minimum Bore Diameter	7.6 cm 3 in
Maximum Ground Drive Speed at Maximum Engine RPM	5.3 km/h 3.3 mph
Automated Rod Loader	Semi-automated
Noise Level at Operator's Ear	—
Noise Level at Operator's Ear - 15 ft (4.6 m)	—
Noise Level at Operator's Ear - 20 ft (6.1 m)	—
Guaranteed sound power (CE-rating)	107 dB(A)
Drill Rack Angle	— 17 deg
Drill Rack Angle	—

Maximum Lifting Capacity	kg lbs
Maximum Lifting Capacity - Boom Extended/Max Reach	kg lbs
Rotation	— deg
Maximum Reach	cm in
Optional Crane	—
Umbilical Remote	—
Wireless Remote	—
