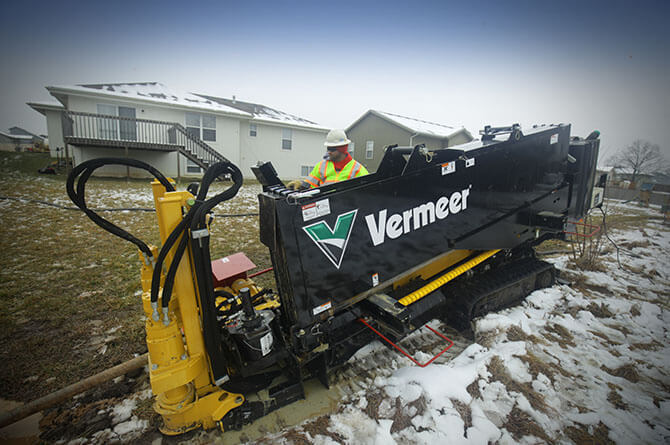

D23x30DR S3 HDD
For drilling in rock, you need a machine that can take on the tough jobs in tough ground conditions.
Vermeer
⤢ Mărește
Pe scurt
- Thrust
- 106.8 kN 24000 lbs
Caracteristici & beneficii
- Leads the way in rock drilling with dual rod technology in a compact footprint
- Quiet power for operator comfort and minimal jobsite disturbance
- Tooling options for precise steering and maximized wear life
Date tehnice
Specificații tehnice
| Length (Minimum Transport) - 10 ft (3 m) | cm in |
|---|---|
| Length (Minimum Transport) - 15 ft (4.6 m) | cm in |
| Length (Minimum Transport) - 20 ft (6.1 m) | cm in |
| Length (Minimum Transport) | 627.4 cm 247 in |
| Width (Minimum Transport) | 141 cm 55.5 in |
| Width (With Cab, Minimum Transport) | cm in |
| Height (Minimum Transport) | 222.3 cm 87.5 in |
| Height (With Cab) | cm in |
| Height | cm in |
| Weight | 7665.7 kg 16900 lbs |
| Weight - 15 ft (6.1 m) | kg lbs |
| Weight - 20 ft (6.1 m) | kg lbs |
| Weight (Cab Option) | kg lbs |
| Weight (Cab Option) - 15 ft (4.6 m) | kg lbs |
| Weight (Cab Option) - 20 ft (6.1 m) | kg lbs |
| Angle of Approach | — 17.5 deg |
| Angle of Approach - 10 ft (3 m) | — deg |
| Angle of Approach - 15 ft (4.6 m) | — deg |
| Angle of approach | — |
| Make and Model | Deutz TCD3.6L4 |
|---|---|
| Fuel Type | Diesel |
| Maximum Engine RPM | — 2000 rpm |
| Idle Speed | — rpm |
| Rated RPM | — rpm |
| Gross Horsepower | 74.6 kw 100 hp |
| Displacement | L cu-in |
| Aspiration | Turbo |
| Cooling Method | — |
| Max Fuel Consumption | 19.3 lph 5.1 gph |
| EPA Certification Family | — |
| Noise Level at Operator's Ear | — |
| Emissions rating | Tier 4 Final (EU Stage V) |
| Maximum Operating Angle (Fore/Aft)* | 30 |
| Maximum Operating Angle (Left/Right)* | 25 left/35 right |
| Make and Model | — |
|---|---|
| Fuel Type | — |
| Maximum Engine RPM | — rpm |
| Gross Horsepower | kw hp |
| Displacement | L cu-in |
| Aspiration | — |
| Cooling Method | — |
| Max Fuel Consumption | lph gph |
| Noise Level at Operator's Ear | — |
| Emissions rating | — |
| Maximum Operating Angle (Left/Right)* | — deg |
| Maximum Operating Angle (Fore/Aft)* | — deg |
| Maximum Operating Angle (Left/Right)* | — |
| Maximum Operating Angle (Fore/Aft)* | — |
| Make and Model | — |
|---|---|
| Fuel Type | — |
| Maximum Engine RPM | — rpm |
| Gross Horsepower | kw hp |
| Displacement | L cu-in |
| Cooling Method | — |
| Aspiration | — |
| Noise Level at Operator's Ear | — |
| Emissions rating | — |
| Thrust | 106.8 kN 24000 lbs |
|---|---|
| Max peak thrust | kN lbs |
| Continuous thrust | kN lbs |
| Pullback | 106.8 kN 24000 lbs |
| Max peak pullback | kN lbs |
| Continuous pullback | kN lbs |
| Maximum Carriage Speed at Maximum Engine RPM | 53.3 m/min 175 ft/min |
| Maximum Carriage Speed in Low at Maximum Engine RPM | m/min ft/min |
| Maximum Spindle Torque (Low at Maximum Engine RPM) | 4067.5 Nm 3000 ft-lb |
| Maximum Spindle Torque (Medium at Maximum Engine RPM) | Nm ft-lb |
| Maximum Spindle Torque (High at Maximum Engine RPM) | Nm ft-lb |
| Maximum Spindle Speed (Low at Maximum Engine RPM) | — rpm |
| Maximum Spindle Speed (Medium at Maximum Engine RPM) | — rpm |
| Maximum Spindle Speed at Max Engine RPM | — 200 rpm |
| Minimum Bore Diameter | 12.7 cm 5 in |
| Maximum Ground Drive Speed at Maximum Engine RPM | 5.3 km/h 3.3 mph |
| Automated Rod Loader | — |
| Noise Level at Operator's Ear | 80.3 dB(A) |
| Noise Level at Operator's Ear - 15 ft (4.6 m) | — |
| Noise Level at Operator's Ear - 20 ft (6.1 m) | — |
| Guaranteed sound power (CE-rating) | — |
| Drill Rack Angle | — deg |
| Drill Rack Angle | 13-19 deg (23.1-34.4%) |
| Fuel Tank | 132.5 L 35 gal |
|---|---|
| Hydraulic Tank | L gal |
| Hydraulic System | L gal |
| Maximum Flow | 132.5 L/min 35 gpm |
|---|---|
| Maximum Pressure | 75.8 bar 1100 psi |
| Brand | — |
| On Board Tank Capacity | L gal |
| Maximum Flow | L/min gpm |
|---|---|
| Maximum Pressure | bar psi |
| Brand | — |
| On Board Tank Capacity | L gal |
| Maximum Flow | L/min gpm |
|---|---|
| Maximum Pressure | bar psi |
| Brand | — |
| Maximum Flow | L/min gpm |
|---|---|
| Maximum Pressure | bar psi |
| Brand | — |
| Maximum Flow | L/min gpm |
|---|---|
| Maximum Pressure | bar psi |
| Brand | — |
| On Board Tank Capacity | L gal |
| Maximum Flow | L/min gpm |
|---|---|
| Maximum Pressure | bar psi |
| Brand | — |
| On Board Tank Capacity | L gal |
|---|---|
| Brand | — |
| Maximum Pressure | bar psi |
| Maximum Flow | L/min gpm |
| Maximum Lifting Capacity | kg lbs |
|---|---|
| Maximum Lifting Capacity - Boom Extended/Max Reach | kg lbs |
| Rotation | — deg |
| Maximum Reach | cm in |
| Optional Crane | — |
| Umbilical Remote | — |
| Wireless Remote | — |
| Breakout System | Sliding open-top vise |
|---|---|
| Drilling Lights | Standard |
| Flow Indicator | Mud flow indicator |
| Stakedown System | Standard |
| Cab | — |
| Strike Alert | Standard |
| Remote Lockout | Standard |
| Operator Presence | — |
| Drill Rod Thread | #625 |
|---|---|
| Thread Type | Firestick |
| Length | 3 m 10 ft |
| Rod Diameter | — |
| Joint Inside Diameter | 3.4 cm 1.3 in |
| Joint Outside Diameter | — |
| Weight | 34 kg 75 lbs |
| Minimum Bend Radius | 43.6 m 143 ft |
| Rodbox capacity | m ft |
| Drill Rod Thread | — |
|---|---|
| Thread Type | — |
| Length | m ft |
| Rod Diameter | — |
| Joint Inside Diameter | cm in |
| Joint Outside Diameter | — |
| Weight | kg lbs |
| Bend Radius | — |
| Rodbox capacity | m ft |
| Weight with cab | 7909.7 kg 17438 lbs |
|---|---|
| Width with cab | 182.9 cm 72 in |
| Height with cab | 238 cm 93.7 in |
| Weight with cab | kg lbs |
|---|---|
| Width with cab | cm in |
| Height with cab | cm in |
