Directional Drills Conform CE

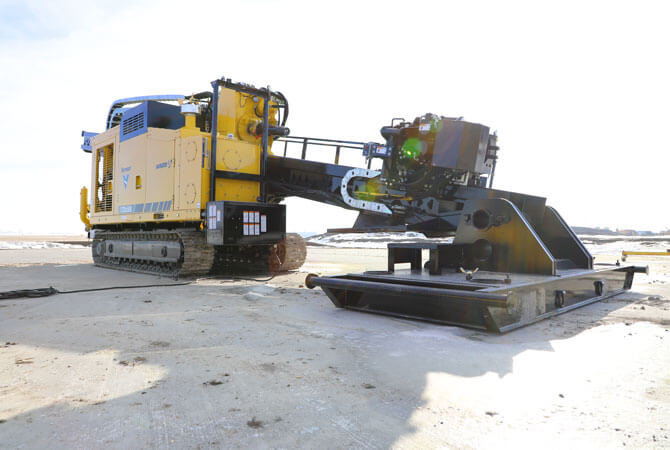

D220x500 S3 HDD

Power, capabilities and ultimate control over the configuration of your rig.

⤢ Mărește

Pe scurt

Versatile enough for large-diameter water and utility installs in urban areas as well as challenging pipeline work
Reduce number of tool joint connections
Access up and down the rack with full-length catwalk
Powerful performance for the job
AutoTension feature available

Date tehnice

Length (Minimum Transport) - 10 ft (3 m)	cm in
Length (Minimum Transport) - 15 ft (4.6 m)	cm in
Length (Minimum Transport) - 20 ft (6.1 m)	cm in
Length (Minimum Transport)	1313.7 cm 517.2 in
Width (Minimum Transport)	254 cm 100 in
Width (With Cab, Minimum Transport)	cm in
Height (Minimum Transport)	344.4 cm 135.6 in
Height (With Cab)	cm in
Height	cm in
Weight	40233.6 kg 88700 lbs
Weight - 15 ft (6.1 m)	kg lbs
Weight - 20 ft (6.1 m)	kg lbs
Weight (Cab Option)	kg lbs
Weight (Cab Option) - 15 ft (4.6 m)	kg lbs
Weight (Cab Option) - 20 ft (6.1 m)	kg lbs
Angle of Approach	— deg
Angle of Approach - 10 ft (3 m)	— deg
Angle of Approach - 15 ft (4.6 m)	— deg
Angle of approach	—

Make and Model	Caterpillar C13 ACERT Tier 4 Final (EU Stage V)
Fuel Type	Ultra low sulfur diesel
Maximum Engine RPM	— 2100 rpm
Idle Speed	— 800 rpm
Rated RPM	— 2000 rpm
Gross Horsepower	309.5 kw 415 hp
Displacement	L cu-in
Aspiration	Turbo charged
Cooling Method	Liquid
Max Fuel Consumption	80.6 lph 21.3 gph
EPA Certification Family	Tier 4 Final (EU Stage V)
Noise Level at Operator's Ear	—
Emissions rating	—
Maximum Operating Angle (Fore/Aft)*	30 deg
Maximum Operating Angle (Left/Right)*	30 deg

Make and Model	—
Fuel Type	—
Maximum Engine RPM	— rpm
Gross Horsepower	kw hp
Displacement	L cu-in
Aspiration	—
Cooling Method	—
Max Fuel Consumption	lph gph
Noise Level at Operator's Ear	—
Emissions rating	—
Maximum Operating Angle (Left/Right)*	— deg
Maximum Operating Angle (Fore/Aft)*	— deg
Maximum Operating Angle (Left/Right)*	—
Maximum Operating Angle (Fore/Aft)*	—

Thrust	1069.4 kN 240400 lbs
Max peak thrust	kN lbs
Continuous thrust	kN lbs
Pullback	1069.4 kN 240400 lbs
Max peak pullback	kN lbs
Continuous pullback	kN lbs
Maximum Carriage Speed at Maximum Engine RPM	44.8 m/min 147 ft/min
Maximum Carriage Speed in Low at Maximum Engine RPM	12.8 m/min 42 ft/min
Maximum Spindle Torque (Low at Maximum Engine RPM)	71316.1 Nm 52600 ft-lb
Maximum Spindle Torque (Medium at Maximum Engine RPM)	49080.7 Nm 36200 ft-lb
Maximum Spindle Torque (High at Maximum Engine RPM)	22506.6 Nm 16600 ft-lb
Maximum Spindle Speed (Low at Maximum Engine RPM)	— 36 rpm
Maximum Spindle Speed (Medium at Maximum Engine RPM)	— 53 rpm
Maximum Spindle Speed at Max Engine RPM	— 97 rpm
Minimum Bore Diameter	15.4 cm 6.1 in
Maximum Ground Drive Speed at Maximum Engine RPM	3.1 km/h 1.9 mph
Automated Rod Loader	—
Noise Level at Operator's Ear	85 dB(A)
Noise Level at Operator's Ear - 15 ft (4.6 m)	—
Noise Level at Operator's Ear - 20 ft (6.1 m)	—
Guaranteed sound power (CE-rating)	—
Drill Rack Angle	— deg
Drill Rack Angle	Minimum: 8.5 deg (14.9%), Maximum: 16 deg (28.7%)

Maximum Lifting Capacity	kg lbs
Maximum Lifting Capacity - Boom Extended/Max Reach	kg lbs
Rotation	— deg
Maximum Reach	cm in
Optional Crane	—
Umbilical Remote	—
Wireless Remote	—
