D24x40 S3 HDD

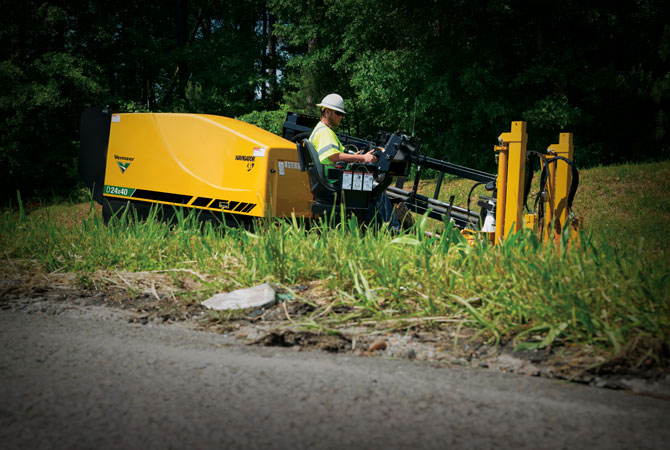

The D24x40 S3 Navigator® horizontal directional drill carries on a proud legacy of reliability.
Vermeer
⤢ Mărește
Pe scurt
- Thrust
- 124.6 kN 28000 lbs
Caracteristici & beneficii
- Setting the industry standard since 1993
- The right size and power for contractors
- Maximizes machine and jobsite productivity
Date tehnice
Specificații tehnice
| Length (Minimum Transport) - 10 ft (3 m) | cm in |
|---|---|
| Length (Minimum Transport) - 15 ft (4.6 m) | cm in |
| Length (Minimum Transport) - 20 ft (6.1 m) | cm in |
| Length (Minimum Transport) | 612.1 cm 241 in |
| Width (Minimum Transport) | 226.1 cm 89 in |
| Width (With Cab, Minimum Transport) | 226.1 cm 89 in |
| Height (Minimum Transport) | 193 cm 76 in |
| Height (With Cab) | 259.1 cm 102 in |
| Height | cm in |
| Weight | 9865.6 kg 21750 lbs |
| Weight - 15 ft (6.1 m) | kg lbs |
| Weight - 20 ft (6.1 m) | kg lbs |
| Weight (Cab Option) | 10092.4 kg 22250 lbs |
| Weight (Cab Option) - 15 ft (4.6 m) | kg lbs |
| Weight (Cab Option) - 20 ft (6.1 m) | kg lbs |
| Angle of Approach | — 19 deg |
| Angle of Approach - 10 ft (3 m) | — deg |
| Angle of Approach - 15 ft (4.6 m) | — deg |
| Angle of approach | — |
| Make and Model | John Deere 4045 |
|---|---|
| Fuel Type | Ultra low sulfur diesel |
| Maximum Engine RPM | — 2400 rpm |
| Idle Speed | — rpm |
| Rated RPM | — rpm |
| Gross Horsepower | 93.2 kw 125 hp |
| Displacement | L cu-in |
| Aspiration | Turbo |
| Cooling Method | — |
| Max Fuel Consumption | 25.7 lph 6.8 gph |
| EPA Certification Family | — |
| Noise Level at Operator's Ear | — |
| Emissions rating | Tier 4 Final (EU Stage V) |
| Maximum Operating Angle (Fore/Aft)* | 30 |
| Maximum Operating Angle (Left/Right)* | 25/25 |
| Make and Model | John Deere 4045 |
|---|---|
| Fuel Type | Diesel |
| Maximum Engine RPM | — 2400 rpm |
| Gross Horsepower | 93.2 kw 125 hp |
| Displacement | L cu-in |
| Aspiration | Turbo |
| Cooling Method | — |
| Max Fuel Consumption | 25.7 lph 6.8 gph |
| Noise Level at Operator's Ear | — |
| Emissions rating | Tier 3/Stage IIIA |
| Maximum Operating Angle (Left/Right)* | — 30 deg |
| Maximum Operating Angle (Fore/Aft)* | — deg |
| Maximum Operating Angle (Left/Right)* | — |
| Maximum Operating Angle (Fore/Aft)* | — |
| Make and Model | — |
|---|---|
| Fuel Type | — |
| Maximum Engine RPM | — rpm |
| Gross Horsepower | kw hp |
| Displacement | L cu-in |
| Cooling Method | — |
| Aspiration | — |
| Noise Level at Operator's Ear | — |
| Emissions rating | — |
| Thrust | 124.6 kN 28000 lbs |
|---|---|
| Max peak thrust | kN lbs |
| Continuous thrust | kN lbs |
| Pullback | 124.6 kN 28000 lbs |
| Max peak pullback | kN lbs |
| Continuous pullback | kN lbs |
| Maximum Carriage Speed at Maximum Engine RPM | 73.2 m/min 240 ft/min |
| Maximum Carriage Speed in Low at Maximum Engine RPM | 30.8 m/min 101 ft/min |
| Maximum Spindle Torque (Low at Maximum Engine RPM) | 5694.4 Nm 4200 ft-lb |
| Maximum Spindle Torque (Medium at Maximum Engine RPM) | 4745.4 Nm 3500 ft-lb |
| Maximum Spindle Torque (High at Maximum Engine RPM) | 2711.6 Nm 2000 ft-lb |
| Maximum Spindle Speed (Low at Maximum Engine RPM) | — rpm |
| Maximum Spindle Speed (Medium at Maximum Engine RPM) | — rpm |
| Maximum Spindle Speed at Max Engine RPM | — 270 rpm |
| Minimum Bore Diameter | 10.2 cm 4 in |
| Maximum Ground Drive Speed at Maximum Engine RPM | 5.3 km/h 3.3 mph |
| Automated Rod Loader | Yes |
| Noise Level at Operator's Ear | 83 dB(A) |
| Noise Level at Operator's Ear - 15 ft (4.6 m) | — |
| Noise Level at Operator's Ear - 20 ft (6.1 m) | — |
| Guaranteed sound power (CE-rating) | 105 dB(A) |
| Drill Rack Angle | — deg |
| Drill Rack Angle | — |
| Fuel Tank | 166.6 L 44 gal |
|---|---|
| Hydraulic Tank | 208.2 L 55 gal |
| Hydraulic System | 246.1 L 65 gal |
| Maximum Flow | 189.3 L/min 50 gpm |
|---|---|
| Maximum Pressure | 72.4 bar 1050 psi |
| Brand | Aplex |
| On Board Tank Capacity | 22.7 L 6 gal |
| Maximum Flow | L/min gpm |
|---|---|
| Maximum Pressure | bar psi |
| Brand | — |
| On Board Tank Capacity | L gal |
| Maximum Flow | L/min gpm |
|---|---|
| Maximum Pressure | bar psi |
| Brand | — |
| Maximum Flow | L/min gpm |
|---|---|
| Maximum Pressure | bar psi |
| Brand | — |
| Maximum Flow | L/min gpm |
|---|---|
| Maximum Pressure | bar psi |
| Brand | — |
| On Board Tank Capacity | L gal |
| Maximum Flow | L/min gpm |
|---|---|
| Maximum Pressure | bar psi |
| Brand | — |
| On Board Tank Capacity | L gal |
|---|---|
| Brand | — |
| Maximum Pressure | bar psi |
| Maximum Flow | L/min gpm |
| Maximum Lifting Capacity | kg lbs |
|---|---|
| Maximum Lifting Capacity - Boom Extended/Max Reach | kg lbs |
| Rotation | — deg |
| Maximum Reach | cm in |
| Optional Crane | — |
| Umbilical Remote | — |
| Wireless Remote | — |
| Breakout System | Standard hydraulic vise |
|---|---|
| Drilling Lights | Standard |
| Flow Indicator | Standard |
| Stakedown System | Standard |
| Cab | Optional |
| Strike Alert | Standard |
| Remote Lockout | Standard |
| Operator Presence | — |
| Drill Rod Thread | — |
|---|---|
| Thread Type | — |
| Length | m ft |
| Rod Diameter | — |
| Joint Inside Diameter | cm in |
| Joint Outside Diameter | — |
| Weight | kg lbs |
| Minimum Bend Radius | m ft |
| Rodbox capacity | m ft |
| Drill Rod Thread | — |
|---|---|
| Thread Type | — |
| Length | m ft |
| Rod Diameter | — |
| Joint Inside Diameter | cm in |
| Joint Outside Diameter | — |
| Weight | kg lbs |
| Bend Radius | — |
| Rodbox capacity | m ft |
| Weight with cab | kg lbs |
|---|---|
| Width with cab | cm in |
| Height with cab | cm in |
| Weight with cab | kg lbs |
|---|---|
| Width with cab | cm in |
| Height with cab | cm in |
