Directional Drills Conform CE

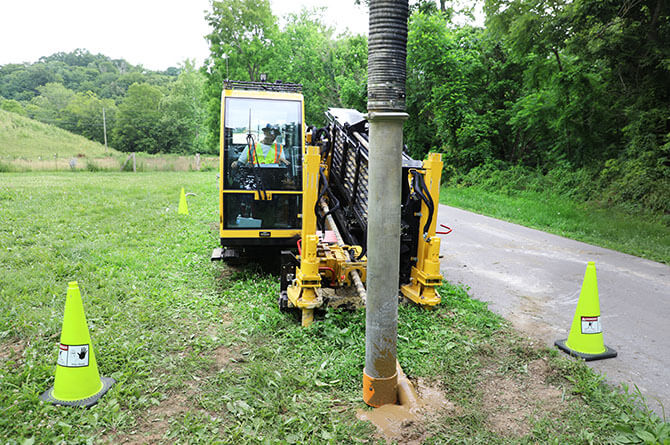

D40x55DR S3 HDD

Delivering excellent productivity in a broad range of ground conditions.

⤢ Mărește

Pe scurt

Date tehnice

Length (Minimum Transport) - 10 ft (3 m)	cm in
Length (Minimum Transport) - 15 ft (4.6 m)	cm in
Length (Minimum Transport) - 20 ft (6.1 m)	cm in
Length (Minimum Transport)	670.6 cm 264 in
Width (Minimum Transport)	226.1 cm 89 in
Width (With Cab, Minimum Transport)	cm in
Height (Minimum Transport)	279.4 cm 110 in
Height (With Cab)	cm in
Height	cm in
Weight	14515 kg 32000 lbs
Weight - 15 ft (6.1 m)	kg lbs
Weight - 20 ft (6.1 m)	kg lbs
Weight (Cab Option)	kg lbs
Weight (Cab Option) - 15 ft (4.6 m)	kg lbs
Weight (Cab Option) - 20 ft (6.1 m)	kg lbs
Angle of Approach	— 23 deg
Angle of Approach - 10 ft (3 m)	— deg
Angle of Approach - 15 ft (4.6 m)	— deg
Angle of approach	—

Make and Model	John Deere PowerTech 4045HF275
Fuel Type	Diesel
Maximum Engine RPM	— 2400 rpm
Idle Speed	— rpm
Rated RPM	— rpm
Gross Horsepower	104.4 kw 140 hp
Displacement	L cu-in
Aspiration	Turbocharged
Cooling Method	—
Max Fuel Consumption	28.6 lph 7.6 gph
EPA Certification Family	—
Noise Level at Operator's Ear	—
Emissions rating	Tier 4 Final (EU Stage V)
Maximum Operating Angle (Fore/Aft)*	30 continuous/45 intermittent
Maximum Operating Angle (Left/Right)*	30 continuous/45 intermittent

Make and Model	John Deere
Fuel Type	Diesel
Maximum Engine RPM	— 2400 rpm
Gross Horsepower	104.4 kw 140 hp
Displacement	L cu-in
Aspiration	Turbocharged
Cooling Method	—
Max Fuel Consumption	28.6 lph 7.6 gph
Noise Level at Operator's Ear	—
Emissions rating	Tier 3 (EU Stage IV)
Maximum Operating Angle (Left/Right)*	— 30 deg
Maximum Operating Angle (Fore/Aft)*	— 30 deg
Maximum Operating Angle (Left/Right)*	—
Maximum Operating Angle (Fore/Aft)*	—

Thrust	177.9 kN 40000 lbs
Max peak thrust	kN lbs
Continuous thrust	kN lbs
Pullback	177.9 kN 40000 lbs
Max peak pullback	kN lbs
Continuous pullback	kN lbs
Maximum Carriage Speed at Maximum Engine RPM	35.1 m/min 115 ft/min
Maximum Carriage Speed in Low at Maximum Engine RPM	m/min ft/min
Maximum Spindle Torque (Low at Maximum Engine RPM)	7457 Nm 5500 ft-lb
Maximum Spindle Torque (Medium at Maximum Engine RPM)	Nm ft-lb
Maximum Spindle Torque (High at Maximum Engine RPM)	Nm ft-lb
Maximum Spindle Speed (Low at Maximum Engine RPM)	— rpm
Maximum Spindle Speed (Medium at Maximum Engine RPM)	— rpm
Maximum Spindle Speed at Max Engine RPM	— 100 rpm
Minimum Bore Diameter	15.9 cm 6.3 in
Maximum Ground Drive Speed at Maximum Engine RPM	5.3 km/h 3.3 mph
Automated Rod Loader	—
Noise Level at Operator's Ear	80 dB
Noise Level at Operator's Ear - 15 ft (4.6 m)	—
Noise Level at Operator's Ear - 20 ft (6.1 m)	—
Guaranteed sound power (CE-rating)	105 dB
Drill Rack Angle	— 15.6 deg
Drill Rack Angle	—

Maximum Lifting Capacity	kg lbs
Maximum Lifting Capacity - Boom Extended/Max Reach	kg lbs
Rotation	— deg
Maximum Reach	cm in
Optional Crane	—
Umbilical Remote	—
Wireless Remote	—

Breakout System	Sliding, open top vise
Drilling Lights	Standard
Flow Indicator	Mud Flow indicator can function like the current D24s3
Stakedown System	Standard/Aggressive
Cab	Standard
Strike Alert	Standard
Remote Lockout	Standard
Operator Presence	—
