Directional Drills Conform CE

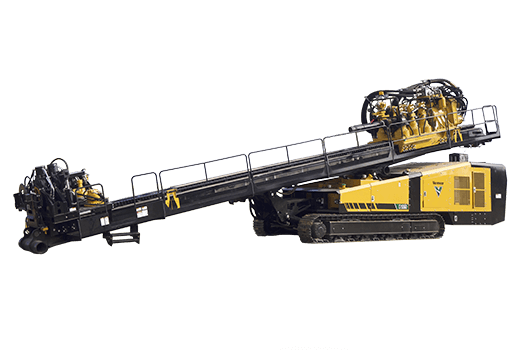

D550 HDD

Maximize your control, unleash the power.

⤢ Mărește

Pe scurt

Date tehnice

Length (Minimum Transport) - 10 ft (3 m)	cm in
Length (Minimum Transport) - 15 ft (4.6 m)	cm in
Length (Minimum Transport) - 20 ft (6.1 m)	cm in
Length (Minimum Transport)	1653.5 cm 651 in
Width (Minimum Transport)	254 cm 100 in
Width (With Cab, Minimum Transport)	cm in
Height (Minimum Transport)	350.5 cm 138 in
Height (With Cab)	cm in
Height	cm in
Weight	47627.2 kg 105000 lbs
Weight - 15 ft (6.1 m)	kg lbs
Weight - 20 ft (6.1 m)	kg lbs
Weight (Cab Option)	kg lbs
Weight (Cab Option) - 15 ft (4.6 m)	kg lbs
Weight (Cab Option) - 20 ft (6.1 m)	kg lbs
Angle of Approach	— 12 deg
Angle of Approach - 10 ft (3 m)	— deg
Angle of Approach - 15 ft (4.6 m)	— deg
Angle of approach	—

Make and Model	Caterpillar C18 ACERT
Fuel Type	Ultra low sulfur diesel
Maximum Engine RPM	— 1800 rpm
Idle Speed	— 800 rpm
Rated RPM	— 1800 rpm
Gross Horsepower	446.7 kw 599 hp
Displacement	18.1 L 1104 cu-in
Aspiration	Turbocharged aftercooled
Cooling Method	Liquid
Max Fuel Consumption	112.4 lph 29.7 gph
EPA Certification Family	Tier 4 Final/EU Stage V
Noise Level at Operator's Ear	—
Emissions rating	—
Maximum Operating Angle (Fore/Aft)*	30 deg
Maximum Operating Angle (Left/Right)*	30 deg

Make and Model	—
Fuel Type	—
Maximum Engine RPM	— rpm
Gross Horsepower	kw hp
Displacement	L cu-in
Aspiration	—
Cooling Method	—
Max Fuel Consumption	lph gph
Noise Level at Operator's Ear	—
Emissions rating	—
Maximum Operating Angle (Left/Right)*	— deg
Maximum Operating Angle (Fore/Aft)*	— deg
Maximum Operating Angle (Left/Right)*	—
Maximum Operating Angle (Fore/Aft)*	—

Thrust	2446.5 kN 550000 lbs
Max peak thrust	kN lbs
Continuous thrust	kN lbs
Pullback	2446.5 kN 550000 lbs
Max peak pullback	kN lbs
Continuous pullback	kN lbs
Maximum Carriage Speed at Maximum Engine RPM	32 m/min 105 ft/min
Maximum Carriage Speed in Low at Maximum Engine RPM	8.2 m/min 27 ft/min
Maximum Spindle Torque (Low at Maximum Engine RPM)	135582 Nm 100000 ft-lb
Maximum Spindle Torque (Medium at Maximum Engine RPM)	Nm ft-lb
Maximum Spindle Torque (High at Maximum Engine RPM)	51521.2 Nm 38000 ft-lb
Maximum Spindle Speed (Low at Maximum Engine RPM)	— 26 rpm
Maximum Spindle Speed (Medium at Maximum Engine RPM)	— rpm
Maximum Spindle Speed at Max Engine RPM	— 75 rpm
Minimum Bore Diameter	cm in
Maximum Ground Drive Speed at Maximum Engine RPM	3.5 km/h 2.2 mph
Automated Rod Loader	—
Noise Level at Operator's Ear	70 dB(A)
Noise Level at Operator's Ear - 15 ft (4.6 m)	—
Noise Level at Operator's Ear - 20 ft (6.1 m)	—
Guaranteed sound power (CE-rating)	111 dB(A)
Drill Rack Angle	— deg
Drill Rack Angle	10-18 deg

Maximum Lifting Capacity	kg lbs
Maximum Lifting Capacity - Boom Extended/Max Reach	kg lbs
Rotation	— deg
Maximum Reach	cm in
Optional Crane	—
Umbilical Remote	—
Wireless Remote	—

Breakout System	Full travel vise
Drilling Lights	Standard
Flow Indicator	Mud pressure sensor standard
Stakedown System	Base anchor-style hold down
Cab	Remote DC10 driller cabin
Strike Alert	Standard
Remote Lockout	Long-range remote lockout
Operator Presence	Standard
