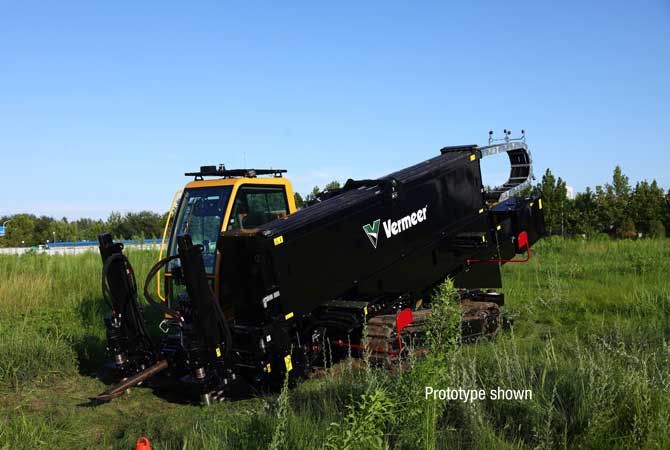

D60S HDD

A drill designed specifically for operators in developing nations.

⤢ Mărește

Pe scurt

Date tehnice

Length (Minimum Transport) - 10 ft (3 m)	cm in
Length (Minimum Transport) - 15 ft (4.6 m)	cm in
Length (Minimum Transport) - 20 ft (6.1 m)	cm in
Length (Minimum Transport)	850.4 cm 334.8 in
Width (Minimum Transport)	243.8 cm 96 in
Width (With Cab, Minimum Transport)	243.8 cm 96 in
Height (Minimum Transport)	262.1 cm 103.2 in
Height (With Cab)	338.1 cm 133.1 in
Height	cm in
Weight	16238.6 kg 35800 lbs
Weight - 15 ft (6.1 m)	kg lbs
Weight - 20 ft (6.1 m)	kg lbs
Weight (Cab Option)	16238.6 kg 35800 lbs
Weight (Cab Option) - 15 ft (4.6 m)	kg lbs
Weight (Cab Option) - 20 ft (6.1 m)	kg lbs
Angle of Approach	— 16 deg
Angle of Approach - 10 ft (3 m)	— deg
Angle of Approach - 15 ft (4.6 m)	— deg
Angle of approach	—

Make and Model	CAT® C7.1-225
Fuel Type	Low sulfur fuel
Maximum Engine RPM	— 2200 rpm
Idle Speed	— 800 rpm
Rated RPM	— 2200 rpm
Gross Horsepower	167.8 kw 225 hp
Displacement	.1 L 7 cu-in
Aspiration	TTA
Cooling Method	Liquid
Max Fuel Consumption	45.3 lph 12 gph
EPA Certification Family	SPKXL07.0VM1
Noise Level at Operator's Ear	74 d(B)A
Emissions rating	EPA Tier 4F/EU Stage V
Maximum Operating Angle (Fore/Aft)*	25 deg
Maximum Operating Angle (Left/Right)*	25 deg

Make and Model	—
Fuel Type	—
Maximum Engine RPM	— rpm
Gross Horsepower	kw hp
Displacement	L cu-in
Aspiration	—
Cooling Method	—
Max Fuel Consumption	lph gph
Noise Level at Operator's Ear	—
Emissions rating	—
Maximum Operating Angle (Left/Right)*	— deg
Maximum Operating Angle (Fore/Aft)*	— deg
Maximum Operating Angle (Left/Right)*	—
Maximum Operating Angle (Fore/Aft)*	—

Thrust	266.9 kN 60000 lbs
Max peak thrust	kN lbs
Continuous thrust	kN lbs
Pullback	266.9 kN 60000 lbs
Max peak pullback	kN lbs
Continuous pullback	kN lbs
Maximum Carriage Speed at Maximum Engine RPM	53 m/min 174 ft/min
Maximum Carriage Speed in Low at Maximum Engine RPM	17.1 m/min 56 ft/min
Maximum Spindle Torque (Low at Maximum Engine RPM)	12202.4 Nm 9000 ft-lb
Maximum Spindle Torque (Medium at Maximum Engine RPM)	8812.8 Nm 6500 ft-lb
Maximum Spindle Torque (High at Maximum Engine RPM)	5152.1 Nm 3800 ft-lb
Maximum Spindle Speed (Low at Maximum Engine RPM)	— 88 rpm
Maximum Spindle Speed (Medium at Maximum Engine RPM)	— 124 rpm
Maximum Spindle Speed at Max Engine RPM	— 209 rpm
Minimum Bore Diameter	cm in
Maximum Ground Drive Speed at Maximum Engine RPM	1.9 km/h 1.2 mph
Automated Rod Loader	—
Noise Level at Operator's Ear	74 dB(A)
Noise Level at Operator's Ear - 15 ft (4.6 m)	—
Noise Level at Operator's Ear - 20 ft (6.1 m)	—
Guaranteed sound power (CE-rating)	113 dB(A)
Drill Rack Angle	— 16 deg
Drill Rack Angle	—

Maximum Lifting Capacity	kg lbs
Maximum Lifting Capacity - Boom Extended/Max Reach	kg lbs
Rotation	— deg
Maximum Reach	cm in
Optional Crane	—
Umbilical Remote	—
Wireless Remote	—
