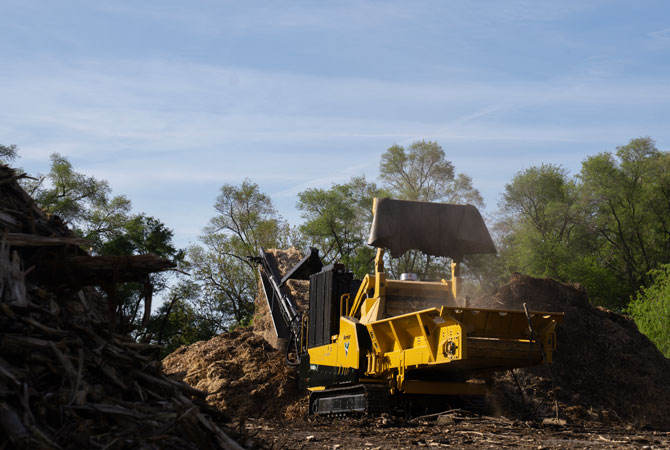

Vermeer
⤢ Mărește
Pe scurt
- Gross Horsepower (Maximum)
- 399.7 kw 536 hp
Caracteristici & beneficii
- A mid-sized grinder with aggressive performance and capacity
- Robust build quality for confident longevity
- Maintenance-friendly design optimizes serviceability
- Equipped with Vermeer innovations to protect your investment and optimize efficiency
- Optional coloring system integration enables premium mulch production
Broșuri & fișe tehnice
Date tehnice
Specificații tehnice
| Maximum Length - Transport | 11 m 36.1 ft |
|---|---|
| Maximum Length - Transport with Dolly | m ft |
| Maximum length - Transport (Pintle) | m ft |
| Maximum length - Transport (5th wheel) | m ft |
| Maximum Length (Operation) | 16.1 m 52.8 ft |
| Maximum Width (Transport) | 2.5 m 8.2 ft |
| Maximum Width Transport - with Dolly | m ft |
| Maximum Height (Transport) | 3.5 m 11.5 ft |
| Maximum Height Transport with Dolly | cm in |
| Maximum height Transport with Dolly ('/m) | m ft |
| Weight | 29483.5 kg 65000 lbs |
| Maximum weight (Pintle) | kg lbs |
| Maximum weight (5th wheel) | kg lbs |
| Tongue Weight | kg lbs |
| Tongue Weight - Engine Option 1 with Dolly | kg lbs |
| Maximum tongue weight (Pintle) | kg lbs |
| Maximum tongue weight (5th wheel) | kg lbs |
| Axle Weight | kg lbs |
| Axle Weight - Engine Option 1 with Dolly | kg lbs |
| Maximum axle weight (Pintle) | kg lbs |
| Maximum axle weight (5th wheel) | kg lbs |
| Weight Engine Option 1 with Dolly | kg lbs |
| Dolly Weight | kg lbs |
| Maximum length - transport (axle version) | m ft |
| Maximum length - transport (stationary version) | m ft |
| Maximum width - transport (axle version) | m ft |
| Maximum width - transport (stationary version) | m ft |
| Maximum height - transport (axle version) | m ft |
| Maximum height - transport (stationary version) | m ft |
| Weight (axle version) | kg lbs |
| Weight (stationary version) | kg lbs |
| Maximum Width | cm in |
|---|---|
| Maximum Length - Folding Conveyor | m ft |
| Maximum Height - Folding Conveyor | m ft |
| Weight | kg lbs |
| Rear Pad Weight | kg lbs |
| Front Pad Weight | kg lbs |
| Sound Power | — |
| Make and Model | CAT® C13B T4F/Stage V |
|---|---|
| Number of Cylinders | — 6 |
| Gross Horsepower (Maximum) | 399.7 kw 536 hp |
| Torque (Max) | 2450 Nm 1807 ft-lb |
| Fuel Tank Capacity | 757.1 L 200 gal |
| Max Fuel Consumption | 103 lph 27.2 gph |
| Fuel Type | Ultra-low sulfur diesel (<15 ppm) |
| Diesel exhaust fluid capacity | 65.5 L 17.3 gal |
| Air Cleaner | Dry-type with primary and secondary elements and restriction indicator |
| Oil Filter | Full-flow, spin-on |
| Recommended Oil | API CK-4, 10W-30 |
| Oil Volume with Filter | L qt |
| Cooling Medium | Liquid (nitrite-free, pre-diluted 50/50) |
| Coolant Capacity (Engine and Radiator) | 39.7 L 10.5 gal |
| Oil volume with filter | 40.9 L 10.8 gal |
| Air to Boil Temperature | — deg |
| Air to boil temperature | 126 F (52 C) |
| Alternator | 24 V 270 A |
| Fan | Flexxaire® (variable pitch) |
| Fan - CAC | Electric (variable speed) |
| Clutch Type | Hydraulic-operated twin disc |
| Clutch Engagement | Push button |
| Drive Belt Type | V-belt |
| Sound Power | 112.7 dB(A) |
| Make and Model | CAT® C13A Tier 3/Stage IIIA |
|---|---|
| Number of Cylinders | — 6 |
| Gross Horsepower (Maximum) | 357.9 kw 480 hp |
| Torque (Max) | 2353.7 Nm 1736 ft-lb |
| Fuel Tank Capacity | 757.1 L 200 gal |
| Max Fuel Consumption | 91.6 lph 24.2 gph |
| Fuel Type | Diesel |
| Air Cleaner | Dry-type with primary and secondary elements and restriction indicator |
| Oil Filter | Full-flow, spin-on |
| Recommended Oil | API CH-4, 10W-30 |
| Oil Volume with Filter | L qt |
| Oil volume with filter | 40.1 L 10.6 gal |
| Cooling Medium | Liquid (nitrite-free, pre-diluted 50/50) |
| Coolant Capacity (Engine and Radiator) | 39.7 L 10.5 gal |
| Air to Boil Temperature | — deg |
| Air to boil temperature | 132 F (55 C) |
| Alternator | 24 V 270 A |
| Fan | Flexxaire® (variable pitch) |
| Fan - CAC | — |
| Clutch Type | Hydraulic-operated twin disc |
| Clutch Engagement | Push button |
| Drive Belt Type | V-belt |
| Sound Power | 112.8 dB(A) |
| Make and Model | — |
|---|---|
| Number of Cylinders | — — |
| Gross Horsepower (Maximum) | kw hp |
| Torque (Max) | Nm ft-lb |
| Fuel Tank Capacity | L gal |
| Max Fuel Consumption | lph gph |
| Fuel Type | — |
| Air Cleaner | — |
| Oil Filter | — |
| Recommended Oil | — |
| Oil Volume with Filter | L qt |
| Cooling Medium | — |
| Coolant Capacity (Engine and Radiator) | L gal |
| Air to Boil Temperature | — deg |
| Alternator | — |
| Fan | — |
| Clutch Type | — |
| Clutch Engagement | — |
| Drive Belt Type | — |
| Sound Power | — |
| Manufacturer | — |
|---|---|
| Frame | — |
| Horsepower | kw hp |
| Voltage | — — |
| Frequency | — |
| Phase | — |
| Rated Speed | — rpm |
| Enclosure | — |
| Full Load Amps | — |
| Locked Rotor Amps | — |
| Service Factor | — |
| Duty Cycle | — |
| NEMA Design | — |
| Insulation Class | — |
| Full Load Torque | Nm ft-lb |
| Locked Rotor (%) | — |
| Break Down | — |
| Ambient Temperature | f c |
| Nominal Efficiency | — |
| Power Factor | — |
| Approximate Weight | kg lbs |
| Added Items | — |
| Drive Belt Type | — |
| Manufacturer | — |
|---|---|
| Frame | — |
| Horsepower | kw hp |
| Voltage | — |
| Frequency | — |
| Phase | — |
| Rated Speed | — rpm |
| Enclosure | — |
| Full Load Amps | — |
| Locked Rotor Amps | — |
| Service Factor | — |
| Duty Cycle | — |
| NEMA Design | — |
| Insulation Class | — |
| Full Load Torque | Nm ft-lb |
| Locked Rotor (%) | — |
| Break Down | — |
| Ambient Temperature | f c |
| Nominal Efficiency | — |
| Power Factor | — |
| Approximate Weight | kg lbs |
| Added Items | — |
| Drive Belt Type | — |
| Manufacturer | — |
|---|---|
| Frame | — |
| Horsepower | kw hp |
| Voltage | — |
| Frequency | — |
| Phase | — |
| Rated Speed | — rpm |
| Enclosure | — |
| Full Load Amps | — |
| Locked Rotor Amps | — |
| Service Factor | — |
| Duty Cycle | — |
| NEMA Design | — |
| Insulation Class | — |
| Full Load Torque | Nm ft-lb |
| Locked Rotor (%) | — |
| Break Down | — |
| Ambient Temperature | f c |
| Nominal Efficiency | — |
| Power Factor | — |
| Approximate Weight | kg lbs |
| Added Items | — |
| Drive Belt Type | — |
| Manufacturer | — |
|---|---|
| Frame | — |
| Horsepower | kw hp |
| Voltage | — |
| Frequency | — |
| Phase | — |
| Rated Speed | — rpm |
| Enclosure | — |
| Full Load Amps | — |
| Locked Rotor Amps | — |
| Service Factor | — |
| Duty Cycle | — |
| NEMA Design | — |
| Insulation Class | — |
| Full Load Torque | Nm ft-lb |
| Locked Rotor (%) | — |
| Break Down | — |
| Ambient Temperature | f c |
| Nominal Efficiency | — |
| Power Factor | — |
| Approximate Weight | kg lbs |
| Added Items | — |
| Drive Belt Type | — |
| Manufacturer | — |
|---|---|
| Frame | — |
| Horsepower | kw hp |
| Voltage | — |
| Frequency | — |
| Phase | — |
| Rated Speed | — rpm |
| Enclosure | — |
| Full Load Amps | — |
| Locked Rotor Amps | — |
| Service Factor | — |
| Duty Cycle | — |
| NEMA Design | — |
| Insulation Class | — |
| Full Load Torque | Nm ft-lb |
| Locked Rotor (%) | — |
| Break Down | — |
| Ambient Temperature | f c |
| Nominal Efficiency | — |
| Power Factor | — |
| Approximate Weight | kg lbs |
| Added Items | — |
| Drive Belt Type | — |
| Manufacturer | — |
|---|---|
| Frame | — |
| Horsepower | kw hp |
| Voltage | — |
| Frequency | — |
| Phase | — |
| Rated Speed | — rpm |
| Enclosure | — |
| Full Load Amps | — |
| Locked Rotor Amps | — |
| Service Factor | — |
| Duty Cycle | — |
| NEMA Design | — |
| Insulation Class | — |
| Full Load Torque | Nm ft-lb |
| Locked Rotor (%) | — |
| Break Down | — |
| Ambient Temperature | f c |
| Nominal Efficiency | — |
| Power Factor | — |
| Approximate Weight | kg lbs |
| Added Items | — |
| Drive Belt Type | — |
| Height | cm in |
|---|---|
| Width | cm in |
| Depth | cm in |
| Weight | kg lbs |
| Feed Table Width | 152.4 cm 60 in |
|---|---|
| Feed Table Depth | 50.8 cm 20 in |
| Feed Table Length - Option One | 4.6 m 15 ft |
| Feed Table Capacity | 3.5 cu m 4.6 cu yd |
| Loading Height | 2 m 6.4 ft |
| Flare Construction | Integrated with bolt-on corner flare |
| Feed Conveyor Type | Welded slat chain |
| Material Construction | Steel |
| Feed Conveyor Type - Option Two | — |
| Material Construction - Option Two | — |
| Drive Type | Fixed displacement motor |
| Drive Roller Construction | Welded steel |
| Front Idler Roller Construction | Self-cleaning auger |
| Infeed Floor Construction | Welded steel |
| Infeed Roller Length | 71.1 cm 28 in |
| Infeed Roller Width | 142.2 cm 56 in |
| Feed opening | 60 in x 30 in (152.4 cm x 76.2 cm) |
| Infeed Roller Weight | kg lbs |
| Infeed roller weight with arm | 1224.7 kg 2700 lbs |
| Infeed Roller Diameter | 71.1 cm 28 in |
| Maximum Feed Height | cm in |
| Material Type | Steel |
| Tooth Design | Serrated bars |
| Number of Teeth | 10 |
| Drive Motor | Fixed displacement motor/planetary |
| Drive Planetary | 34.2:1 |
| Feed Roller Down Pressure | Adjustable |
| Feed opening | — |
|---|---|
| Infeed roller weight with arm | kg lbs |
| Thrown Object Deflector | Standard |
|---|---|
| Deflector Position | Variable |
| Curtain Description | cm in |
| Curtain description | Rubber |
| Millbox Opening | 60-in (152.4-cm) wide x 30.5-in (77.5-cm) high |
|---|---|
| Drum Weight | 2435.8 kg 5370 lbs |
| Drum Diameter | 57.2 cm 22.5 in |
| Tip Diameter | 79.5 cm 31.3 in |
| Drum Cutting Width | 154.7 cm 60.9 in |
| Drum Skin Thickness | 3.8 cm 1.5 in |
| Drum Speed | — 1113 rpm |
| Tip speed (Duplex) | 2930.7 m/min 9615 ft/min |
| Tip Speed | — rpm |
| Bearing Type | Double row spherical roller |
| Bearing - Inner Race Diameter | 10.9 cm 4.3 in |
| Bearing - Dynamic Capacity | 61688.6 kg 136000 lbs |
| Number of Hammers | 9 |
| Number of Tips | 18 |
| Tip option 1 | — |
| Tip option 2 | — |
| Tip option 3 | — |
| Tip option 4 | — |
| Tip types | 18 |
| Center Retention Pin Dimensions | 2-in (5-cm) diameter x 75.3-in (191-cm) long |
| Number of Wipers | Four spiral fan |
| Millbox Opening | 60-in (152.4-cm) wide x 31-in (78.7-cm) high |
|---|---|
| Drum Weight | 2135.1 kg 4707 lbs |
| Drum Diameter | 69.3 cm 27.3 in |
| Tip Diameter | cm in |
| Drum Cutting Width | 152.4 cm 60 in |
| Drum Skin Thickness | 3.3 cm 1.3 in |
| Depth of Cut | Adjustable: .125 in (.31 cm) to 1 in (2.5 cm) |
| Number of Knives | 12 |
| Knife Thickness | .625 in (16 mm) |
| Useable Edges | One |
| Material | A8 mod chipper steel |
| Number of Bolts/Knife | Two |
| Replaceable Threaded Knife Block | Yes |
| Number of Pockets | 12 |
| Drum Speed | — 842 rpm |
| Tip Speed | — rpm |
| Tip speed (1-in chip) | 2217.1 m/min 7274 ft/min |
| Bearing Type | Double row spherical roller |
| Bearing - Inner Race Diameter | 10.9 cm 4.3 in |
| Bearing - Dynamic Capacity | 61688.6 kg 136000 lbs |
| Number of Hammers | — |
| Number of Tips | — |
| Shaft diameter | 12.7 cm 5 in |
| Shaft Retention Type | Keyless bushing |
| Tip option 1 | — |
| Tip option 2 | — |
| Tip option 3 | — |
| Tip option 4 | — |
| Center Retention Pin Dimensions | — |
| Number of Wipers | — |
| Drum Weight | kg lbs |
|---|---|
| Depth of Cut | — |
| Number of Knives | — — |
| Knife Thickness | — |
| Useable Edges | — |
| Material | — |
| Number of Bolts/Knife | — |
| Replaceable Threaded Knife Block | — |
| Number of Pockets | — |
| Shaft diameter | cm in |
| Shaft Retention Type | — |
| Drum Weight | kg lbs |
|---|---|
| Depth of Cut | — |
| Number of Knives | — — |
| Knife Thickness | — |
| Useable Edges | — |
| Material | — |
| Number of Bolts/Knife | — |
| Replaceable Threaded Knife Block | — |
| Number of Pockets | — |
| Shaft diameter | cm in |
| Shaft Retention Type | — |
| Screen Weight | kg lbs |
|---|---|
| Screen Weight | Varies |
| Screen Dimensions | .75-in (1.9-cm) thick |
| Screen Type | Abrasion-resistant steel |
| Number of Screens | Two |
| Screen Area | 20200 sq cm 3131 sq in |
| Millbox lid liner | Abrasion-resistant steel |
| Number of Sides | One |
| Millbox Lid Liner Dimensions | 62-in (157.4-cm) wide x 21.5-in (54.6-cm) high x 16-in (40.6-cm) radius |
| Liner Dimensions | — |
| Anvil Type | Adjustable - replaceable wear surfaces |
| Anvil Dimensions | 6.1-in (15.6-cm) high x 73.5-in (186.7-cm) long x 13.6-in (34.5-cm) wide |
| Length | 6.1 m 20 ft |
|---|---|
| Width | 121.9 cm 48 in |
| Belt Design | 3-ply - 330# with V-cleat |
| Splice | R2 stainless steel cable |
| Return Roller Quantity | 3 |
| Idler Roller Diameter | 30.5 cm 12 in |
| Idler Roller Bearing | 1-15/16, 4-bolt flange |
| Standard Drive Roller Diameter | cm in |
| Magnetic Drive Roller Diameter | 32.5 cm 12.8 in |
| Drive Motor | Fixed displacement |
| Drive Motor Bearings | — |
| Belt Speed | 190.5 m/min 625 ft/min |
| Load Height | 4.3 m 14 ft |
| Tank capacity | 75.7 L 20 gal |
|---|---|
| Recommended Oil | Vermeer HyPower 68 |
| Filtration Method | Single in-tank return filter |
| Number of Coolers | 1 |
| Components | Dual PVG-32 valves |
|---|---|
| System Type | Open-loop, pressure and flow compensated |
| Pump Type | Variable displacement, axial piston |
| Pump Flow at Maximum RPM | 25.3 gpm (96.5 L/min) |
| System Relief Pressure | 3,000 psi (206.8 bar) |
| System Type | Open-loop |
|---|---|
| Pump Type | Fixed displacement gear pump |
| Pump Flow at Maximum RPM | 61.7 L/min 16.3 gpm |
| System Relief Pressure | 2,900 psi (200 bar) |
| Motor Series | TH |
| System Type | — |
|---|---|
| Pump Type | — |
| Pump Flow at Maximum RPM | L/min gpm |
| Motor Series | — |
| Fan Series - FWD/REV | — |
| Tank capacity | L gal |
|---|---|
| Recommended Oil | — |
| Filtration Method | — |
| Number of Coolers | — |
| System Type | — |
| Pump Type | — |
| Pump Flow at Maximum RPM | L/min gpm |
| System relief pressure | bar psi |
| System Voltage | 24 V |
|---|---|
| Battery | 8D-MHD, 1400 CCA (qty. 2) |
| System Protection | Fused |
| Display Type | LCD |
|---|---|
| Engine Information | Yes |
| Machine Information | Yes |
| Operational Faults | Yes |
| Gauges | No |
| Switches | Sealed membrane CAN bus keypad |
| Radio remote type | LCD |
|---|---|
| Display Type | LCD |
| Engine Information | Yes |
| Machine Information | Yes |
| Operational Faults | Yes |
| Gauges | No |
| Switches | Sealed membrane |
| Operating Range | 300 ft (91.4 m) |
| Battery Type | AA (qty. 6) |
| Channel Setting | 50 channels |
| Frame Description | Unit body construction |
|---|---|
| Tongue Description | — |
| Hitch Type | — |
| Fender Description | — |
| Brake Type | — |
| Trailer Light Type | — |
| Suspension Type | — |
|---|---|
| Manufacturer - Option One | — |
| Capacity per Axle | kg lbs |
| Number of axles (5th wheel) | — |
| Number of axles (Pintle) | — |
| Number of Axles | — — |
| Tires - Option One | — |
| Wheels - Option One | — |
| Ground Clearance - Option One | cm in |
| Tires - Option Two | — |
| Wheels - Option Two | — |
| Ground Clearance - Option Two | cm in |
| Track Frame Description | — |
|---|---|
| Track Type | D4 triple or double grouser |
| Track Drive Pump Type | Closed-loop |
| Track Drive Motor Type | Two-speed bent axis axial piston |
| Track Brake Type | Hydraulic release |
| Track Length on Ground | 10.9 ft (3.3 m) |
| Track Width - Option One | 18 in (45.7 cm) |
| Track Width Option One - Ground Bearing Pressure - Hard Ground | 77.2 kPa 11.2 psi |
| Track Width Option One - Ground Bearing Pressure - Soft Ground | kPa psi |
| Track Width Option Two - Ground Bearing Pressure - Option | kPa psi |
| Track Width Option Two - Ground Bearing Pressure - Option Two | kPa psi |
| Type of Idler | D4 track roller |
| Number of Idlers | — 9 |
| Pump Flow at Maximum RPM | L/min gpm |
| System relief pressure | bar psi |
| Maximum Speed | 4.5 km/h 2.8 mph |
| Maximum Creep Speed - (Low) | km/h mph |
| Low Speed Travel in Creep Mode | 2.3 km/h 1.4 mph |
| Air Compressor Brand | — |
|---|---|
| Engine | — |
| Maximum Pressure | bar psi |
| Maximum Air Flow | cmm cfm |
| Tank capacity | L gal |
| Tank capacity (5th wheel) | L gal |
| Tank capacity (Pintle) | L gal |
| Screens | Yes |
|---|---|
| Tips | Yes |
| Special Tools Group | Yes |
| Magnetic discharge conveyor pulley | Yes |
| Extended Warranty | Yes |
| Preventative Maintenance | Yes |
| Special Paint | Yes |
| Air Compressor | — |
| Vermeer Confidence Plus Asset Protection Program | Yes |
| Damage Defense | — |
Video
Modele similare
Toate din Horizontal Grinders →
CE
HG4000E Horizontal Grinder
As your stationary operation looks to electric-power, Vermeer is your partner for the equipment expertise you need.
- Gross Horsepower (Maximum)
- kw hp
CE
HG6000E Horizontal Grinder
As your stationary operation looks to electric-power, Vermeer is your partner for the equipment expertise you need.
- Gross Horsepower (Maximum)
- kw hp
CE
HG4000 European Configuration Horizontal Grinder
Municipal waste facilities, pallet and sawmill operations, and compost contractors alike will appreciate the cost of operation-minded qualities of the all new HG4000 horizontal grinder.
- Gross Horsepower (Maximum)
- 399.7 kw 536 hp
