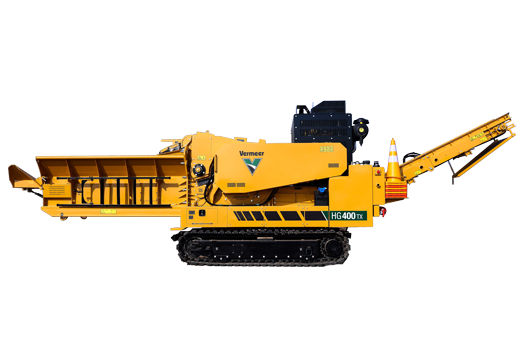

HG400TX Horizontal Grinder
Offering the perfect balance of functionality and affordability, the Vermeer HG400TX Stage V/T4F is an entry level grinder for arborists and recycling firms to process green waste, composting or land clearing in small, narrow jobsites.
Vermeer
⤢ Mărește
Pe scurt
- Gross Horsepower (Maximum)
- 129 kw 173 hp
Caracteristici & beneficii
- Entry level grinder for arborists and recycling firms to process green waste, composting or land clearing in small, narrow jobsites
- Tracks facilitate enhanced maneuverability around different terrains with ease and stability
- 173-hp (129-kW) CAT engine enables it to process difficult materials efficiently
- Various screen and grinder tip options are available, making this grinder suitable for a variety of applications
Broșuri & fișe tehnice
Date tehnice
Specificații tehnice
| Maximum Length - Transport | 8 m 26.2 ft |
|---|---|
| Maximum Length - Transport with Dolly | m ft |
| Maximum length - Transport (Pintle) | m ft |
| Maximum length - Transport (5th wheel) | m ft |
| Maximum Length (Operation) | m ft |
| Maximum Width (Transport) | 2 m 6.6 ft |
| Maximum Width Transport - with Dolly | m ft |
| Maximum Height (Transport) | 2.6 m 8.5 ft |
| Maximum Height Transport with Dolly | cm in |
| Maximum height Transport with Dolly ('/m) | m ft |
| Weight | 7983.2 kg 17600 lbs |
| Maximum weight (Pintle) | kg lbs |
| Maximum weight (5th wheel) | kg lbs |
| Tongue Weight | kg lbs |
| Tongue Weight - Engine Option 1 with Dolly | kg lbs |
| Maximum tongue weight (Pintle) | kg lbs |
| Maximum tongue weight (5th wheel) | kg lbs |
| Axle Weight | kg lbs |
| Axle Weight - Engine Option 1 with Dolly | kg lbs |
| Maximum axle weight (Pintle) | kg lbs |
| Maximum axle weight (5th wheel) | kg lbs |
| Weight Engine Option 1 with Dolly | kg lbs |
| Dolly Weight | kg lbs |
| Maximum length - transport (axle version) | m ft |
| Maximum length - transport (stationary version) | m ft |
| Maximum width - transport (axle version) | m ft |
| Maximum width - transport (stationary version) | m ft |
| Maximum height - transport (axle version) | m ft |
| Maximum height - transport (stationary version) | m ft |
| Weight (axle version) | kg lbs |
| Weight (stationary version) | kg lbs |
| Maximum Width | cm in |
|---|---|
| Maximum Length - Folding Conveyor | m ft |
| Maximum Height - Folding Conveyor | m ft |
| Weight | kg lbs |
| Rear Pad Weight | kg lbs |
| Front Pad Weight | kg lbs |
| Sound Power | — |
| Make and Model | Caterpillar C4.4-C173 |
|---|---|
| Number of Cylinders | — 4 |
| Gross Horsepower (Maximum) | 129 kw 173 hp |
| Torque (Max) | 750 Nm 553.2 ft-lb |
| Fuel Tank Capacity | 189.3 L 50 gal |
| Max Fuel Consumption | 36 lph 9.5 gph |
| Fuel Type | Diesel |
| Diesel exhaust fluid capacity | L gal |
| Air Cleaner | 1 |
| Oil Filter | 2 |
| Recommended Oil | CAT DEO-ULS SAE 10W-30, CJ-4 |
| Oil Volume with Filter | L qt |
| Cooling Medium | — |
| Coolant Capacity (Engine and Radiator) | 26.1 L 6.9 gal |
| Oil volume with filter | 14 L 3.7 gal |
| Air to Boil Temperature | — deg |
| Air to boil temperature | — |
| Alternator | 12V-150A |
| Fan | 1 |
| Fan - CAC | 1 |
| Clutch Type | Auto clutch |
| Clutch Engagement | Hydraulic automatic |
| Drive Belt Type | SPB3900La |
| Sound Power | 118 dB(A) |
| Make and Model | — |
|---|---|
| Number of Cylinders | — — |
| Gross Horsepower (Maximum) | kw hp |
| Torque (Max) | Nm ft-lb |
| Fuel Tank Capacity | L gal |
| Max Fuel Consumption | lph gph |
| Fuel Type | — |
| Air Cleaner | — |
| Oil Filter | — |
| Recommended Oil | — |
| Oil Volume with Filter | L qt |
| Oil volume with filter | L gal |
| Cooling Medium | — |
| Coolant Capacity (Engine and Radiator) | L gal |
| Air to Boil Temperature | — deg |
| Air to boil temperature | — |
| Alternator | — |
| Fan | — |
| Fan - CAC | — |
| Clutch Type | — |
| Clutch Engagement | — |
| Drive Belt Type | — |
| Sound Power | — |
| Make and Model | — |
|---|---|
| Number of Cylinders | — — |
| Gross Horsepower (Maximum) | kw hp |
| Torque (Max) | Nm ft-lb |
| Fuel Tank Capacity | L gal |
| Max Fuel Consumption | lph gph |
| Fuel Type | — |
| Air Cleaner | — |
| Oil Filter | — |
| Recommended Oil | — |
| Oil Volume with Filter | L qt |
| Cooling Medium | — |
| Coolant Capacity (Engine and Radiator) | L gal |
| Air to Boil Temperature | — deg |
| Alternator | — |
| Fan | — |
| Clutch Type | — |
| Clutch Engagement | — |
| Drive Belt Type | — |
| Sound Power | — |
| Manufacturer | — |
|---|---|
| Frame | — |
| Horsepower | kw hp |
| Voltage | — — |
| Frequency | — |
| Phase | — |
| Rated Speed | — rpm |
| Enclosure | — |
| Full Load Amps | — |
| Locked Rotor Amps | — |
| Service Factor | — |
| Duty Cycle | — |
| NEMA Design | — |
| Insulation Class | — |
| Full Load Torque | Nm ft-lb |
| Locked Rotor (%) | — |
| Break Down | — |
| Ambient Temperature | f c |
| Nominal Efficiency | — |
| Power Factor | — |
| Approximate Weight | kg lbs |
| Added Items | — |
| Drive Belt Type | — |
| Manufacturer | — |
|---|---|
| Frame | — |
| Horsepower | kw hp |
| Voltage | — |
| Frequency | — |
| Phase | — |
| Rated Speed | — rpm |
| Enclosure | — |
| Full Load Amps | — |
| Locked Rotor Amps | — |
| Service Factor | — |
| Duty Cycle | — |
| NEMA Design | — |
| Insulation Class | — |
| Full Load Torque | Nm ft-lb |
| Locked Rotor (%) | — |
| Break Down | — |
| Ambient Temperature | f c |
| Nominal Efficiency | — |
| Power Factor | — |
| Approximate Weight | kg lbs |
| Added Items | — |
| Drive Belt Type | — |
| Manufacturer | — |
|---|---|
| Frame | — |
| Horsepower | kw hp |
| Voltage | — |
| Frequency | — |
| Phase | — |
| Rated Speed | — rpm |
| Enclosure | — |
| Full Load Amps | — |
| Locked Rotor Amps | — |
| Service Factor | — |
| Duty Cycle | — |
| NEMA Design | — |
| Insulation Class | — |
| Full Load Torque | Nm ft-lb |
| Locked Rotor (%) | — |
| Break Down | — |
| Ambient Temperature | f c |
| Nominal Efficiency | — |
| Power Factor | — |
| Approximate Weight | kg lbs |
| Added Items | — |
| Drive Belt Type | — |
| Manufacturer | — |
|---|---|
| Frame | — |
| Horsepower | kw hp |
| Voltage | — |
| Frequency | — |
| Phase | — |
| Rated Speed | — rpm |
| Enclosure | — |
| Full Load Amps | — |
| Locked Rotor Amps | — |
| Service Factor | — |
| Duty Cycle | — |
| NEMA Design | — |
| Insulation Class | — |
| Full Load Torque | Nm ft-lb |
| Locked Rotor (%) | — |
| Break Down | — |
| Ambient Temperature | f c |
| Nominal Efficiency | — |
| Power Factor | — |
| Approximate Weight | kg lbs |
| Added Items | — |
| Drive Belt Type | — |
| Manufacturer | — |
|---|---|
| Frame | — |
| Horsepower | kw hp |
| Voltage | — |
| Frequency | — |
| Phase | — |
| Rated Speed | — rpm |
| Enclosure | — |
| Full Load Amps | — |
| Locked Rotor Amps | — |
| Service Factor | — |
| Duty Cycle | — |
| NEMA Design | — |
| Insulation Class | — |
| Full Load Torque | Nm ft-lb |
| Locked Rotor (%) | — |
| Break Down | — |
| Ambient Temperature | f c |
| Nominal Efficiency | — |
| Power Factor | — |
| Approximate Weight | kg lbs |
| Added Items | — |
| Drive Belt Type | — |
| Manufacturer | — |
|---|---|
| Frame | — |
| Horsepower | kw hp |
| Voltage | — |
| Frequency | — |
| Phase | — |
| Rated Speed | — rpm |
| Enclosure | — |
| Full Load Amps | — |
| Locked Rotor Amps | — |
| Service Factor | — |
| Duty Cycle | — |
| NEMA Design | — |
| Insulation Class | — |
| Full Load Torque | Nm ft-lb |
| Locked Rotor (%) | — |
| Break Down | — |
| Ambient Temperature | f c |
| Nominal Efficiency | — |
| Power Factor | — |
| Approximate Weight | kg lbs |
| Added Items | — |
| Drive Belt Type | — |
| Height | cm in |
|---|---|
| Width | cm in |
| Depth | cm in |
| Weight | kg lbs |
| Feed Table Width | 123.4 cm 48.6 in |
|---|---|
| Feed Table Depth | 44.7 cm 17.6 in |
| Feed Table Length - Option One | 2.3 m 7.6 ft |
| Feed Table Capacity | 1 cu m 1.3 cu yd |
| Loading Height | 1.2 m 3.9 ft |
| Flare Construction | — |
| Feed Conveyor Type | Steel chain |
| Material Construction | — |
| Feed Conveyor Type - Option Two | — |
| Material Construction - Option Two | — |
| Drive Type | Hydraulic motor |
| Drive Roller Construction | Steel |
| Front Idler Roller Construction | Steel |
| Infeed Floor Construction | Steel |
| Infeed Roller Length | 156.7 cm 61.7 in |
| Infeed Roller Width | 96.8 cm 38.1 in |
| Feed opening | 40.5 cm x 63.5 cm (15.9 in x 25 in) |
| Infeed Roller Weight | 133.8 kg 295 lbs |
| Infeed roller weight with arm | 393.7 kg 868 lbs |
| Infeed Roller Diameter | 38.1 cm 15 in |
| Maximum Feed Height | 40.4 cm 15.9 in |
| Material Type | Steel |
| Tooth Design | — |
| Number of Teeth | 15 |
| Drive Motor | 2 |
| Drive Planetary | — |
| Feed Roller Down Pressure | 10 MPa |
| Feed opening | — |
|---|---|
| Infeed roller weight with arm | kg lbs |
| Thrown Object Deflector | 1 |
|---|---|
| Deflector Position | — |
| Curtain Description | cm in |
| Curtain description | 40.5 cm x 63.5 cm (15.9 in x 25 in) |
| Millbox Opening | 40.5 cm x 63.5 cm (15.9 in x 25 in) |
|---|---|
| Drum Weight | 410.5 kg 905 lbs |
| Drum Diameter | 79.5 cm 31.3 in |
| Tip Diameter | cm in |
| Drum Cutting Width | 72.4 cm 28.5 in |
| Drum Skin Thickness | 2.3 cm .9 in |
| Drum Speed | — 1100 rpm |
| Tip speed (Duplex) | 2757.8 m/min 9048 ft/min |
| Tip Speed | — 1100 rpm |
| Bearing Type | Double row cylindrical bearing |
| Bearing - Inner Race Diameter | .8 cm .3 in |
| Bearing - Dynamic Capacity | kg lbs |
| Number of Hammers | — |
| Number of Tips | 15 |
| Tip option 1 | Tips |
| Tip option 2 | Bear knife |
| Tip option 3 | Shaper |
| Tip option 4 | — |
| Tip types | — |
| Center Retention Pin Dimensions | — |
| Number of Wipers | — |
| Millbox Opening | — |
|---|---|
| Drum Weight | kg lbs |
| Drum Diameter | cm in |
| Tip Diameter | cm in |
| Drum Cutting Width | cm in |
| Drum Skin Thickness | cm in |
| Depth of Cut | — |
| Number of Knives | — |
| Knife Thickness | — |
| Useable Edges | — |
| Material | — |
| Number of Bolts/Knife | — |
| Replaceable Threaded Knife Block | — |
| Number of Pockets | — |
| Drum Speed | — rpm |
| Tip Speed | — rpm |
| Tip speed (1-in chip) | m/min ft/min |
| Bearing Type | — |
| Bearing - Inner Race Diameter | cm in |
| Bearing - Dynamic Capacity | kg lbs |
| Number of Hammers | — |
| Number of Tips | — |
| Shaft diameter | cm in |
| Shaft Retention Type | — |
| Tip option 1 | — |
| Tip option 2 | — |
| Tip option 3 | — |
| Tip option 4 | — |
| Center Retention Pin Dimensions | — |
| Number of Wipers | — |
| Drum Weight | kg lbs |
|---|---|
| Depth of Cut | — |
| Number of Knives | — — |
| Knife Thickness | — |
| Useable Edges | — |
| Material | — |
| Number of Bolts/Knife | — |
| Replaceable Threaded Knife Block | — |
| Number of Pockets | — |
| Shaft diameter | cm in |
| Shaft Retention Type | — |
| Drum Weight | kg lbs |
|---|---|
| Depth of Cut | — |
| Number of Knives | — — |
| Knife Thickness | — |
| Useable Edges | — |
| Material | — |
| Number of Bolts/Knife | — |
| Replaceable Threaded Knife Block | — |
| Number of Pockets | — |
| Shaft diameter | cm in |
| Shaft Retention Type | — |
| Screen Weight | kg lbs |
|---|---|
| Screen Weight | <55 lb (25 kg) |
| Screen Dimensions | — |
| Screen Type | Square |
| Number of Screens | 2 |
| Screen Area | sq cm sq in |
| Millbox lid liner | — |
| Number of Sides | 2 |
| Millbox Lid Liner Dimensions | — |
| Liner Dimensions | — |
| Anvil Type | Fix |
| Anvil Dimensions | 2 |
| Length | 10.5 m 34.4 ft |
|---|---|
| Width | 45 cm 17.7 in |
| Belt Design | — |
| Splice | Yes |
| Return Roller Quantity | 1 |
| Idler Roller Diameter | .6 cm .2 in |
| Idler Roller Bearing | 2 |
| Standard Drive Roller Diameter | 19.8 cm 7.8 in |
| Magnetic Drive Roller Diameter | 19.8 cm 7.8 in |
| Drive Motor | 1 |
| Drive Motor Bearings | 2 |
| Belt Speed | 221 m/min 725 ft/min |
| Load Height | 2.1 m 6.9 ft |
| Tank capacity | 200.6 L 53 gal |
|---|---|
| Recommended Oil | HM68 |
| Filtration Method | Filter |
| Number of Coolers | 1 |
| Components | — |
|---|---|
| System Type | — |
| Pump Type | — |
| Pump Flow at Maximum RPM | — |
| System Relief Pressure | — |
| System Type | — |
|---|---|
| Pump Type | — |
| Pump Flow at Maximum RPM | L/min gpm |
| System Relief Pressure | — |
| Motor Series | — |
| System Type | — |
|---|---|
| Pump Type | — |
| Pump Flow at Maximum RPM | L/min gpm |
| Motor Series | — |
| Fan Series - FWD/REV | — |
| Tank capacity | 151.4 L 40 gal |
|---|---|
| Recommended Oil | HM68 |
| Filtration Method | Filter element |
| Number of Coolers | 1 |
| System Type | — |
| Pump Type | Gear pump |
| Pump Flow at Maximum RPM | L/min gpm |
| System relief pressure | 206.8 bar 3000 psi |
| System Voltage | 12 |
|---|---|
| Battery | 1 |
| System Protection | Yes |
| Display Type | Liquid crystal display |
|---|---|
| Engine Information | — |
| Machine Information | — |
| Operational Faults | — |
| Gauges | — |
| Switches | — |
| Radio remote type | Wireless |
|---|---|
| Display Type | — |
| Engine Information | Yes |
| Machine Information | Yes |
| Operational Faults | Yes |
| Gauges | — |
| Switches | Yes |
| Operating Range | 98.4 ft (30 m) |
| Battery Type | Maintenance-free battery |
| Channel Setting | Yes |
| Frame Description | Undercarriage |
|---|---|
| Tongue Description | — |
| Hitch Type | — |
| Fender Description | — |
| Brake Type | — |
| Trailer Light Type | — |
| Suspension Type | — |
|---|---|
| Manufacturer - Option One | — |
| Capacity per Axle | kg lbs |
| Number of axles (5th wheel) | — |
| Number of axles (Pintle) | — |
| Number of Axles | — — |
| Tires - Option One | — |
| Wheels - Option One | — |
| Ground Clearance - Option One | cm in |
| Tires - Option Two | — |
| Wheels - Option Two | — |
| Ground Clearance - Option Two | cm in |
| Track Frame Description | Rigid frame |
|---|---|
| Track Type | Double grouser |
| Track Drive Pump Type | Gear pump |
| Track Drive Motor Type | Planetary motor |
| Track Brake Type | Normally closed |
| Track Length on Ground | 2055 mm |
| Track Width - Option One | 350 mm |
| Track Width Option One - Ground Bearing Pressure - Hard Ground | 60 kPa 8.7 psi |
| Track Width Option One - Ground Bearing Pressure - Soft Ground | kPa psi |
| Track Width Option Two - Ground Bearing Pressure - Option | kPa psi |
| Track Width Option Two - Ground Bearing Pressure - Option Two | kPa psi |
| Type of Idler | Spring-applied, hydraulically-released |
| Number of Idlers | — 2 |
| Pump Flow at Maximum RPM | 80 L/min 21.1 gpm |
| System relief pressure | 206.8 bar 3000 psi |
| Maximum Speed | 1 km/h .6 mph |
| Maximum Creep Speed - (Low) | km/h mph |
| Low Speed Travel in Creep Mode | km/h mph |
| Air Compressor Brand | — |
|---|---|
| Engine | — |
| Maximum Pressure | bar psi |
| Maximum Air Flow | cmm cfm |
| Tank capacity | L gal |
| Tank capacity (5th wheel) | L gal |
| Tank capacity (Pintle) | L gal |
| Screens | 6 types |
|---|---|
| Tips | 5 types |
| Special Tools Group | — |
| Magnetic discharge conveyor pulley | — |
| Extended Warranty | — |
| Preventative Maintenance | — |
| Special Paint | — |
| Air Compressor | — |
| Vermeer Confidence Plus Asset Protection Program | — |
| Damage Defense | — |
Modele similare
Toate din Horizontal Grinders →
CE
HG4000E Horizontal Grinder
As your stationary operation looks to electric-power, Vermeer is your partner for the equipment expertise you need.
- Gross Horsepower (Maximum)
- kw hp
CE
HG6000E Horizontal Grinder
As your stationary operation looks to electric-power, Vermeer is your partner for the equipment expertise you need.
- Gross Horsepower (Maximum)
- kw hp
CE
HG4000 European Configuration Horizontal Grinder
Municipal waste facilities, pallet and sawmill operations, and compost contractors alike will appreciate the cost of operation-minded qualities of the all new HG4000 horizontal grinder.
- Gross Horsepower (Maximum)
- 399.7 kw 536 hp
