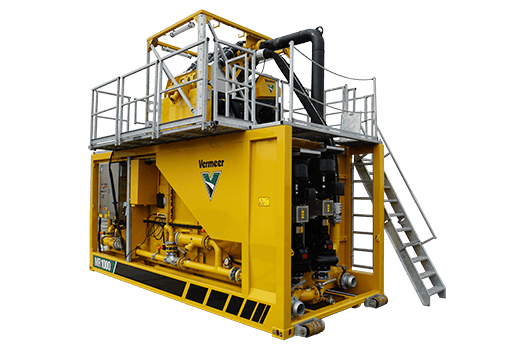

MR1000 Mixer and Reclaimer
This container-sized, all-in-one Vermeer mixer and reclaimer offers high productivity combined with ease of transport and minimal setup time.
Vermeer
⤢ Mărește
Pe scurt
- Maximum Capacity
- 22996.4 L 6075 gal
Caracteristici & beneficii
- Cleaning excellence
- Convenient controls
- Compact size
Broșuri & fișe tehnice
Date tehnice
Specificații tehnice
| Weight | 11702.7 kg 25800 lbs |
|---|---|
| Gross Vehicle Weight Rating (GVWR) | kg lbs |
| Length | 6.5 m 21.3 ft |
| Width | 2.5 m 8.2 ft |
| Height | 2.7 m 8.9 ft |
| Type | — |
|---|---|
| Suspension | — |
| Axles | — |
| Certifications | — |
| Maximum Capacity | 22996.4 L 6075 gal |
|---|---|
| Number of Tanks | Two |
| Scalped tank capacity | L gal |
| Desander tank | L gal |
| Clean/Mix Tank Capacity | 17999.6 L 4755 gal |
| Shaker Motion | Linear |
|---|---|
| Shaker Type | Double deck |
| Number of Shakers | One |
| Shaker Bed Area - each | — |
| Number of Screens per Shaker | Six upper deck screens |
| Screen Dimension | MD3 |
| Cleaning Capacity (First Cut) | 999.3 L/min 264 gpm |
| Desander Capacity | L/min gpm |
| Desander Quantity/Size | — |
| Desilter Capacity | L/min gpm |
| Desilter Quantity/Size | 12 4-in (10.2-cm) hydro cyclones |
| Charge motor | — |
|---|---|
| Charge pump | — |
| Mixing/Agitation motor | — |
| Mixing/Agitation pump | — |
| Desilter motor | — |
| Desilter pump | — |
| Genset | — |
|---|---|
| Pit pump | — |
| Trailer | — |
| Agitator System | — |
|---|---|
| Ancillary Electrical System | — |
| Working lights | — |
| Auto-pit pump | — |
| Mud box | — |
| Scalped tank capacity | L gal |
| Optional canopy | — |
| Optional wireless remote | — |
| Optional power wash system | — |
| Minimum recommended genset | — |
|---|---|
| When connected to the grid | — |
