Reclaimers
Conform CE

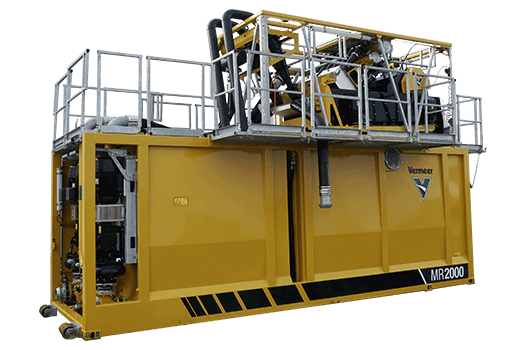

MR2000 Mixer and Reclaimer
This container-sized, all-in-one Vermeer mixer and reclaimer offers high productivity combined with ease of transport and minimal setup time.
Vermeer
⤢ Mărește
Pe scurt
- Maximum Capacity
- 26002 L 6869 gal
Caracteristici & beneficii
- Big performance
- Cleaning excellence
- Linear jobsite
Broșuri & fișe tehnice
Date tehnice
Specificații tehnice
| Weight | 17300 kg 38140 lbs |
|---|---|
| Gross Vehicle Weight Rating (GVWR) | kg lbs |
| Length | 7.4 m 24.3 ft |
| Width | 2.5 m 8.2 ft |
| Height | 2.7 m 9 ft |
| Type | — |
|---|---|
| Suspension | — |
| Axles | — |
| Certifications | — |
| Maximum Capacity | 26002 L 6869 gal |
|---|---|
| Number of Tanks | Four |
| Scalped tank capacity | L gal |
| Desander tank | L gal |
| Clean/Mix Tank Capacity | 17999.6 L 4755 gal |
| Shaker Motion | Linear |
|---|---|
| Shaker Type | Double deck |
| Number of Shakers | One |
| Shaker Bed Area - each | — |
| Number of Screens per Shaker | Eight upper deck screens |
| Screen Dimension | MD3 |
| Cleaning Capacity (First Cut) | 1998.7 L/min 528 gpm |
| Desander Capacity | L/min gpm |
| Desander Quantity/Size | Two 10-in (25.4-cm) hydrocyclones |
| Desilter Capacity | L/min gpm |
| Desilter Quantity/Size | Twelve 4-in (10.2-cm) hydrocyclones |
| Charge motor | — |
|---|---|
| Charge pump | — |
| Mixing/Agitation motor | — |
| Mixing/Agitation pump | — |
| Desilter motor | — |
| Desilter pump | — |
| Genset | — |
|---|---|
| Pit pump | — |
| Trailer | — |
| Agitator System | — |
|---|---|
| Ancillary Electrical System | — |
| Working lights | — |
| Auto-pit pump | — |
| Mud box | — |
| Scalped tank capacity | L gal |
| Optional canopy | — |
| Optional wireless remote | — |
| Optional power wash system | — |
| Minimum recommended genset | 250 kVA, 400 V, 50 Hz |
|---|---|
| When connected to the grid | 300 A, 400 V, 50 Hz |
