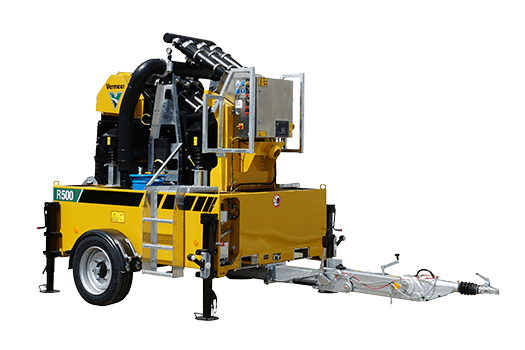

R500 Reclaimer
The smallest Vermeer reclaimer is available as a skid and trailer version.
Vermeer
⤢ Mărește
Pe scurt
- Maximum Capacity
- 2271.2 L 600 gal
Caracteristici & beneficii
- High capacity pump
- Cleaning efficiency
- Available as skid or trailer version
Broșuri & fișe tehnice
Date tehnice
Specificații tehnice
| Weight | 2499.7 kg 5511 lbs |
|---|---|
| Gross Vehicle Weight Rating (GVWR) | 2499.7 kg 5511 lbs |
| Length | 4.9 m 16 ft |
| Width | 2.5 m 8.2 ft |
| Height | 2.8 m 9.2 ft |
| Type | Single axle trailer |
|---|---|
| Suspension | Torsion bar |
| Axles | Knott |
| Certifications | — |
| Maximum Capacity | 2271.2 L 600 gal |
|---|---|
| Number of Tanks | 1 |
| Scalped tank capacity | L gal |
| Desander tank | L gal |
| Clean/Mix Tank Capacity | L gal |
| Shaker Motion | Linear |
|---|---|
| Shaker Type | Double deck |
| Number of Shakers | 1 |
| Shaker Bed Area - each | 23.4 ft² (2.18 m²) |
| Number of Screens per Shaker | 3 |
| Screen Dimension | 24 in x 24 in (61 cm x 61 cm) |
| Cleaning Capacity (First Cut) | 492.1 L/min 130 gpm |
| Desander Capacity | L/min gpm |
| Desander Quantity/Size | — |
| Desilter Capacity | L/min gpm |
| Desilter Quantity/Size | 6 hydrocyclones |
| Charge motor | — |
|---|---|
| Charge pump | 5 hp (3.7 kW) |
| Mixing/Agitation motor | — |
| Mixing/Agitation pump | — |
| Desilter motor | — |
| Desilter pump | 15 hp (11 kW) |
| Genset | 40 kVA, 3-phase 50 Hz, 400 V |
|---|---|
| Pit pump | 5 hp (3.7 kW) |
| Trailer | Single axle |
| Agitator System | — |
|---|---|
| Ancillary Electrical System | 24 V |
| Working lights | Dual LED lamp post |
| Auto-pit pump | Standard |
| Mud box | — |
| Scalped tank capacity | L gal |
| Optional canopy | — |
| Optional wireless remote | — |
| Optional power wash system | — |
| Minimum recommended genset | — |
|---|---|
| When connected to the grid | — |
