Trenchers Conform CE

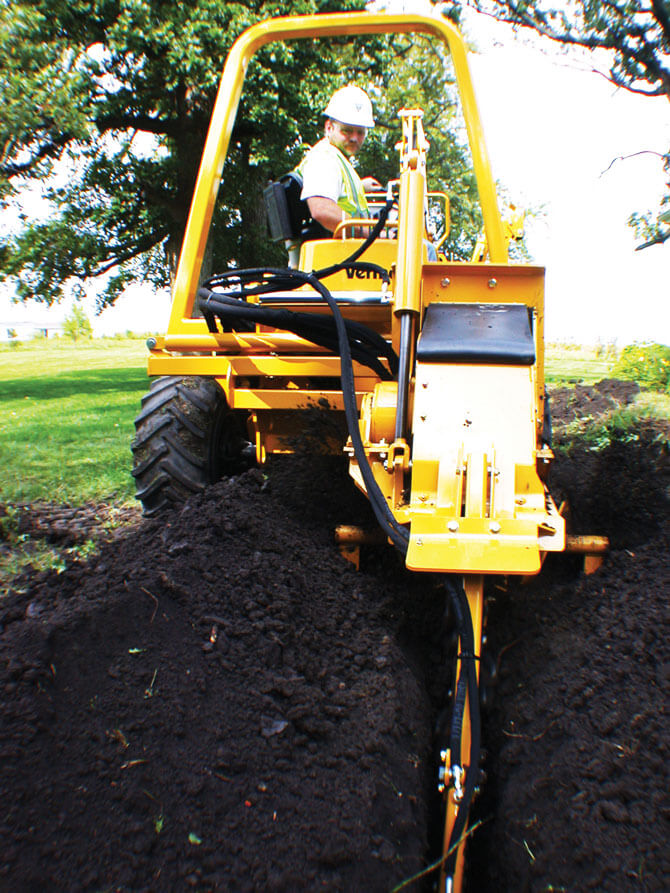

RTX550 Ride-on Tractor

RTX550 is a versatile answer to many of your utility installation jobsite challenges.

Cere ofertă

⤢ Mărește

Pe scurt

Gross Horsepower (Maximum): 50 kw 67 hp

Caracteristici & beneficii

Choice of rubber tires or quad-tracks.
Wide selection of attachment options.
User-friendly integrated system display.

Broșuri & fișe tehnice

RTX550 Spec Sheet PDF Descarcă Fleet-enabled Trenchers, Plows, Rockwheels PDF Descarcă

Date tehnice

Specificații tehnice

Weight - Tractor with Closed Cab	kg lbs
Weight - Tractor with Open Cab	kg lbs
Weight (basic tractor, rubber tires)	2540.1 kg 5600 lbs
Weight (basic tractor, rubber tires, option two)	2662.6 kg 5870 lbs
Weight (basic tractor, rubber tires, option three)	kg lbs
Weight (basic tractor, tracks)	3538 kg 7800 lbs
Weight (cab, rubber tires)	kg lbs
Weight (cab, rubber tires, option two) - lb (kg)	kg lbs
Weight (cab, tracks)	kg lbs
Length (basic tractor, rubber tires)	313.9 cm 123.6 in
Length (basic tractor, rubber tires)	m ft
Length (basic tractor, rubber tires, option two)	317 cm 124.8 in
Length (basic tractor, rubber tires, option three)	cm in
Length (basic tractor, tracks)	332.2 cm 130.8 in
Length (basic tractor, tracks)	m ft
Length (cab, rubber tires)	cm in
Length (cab, rubber tires, option two)	cm in
Length (cab, tracks)	cm in
Width (basic tractor, rubber tires)	183.9 cm 72.4 in
Width (basic tractor, rubber tires, option two)	197.1 cm 77.6 in
Width (basic tractor, rubber tires, option three)	cm in
Width (basic tractor, tracks)	192.5 cm 75.8 in
Width (cab, rubber tires)	cm in
Width (cab, rubber tires, option two)	cm in
Width (cab, tracks)	cm in
Height (With Four-Post ROPS)	cm in
Height (basic tractor, rubber tires)	245.9 cm 96.8 in
Height (basic tractor, rubber tires, option two)	249.4 cm 98.2 in
Height (basic tractor, rubber tires, option three)	cm in
Height (basic tractor, tracks)	254.5 cm 100.2 in
Height (cab, rubber tires)	cm in
Height (cab, rubber tires, option two)	cm in
Height (cab, tracks)	cm in
Wheel Base (Centerline of Axles)	154.9 cm 61 in
Tread Width with Rubber Tires (Centerline to Centerline)	145.8 cm 57.4 in
Tread Width with Rubber Tires Option Two (Centerline to Centerline)	151.1 cm 59.5 in
Tread width with rubber tires option three (centerline to centerline)	141 cm 55.5 in
Tread Width with Rubber Tracks (Centerline to Centerline)	cm in
Ground Clearance (rubber tires)	22.4 cm 8.8 in
Ground Clearance (rubber tires, option two)	25.9 cm 10.2 in
Ground clearance (rubber tires, option three)	cm in
Ground Clearance (tracks)	31 cm 12.2 in
Angle of approach (basic tractor, rubber tires)	— 20 deg
Angle of approach (basic tractor, rubber tires, option two)	— 23 deg
Angle of approach (basic tractor, rubber tires, option three)	— deg
Angle of approach (basic tractor, tracks)	— 30 deg
Roll Over Protection Structure (Closed Cab)	kg lbs
Roll Over Protection Structure (Open Cab)	kg lbs

Make and Model	Deutz TD2.9
Gross Horsepower (Maximum)	50 kw 67 hp
Horsepower at Maximum RPM (Gross)	kw hp
Maximum Torque	234.6 Nm 173 ft-lb
Number of Cylinders	— 4
Cooling Medium	Liquid
Fuel Type	Diesel
Emissions rating	Tier 4 Final
CE approved	—
Guaranteed sound power (CE-rating)	—
Guaranteed sound power	109 dB(A)
Noise Level at Operator's Ear	90 dB(A)
Air Cleaner	—
EPA Certification Family	—

Make and Model	Cummins B3.3
Gross Horsepower	kw hp
Maximum Torque	214.2 Nm 158 ft-lb
Number of Cylinders	— 4
Cooling Medium	Liquid
Fuel Type	Diesel
Emissions rating	Tier 4i (EI Stage IIIA)
CE approved	—
Guaranteed sound power (CE-rating)	—
Guaranteed sound power	108 dB(A)
Noise Level at Operator's Ear	90 dB(A)
EPA Certification Family	—

Make and Model	Deutz TD2.9
Gross Horsepower (Maximum)	50 kw 67 hp
Maximum Torque	234.6 Nm 173 ft-lb
Number of Cylinders	— 4
Cooling Medium	Liquid
Maximum Operating Angle (Fore/Aft)*	— 20 deg
Maximum Operating Angle (Left/Right)*	— 20 deg
Fuel Type	Diesel
Emissions rating	Tier 4 Final/Stage V
Guaranteed sound power	109 dB(A)
Noise Level at Operator's Ear	92 dB(A)

Maximum forward transport speed (high)	9 km/h 5.6 mph
Maximum reverse transport speed (high)	9 km/h 5.6 mph
Maximum forward creep speed (low)	km/h mph
Maximum reverse creep speed (low)	km/h mph
Maximum forward creep speed (low)	m/min ft/min
Maximum reverse creep speed (low)	m/min ft/min
Tire size	31" (78.7 cm)
Fill Option	—

Maximum forward transport speed (high)	9.8 km/h 6.1 mph
Maximum reverse transport speed (high)	9.8 km/h 6.1 mph
Maximum forward creep speed (low)	m/min ft/min
Maximum reverse creep speed (low)	m/min ft/min
Tire size	35" (88.9 cm)
Fill Option	—

Maximum forward transport speed (high)	km/h mph
Maximum reverse transport speed (high)	km/h mph
Maximum forward creep speed (low)	m/min ft/min
Maximum reverse creep speed (low)	m/min ft/min
Tire size	—
Fill Option	—

Maximum forward transport speed (high)	6.6 km/h 4.1 mph
Maximum reverse transport speed (high)	6.6 km/h 4.1 mph
Maximum forward creep speed (low)	km/h mph
Maximum reverse creep speed (low)	km/h mph
Maximum forward creep speed (low)	m/min ft/min
Maximum reverse creep speed (low)	m/min ft/min
Track width	cm in
Fill Option	—

Front Axle Type	Steerable planetary
Rear Axle Type	Steerable planetary with gear box
Axle load rating (static, per axle)	5102.9 kg 11250 lbs
Outside Turning Diameter (Rubber Tires, Front Steer Only)	9.1 m 29.8 ft
Outside Turning Diameter (Rubber Tires Option Two, Front Steer Only)	9.2 m 30.3 ft
Outside turning diameter (tracks, front steer only)	— 31.7 ft
Outside Turning Diameter (Rubber Tires, Front and Rear Steer)	5.7 m 18.8 ft
Outside Turning Diameter (Rubber Tires Option Two, Front and Rear Steer)	6 m 19.8 ft
Outside turning diameter (rubber tires option three, front and rear steer)	m ft
Outside turning diameter (tracks, front and rear steer)	— 20.1 ft
Service Brake Type	Wet disc
Parking Brake Type	Spring-applied hydraulic release
Tilt axle	— deg

Auxiliary Pump Flow at Maximum Engine RPM	— gpm
Auxiliary Pump Relief Pressure	bar psi
Auxiliary pump capacity	43.9 L/min 11.6 gpm
Auxiliary pump relief	172.4 bar 2500 psi
Attachment pump capacity	117.3 L/min 31 gpm
Attachment Pump gpm at Maximum Engine RPM	L/min gpm
Attachment pump relief	350.3 bar 5080 psi
Ground Drive Pump gpm at Maximum Engine RPM	L/min gpm
Ground drive pump capacity	117.3 L/min 31 gpm
Ground drive pump relief	299.9 bar 4350 psi
Hydraulic Return Filter Rating	—
