Mini Loaders Conform CE

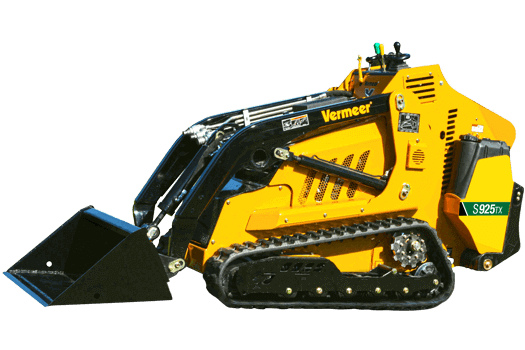

S925TX Mini Skid Steer

Looking for power, versatility and reliability? Look no further.

Cere ofertă

⤢ Mărește

Pe scurt

Rated Operating Capacity (SAE): 419.6 kg 925 lbs

Caracteristici & beneficii

Looking for power, versatility and reliability? Look no further. Following in the footsteps of its predecessor, the S925TX mini skid steer from Vermeer has the toughness to work through your toughest challenge. With impressive lift capacity and the comfort of a chariot-style operating station, this machine is designed for productivity and comfort. The standard dual auxiliary hydraulic system works in tandem with the universal mounting plate to provide maximum versatility on the jobsite.

Broșuri & fișe tehnice

S925TX Spec Sheet PDF Descarcă Benefits of Vermeer Attachments PDF Descarcă Attachment Capability Guide PDF Descarcă

Date tehnice

Specificații tehnice

Design	Stand-on/Track drive
Length with Standard Bucket	269.2 cm 106 in
Length without Standard Bucket	213.4 cm 84 in
Width with 9" (22.9 cm) Tracks	cm in
Width with Standard Bucket	106.7 cm 42 in
Width Without Standard Bucket	91.4 cm 36 in
Height	147.3 cm 58 in
Height (to Hinge Pin)	214.6 cm 84.5 in
Ground Clearance	15.2 cm 6 in
Weight (Standard Bucket, Gas Engine)	kg lbs
Weight (Standard Bucket, Diesel Engine)	1571.7 kg 3465 lbs
Weight (No Bucket, Gas Engine)	kg lbs
Weight (No Bucket, Diesel Engine)	1519.5 kg 3350 lbs
Weight (Standard Bucket, 40HP (29.8 kW) Diesel Engine, 9" (22.9 cm) Tracks)	kg lbs
Weight (No Bucket, 40 HP (29.8 kW) Diesel Engine, 9" (22.9 cm) Tracks)	kg lbs

Make and Model	Kubota V1505
Fuel Type	Diesel
Fuel Tank Capacity	49.2 L 13 gal
Gross Horsepower	18.5 kw 24.8 hp
Cooling System	Liquid
Maximum Angle of Inclination	— 30 deg
Travel Speed	6.6 km/h 4.1 mph

Make and Model	Kubota V1505 (available in LRC only)
Fuel Type	Diesel
Fuel Tank Capacity	49.2 L 13 gal
Gross Horsepower	26.1 kw 35 hp
Cooling System	Liquid
Maximum Angle of Inclination	— 30 deg
Travel Speed	7.2 km/h 4.5 mph

Make and Model	Kubota V1505
Fuel Type	Gas
Fuel Tank Capacity	49.2 L 13 gal
Gross Horsepower (Maximum)	29.8 kw 40 hp
Cooling System	Liquid
Maximum Angle of Inclination	— 30 deg
Travel Speed	7.2 km/h 4.5 mph

Rated Operating Capacity (SAE)	419.6 kg 925 lbs
Ground Pressure (Narrow Tracks)	34.5 kPa 5 psi
Ground Pressure (Wide Tracks)	27.6 kPa 4 psi
Tipping Capacity (with 165 lb (74.84 kg) operator)	kg lbs
Travel Speed	km/h mph

Steering	Dual Axis, pilot operated joystick
Lift	Dual Axis, common bucket lever
Curl	Dual Axis, common bucket lever
Transmission	—

Hydraulic Aux System Flow	L/min gpm
Hydraulic System Low Flow	L/min gpm
Hydraulic System Flow	45.4 L/min 12 gpm
Hydraulic System Pressure	209.9 bar 3045 psi
Ground pressure	bar psi
Tank capacity	39.7 L 10.5 gal
