Stump Cutters Conform CE

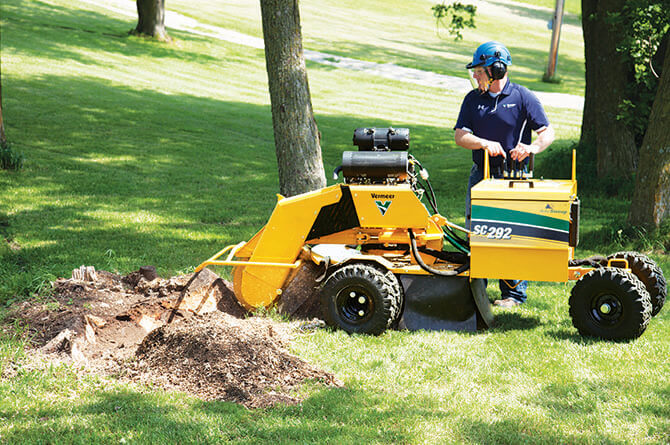

SC292 Stump Cutter

Contractors can now fit into tighter spaces for more efficient stump grinding.

⤢ Mărește

Pe scurt

Date tehnice

Length - Tongue In	cm in
Length - Tongue Extended	cm in
Length	279.4 cm 110 in
Width	126.5 cm 49.8 in
Width (tracks retracted)	cm in
Width (tracks extended)	cm in
Height	132.1 cm 52 in
Height (non-remote unit)	cm in
Height (remote unit)	cm in
Overall Width Transport (without duals)	88.9 cm 35 in
Overall Width Transport (with duals)	126.5 cm 49.8 in
Overall Height Transport	132.1 cm 52 in
Overall Height Transport - Engine Option Two	cm in
Weight - Engine Option One	582.9 kg 1285 lbs
Weight - Engine Option Two	kg lbs
Weight - Engine Option Three	kg lbs
Tongue Weight - Engine Option One	kg lbs
Tongue Weight - Engine Option Two	kg lbs
Tongue Weight - Engine Option Three	kg lbs
Weight With Dual Wheel Option (Additional )	kg lbs
Width with Dual Wheel Option (Additional)	cm in
Weight with Four Wheel Drive and Chip Blade (Additional)	kg lbs
Weight With Chip Blade Option (Additional)	kg lbs
Sound Power	105.4
Sound Power - Engine Option Two	—
Sound Power - Engine Option Three	—

Make and Model	Kohler Command Pro EFI
Number of Cylinders	— 2
Gross Horsepower (Maximum)	19.8 kw 26.5 hp
Torque (Max)	60.1 Nm 44.3 ft-lb
Fuel Tank Capacity	22.7 L 6 gal
Max Fuel Consumption	10.2 lph 2.7 gph
Fuel Type	Gas
Air Cleaner	Dry-type safety element and restriction indicator
Oil Filter	Spin on
Recommended Oil	10W30 Kohler
Oil Volume with Filter	1.9 L 2 qt
Maximum Angle of Continuous Operation	— deg
Cooling Medium	Air
Coolant Capacity (Engine and Radiator)	L gal
Alternator	20 amp
Fan	—
Clutch Type	Electric clutch with brake

Make and Model	—
Number of Cylinders	— —
Gross Horsepower (Maximum)	kw hp
Torque (Max)	Nm ft-lb
Fuel Tank Capacity	L gal
Max Fuel Consumption	lph gph
Fuel Type	—
Air Cleaner	—
Oil Filter	—
Recommended Oil	—
Oil Volume with Filter	L qt
Maximum Angle of Continuous Operation	— deg
Cooling Medium	—
Coolant Capacity (Engine and Radiator)	L gal
Alternator	—
Fan	—
Clutch Type	—

Make and Model	—
Number of Cylinders	— —
Gross Horsepower (Maximum)	kw hp
Torque (Max)	Nm ft-lb
Fuel Tank Capacity	L gal
Max Fuel Consumption	lph gph
Fuel Type	—
Air Cleaner	—
Oil Filter	—
Recommended Oil	—
Oil Volume with Filter	L qt
Maximum Angle of Continuous Operation	— deg
Cooling Medium	—
Coolant Capacity (Engine and Radiator)	L gal
Alternator	—
Fan	—
Clutch Type	—
Clutch Drive Engagement	—

Cutterwheel Diameter	43.2 cm 17 in
Cutterwheel Diameter without Teeth	cm in
Cutterwheel Thickness	1.3 cm .5 in
Cutterwheel Speed	— 1400 rpm
Cutterwheel Straight Line Dimension	119.4 cm 47 in
Cutterwheel Cut Above Ground	61 cm 24 in
Cutterwheel Cut Below Ground	38.1 cm 15 in
Tooth Description	Yellow Jacket cutter system
Number of Teeth	16
Number of Indexes	2
Number of Pockets	16
Number of wear plates	—
Reversible Pockets/Teeth	16
Cutterwheel Guard	Standard
Chip Containment	.2 cu m 7.7 cu ft

Cutterwheel Diameter without Teeth	cm in
Cutterwheel Thickness	cm in
Cutterwheel Speed	— rpm
Cutterwheel Straight Line Dimension	cm in
Cutterwheel Cut Above Ground	cm in
Cutterwheel Cut Below Ground	cm in
Tooth Description	—
Number of Teeth	—
Cutterwheel Guard	—
Number of Indexes	—
Number of Pockets	—
Reversible Pockets/Teeth	—
Chip Containment	cu m cu ft

Upper Gearbox	—
Oil Type	—
Oil Capacity	L qt
Lower Gearbox	—
Oil Type - Lower Gearbox	—
Oil Capacity - Lower Gearbox	L qt
Driveshaft	—
Driveshaft - U Joints	—
Belt Type	V-Belt
Number of Primary Belts	2 individual (matched pair)
Jackshaft Dimension	1.3
Jackshaft Bearing Type	Sealed ball
Bearing Dimensions	1.3 bore
Dynamic Capacity	kg lbs
Number of Secondary Belts	6 Banded
Cutterwheel Shaft	1.8" (4.8 cm)
Bearing Dimensions - Secondary Belt	1.8" (4.8 cm) double spherical roller pillow block
Dynamic Capacity - Secondary Belt	kg lbs

Tank capacity	15.1 L 4 gal
Recommended Oil Type	Vermeer HyPower 68
System Type	Open-loop series system
Filtration Method	Pump suction strainer (100 mesh) and 6 micron return filter
Pump Flow at Maximum RPM	14 L/min 3.7 gpm
System relief pressure	140 bar 2030 psi
Flow Control	AutoSweep (option) or 2 speed ground drive
Directional Control	Manual hydraulic valve
Oil Cooler	—

System Voltage	12 V
Battery	400 CCA
Standard Gauges	Hourmeter
Deluxe Gauges	—
Warning Lights	Oil pressure, engine fault, operator presence status, clutch engage/disengagement status
Switches	Two-speed ground drive, clutch engage/disengage, operator presence handles
Controller	Vermeer ACS
Display	—
Shutdown System	Oil pressure shutdown
Radio Remote Control	—

Frame Description	Welded tube and plate steel
Control Station Description	Fixed side locations
Operator Vision Shield Description	—
Toolbox Description	Standard
Tongue Description	—
Tongue Extension	—
Hitch Type	Adapter for TLR25 trailer
Steerable Axle Type	Manual single wheel or dual hydraulic steering axle
Degree of Oscillation	— deg
Turning Radius	— deg
Tires - Option One	5.7" x 8" (14.5 x 20.3 cm) with rear wheels - duals standard
Wheels - Option One	—
Fender Description	Yes
Axle/Suspension	Rigid/Fixed
Type - Option One	—
Manufacturer - Option One	—
Capacity - Option One	—
Tires - Standard	—
Tires - Floatation	—
Wheels - Standard	—
Wheels - Floatation	—
Brake Type	—
Trailer Light Type	—

Track Frame Description	—
Track Type	—
Track Width - Retracted	—
Track Width - Extended	—
Track Length on Ground	—
Type of Idler	—
Number of Idlers	— —
Track Drive Pump Type	—
System Relief Pressure	—
Pump Flow at Maximum RPM	—
Track Drive Motor Type	—
Track Brake Type	—
High Speed Travel	km/h mph
Low Speed Travel with Boost Assist	km/h mph
Low Speed Travel	km/h mph
Low Speed Travel in Creep Mode	km/h mph
Ground Bearing Pressure - Soft Ground	kPa psi
Ground Bearing Pressure - Hard Ground	kPa psi

Low Speed Travel	20.1 m/min 66 ft/min
Low Speed Travel - Engine Option Two	m/min ft/min
High Speed Travel	40.5 m/min 133 ft/min
High Speed Travel - Engine Option Two	m/min ft/min
