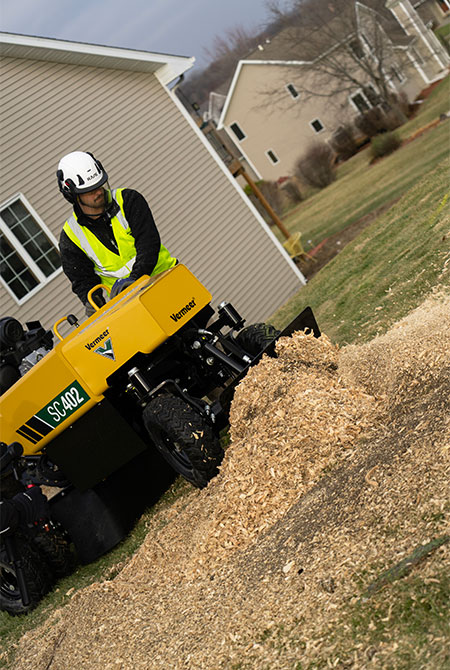

SC402 Stump Cutter

⤢ Mărește

Pe scurt

Date tehnice

Length - Tongue In	cm in
Length - Tongue Extended	cm in
Length	299.7 cm 118 in
Width	127.3 cm 50.1 in
Width (tracks retracted)	cm in
Width (tracks extended)	cm in
Height	134.6 cm 53 in
Height (non-remote unit)	cm in
Height (remote unit)	cm in
Overall Width Transport (without duals)	90.2 cm 35.5 in
Overall Width Transport (with duals)	127.3 cm 50.1 in
Overall Height Transport	134.6 cm 53 in
Overall Height Transport - Engine Option Two	cm in
Weight - Engine Option One	884.5 kg 1950 lbs
Weight - Engine Option Two	kg lbs
Weight - Engine Option Three	kg lbs
Tongue Weight - Engine Option One	kg lbs
Tongue Weight - Engine Option Two	kg lbs
Tongue Weight - Engine Option Three	kg lbs
Weight With Dual Wheel Option (Additional )	kg lbs
Width with Dual Wheel Option (Additional)	cm in
Weight with Four Wheel Drive and Chip Blade (Additional)	kg lbs
Weight With Chip Blade Option (Additional)	38.6 kg 85 lbs
Sound Power	107.6 dB(A)
Sound Power - Engine Option Two	—
Sound Power - Engine Option Three	—

Make and Model	Briggs & Stratton Vanguard® EFI/ETC
Number of Cylinders	— 2
Gross Horsepower (Maximum)	29.8 kw 40 hp
Torque (Max)	75.9 Nm 56 ft-lb
Fuel Tank Capacity	37.9 L 10 gal
Max Fuel Consumption	8.3 lph 2.2 gph
Fuel Type	Gasoline
Air Cleaner	Dry-type safety element and restriction indicator
Oil Filter	Spin-on
Recommended Oil	10W30 (see engine manual)
Oil Volume with Filter	2.4 L 2.5 qt
Maximum Angle of Continuous Operation	— 25 deg
Cooling Medium	Air
Coolant Capacity (Engine and Radiator)	L gal
Alternator	20/50 Amp (rpm-based)
Fan	—
Clutch Type	Electric clutch with brake

Make and Model	—
Number of Cylinders	— —
Gross Horsepower (Maximum)	kw hp
Torque (Max)	Nm ft-lb
Fuel Tank Capacity	L gal
Max Fuel Consumption	lph gph
Fuel Type	—
Air Cleaner	—
Oil Filter	—
Recommended Oil	—
Oil Volume with Filter	L qt
Maximum Angle of Continuous Operation	— deg
Cooling Medium	—
Coolant Capacity (Engine and Radiator)	L gal
Alternator	—
Fan	—
Clutch Type	—

Make and Model	—
Number of Cylinders	— —
Gross Horsepower (Maximum)	kw hp
Torque (Max)	Nm ft-lb
Fuel Tank Capacity	L gal
Max Fuel Consumption	lph gph
Fuel Type	—
Air Cleaner	—
Oil Filter	—
Recommended Oil	—
Oil Volume with Filter	L qt
Maximum Angle of Continuous Operation	— deg
Cooling Medium	—
Coolant Capacity (Engine and Radiator)	L gal
Alternator	—
Fan	—
Clutch Type	—
Clutch Drive Engagement	—

Cutterwheel Diameter	cm in
Cutterwheel Diameter without Teeth	50.8 cm 20 in
Cutterwheel Thickness	1.3 cm .5 in
Cutterwheel Speed	— 1525 rpm
Cutterwheel Straight Line Dimension	119.4 cm 47 in
Cutterwheel Cut Above Ground	61 cm 24 in
Cutterwheel Cut Below Ground	38.1 cm 15 in
Tooth Description	Vermeer cutting system (VCS)
Number of Teeth	18
Number of Indexes	—
Number of Pockets	—
Number of wear plates	—
Reversible Pockets/Teeth	16
Cutterwheel Guard	Standard
Chip Containment	.2 cu m 7.5 cu ft

Cutterwheel Diameter without Teeth	43.2 cm 17 in
Cutterwheel Thickness	1.3 cm .5 in
Cutterwheel Speed	— 1525 rpm
Cutterwheel Straight Line Dimension	119.4 cm 47 in
Cutterwheel Cut Above Ground	61 cm 24 in
Cutterwheel Cut Below Ground	38.1 cm 15 in
Tooth Description	Yellow Jacket™ cutter system
Number of Teeth	20
Cutterwheel Guard	Standard
Number of Indexes	2
Number of Pockets	20
Reversible Pockets/Teeth	20
Chip Containment	.2 cu m 7.5 cu ft

Upper Gearbox	—
Oil Type	—
Oil Capacity	L qt
Lower Gearbox	—
Oil Type - Lower Gearbox	—
Oil Capacity - Lower Gearbox	L qt
Driveshaft	—
Driveshaft - U Joints	—
Belt Type	V-belt
Number of Primary Belts	2 individual (matched pair)
Jackshaft Dimension	1.3
Jackshaft Bearing Type	Sealed ball
Bearing Dimensions	1.3 bore
Dynamic Capacity	kg lbs
Number of Secondary Belts	6 banded
Cutterwheel Shaft	1.8
Bearing Dimensions - Secondary Belt	1.8
Dynamic Capacity - Secondary Belt	kg lbs

Tank capacity	24.6 L 6.5 gal
Recommended Oil Type	Vermeer HyPower 68
System Type	Open-loop series system
Filtration Method	10-micron fill strainer and 6-micron return filter
Pump Flow at Maximum RPM	23.5 L/min 6.2 gpm
System relief pressure	170.3 bar 2470 psi
Flow Control	SmarSweep
Directional Control	Electric over hydraulic
Oil Cooler	—

System Voltage	12 V
Battery	550 CCA
Standard Gauges	—
Deluxe Gauges	—
Warning Lights	Oil pressure, engine fault, operator presence status, clutch engage/disengage status
Switches	Two-speed 2x4 and 4x4 ground drive, cutterwheel engage/disengage, blade (if equipped)
Controller	Danfoss®
Display	—
Shutdown System	Engine low oil pressure will derate engine
Radio Remote Control	—

Frame Description	Welded tube and plate steel
Control Station Description	Fixed side
Operator Vision Shield Description	—
Toolbox Description	Standard
Tongue Description	—
Tongue Extension	—
Hitch Type	—
Steerable Axle Type	Hydraulic steering oscillating axle
Degree of Oscillation	— 12 deg
Turning Radius	— deg
Tires - Option One	5.7 in x 8 in (14.5 cm x 20.3 cm) dual standard
Wheels - Option One	—
Fender Description	Yes
Axle/Suspension	Rigid/fixed (rear)
Type - Option One	—
Manufacturer - Option One	—
Capacity - Option One	—
Tires - Standard	—
Tires - Floatation	—
Wheels - Standard	—
Wheels - Floatation	—
Brake Type	Spring-applied, hydraulic release at rear motors
Trailer Light Type	—

Track Frame Description	—
Track Type	—
Track Width - Retracted	—
Track Width - Extended	—
Track Length on Ground	—
Type of Idler	—
Number of Idlers	— —
Track Drive Pump Type	—
System Relief Pressure	—
Pump Flow at Maximum RPM	—
Track Drive Motor Type	—
Track Brake Type	—
High Speed Travel	km/h mph
Low Speed Travel with Boost Assist	km/h mph
Low Speed Travel	km/h mph
Low Speed Travel in Creep Mode	km/h mph
Ground Bearing Pressure - Soft Ground	kPa psi
Ground Bearing Pressure - Hard Ground	kPa psi

Low Speed Travel	19.8 m/min 65 ft/min
Low Speed Travel - Engine Option Two	m/min ft/min
High Speed Travel	39.6 m/min 130 ft/min
High Speed Travel - Engine Option Two	m/min ft/min

Chip Blade Dimension	33-in wide x 12-in tall (83.8 cm x 30.5 cm)
Chip blade width (without extensions)	cm in
Blade Travel Above Ground	20.3 cm 8 in
Blade Travel Below Ground	6.4 cm 2.5 in
Bumper	—
