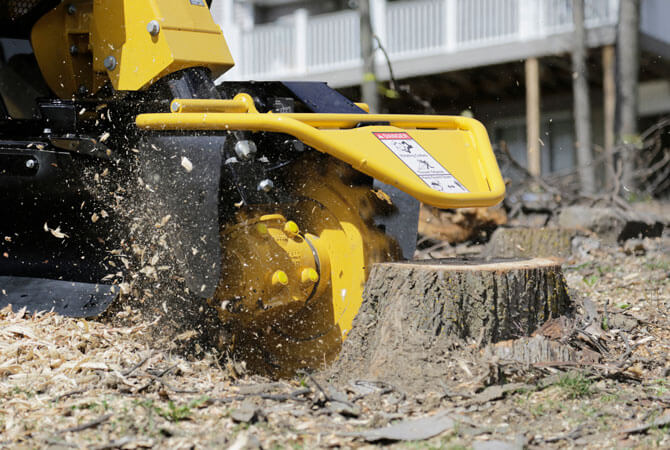

SC48TX Stump Cutter
Get in and out of sites efficiently with enough power to tackle the job.
Vermeer
⤢ Mărește
Pe scurt
- Gross Horsepower (Maximum)
- 35.8 kw 48 hp
Caracteristici & beneficii
- Efficient performance across stumps of all sizes
- Optimal power delivery at the stump
- Enhanced jobsite flexibility
Broșuri & fișe tehnice
Date tehnice
Specificații tehnice
| Length - Tongue In | cm in |
|---|---|
| Length - Tongue Extended | cm in |
| Length | 355.6 cm 140 in |
| Width | cm in |
| Width (tracks retracted) | 88.9 cm 35 in |
| Width (tracks extended) | 124.5 cm 49 in |
| Height | cm in |
| Height (non-remote unit) | 193 cm 76 in |
| Height (remote unit) | 215.9 cm 85 in |
| Overall Width Transport (without duals) | cm in |
| Overall Width Transport (with duals) | cm in |
| Overall Height Transport | cm in |
| Overall Height Transport - Engine Option Two | cm in |
| Weight - Engine Option One | 1701 kg 3750 lbs |
| Weight - Engine Option Two | kg lbs |
| Weight - Engine Option Three | kg lbs |
| Tongue Weight - Engine Option One | kg lbs |
| Tongue Weight - Engine Option Two | kg lbs |
| Tongue Weight - Engine Option Three | kg lbs |
| Weight With Dual Wheel Option (Additional ) | kg lbs |
| Width with Dual Wheel Option (Additional) | cm in |
| Weight with Four Wheel Drive and Chip Blade (Additional) | kg lbs |
| Weight With Chip Blade Option (Additional) | kg lbs |
| Sound Power | 107 dB(A) |
| Sound Power - Engine Option Two | — |
| Sound Power - Engine Option Three | — |
| Make and Model | CAT C1.7 T4F/Stage V |
|---|---|
| Number of Cylinders | — 3 |
| Gross Horsepower (Maximum) | 35.8 kw 48 hp |
| Torque (Max) | 166.8 Nm 123 ft-lb |
| Fuel Tank Capacity | 54.9 L 14.5 gal |
| Max Fuel Consumption | 11 lph 2.9 gph |
| Fuel Type | Ultra-low sulfur diesel |
| Air Cleaner | Dry-type, restriction indicator, evacuator valve and safety element |
| Oil Filter | Spin-on |
| Recommended Oil | 10W-30 |
| Oil Volume with Filter | 5 L 5.3 qt |
| Maximum Angle of Continuous Operation | — 35 deg |
| Cooling Medium | Water/antifreeze |
| Coolant Capacity (Engine and Radiator) | 11 L 2.9 gal |
| Alternator | 85A |
| Fan | 16.5 in |
| Clutch Type | Electric clutch with brake |
| Make and Model | — |
|---|---|
| Number of Cylinders | — — |
| Gross Horsepower (Maximum) | kw hp |
| Torque (Max) | Nm ft-lb |
| Fuel Tank Capacity | L gal |
| Max Fuel Consumption | lph gph |
| Fuel Type | — |
| Air Cleaner | — |
| Oil Filter | — |
| Recommended Oil | — |
| Oil Volume with Filter | L qt |
| Maximum Angle of Continuous Operation | — deg |
| Cooling Medium | — |
| Coolant Capacity (Engine and Radiator) | L gal |
| Alternator | — |
| Fan | — |
| Clutch Type | — |
| Make and Model | — |
|---|---|
| Number of Cylinders | — — |
| Gross Horsepower (Maximum) | kw hp |
| Torque (Max) | Nm ft-lb |
| Fuel Tank Capacity | L gal |
| Max Fuel Consumption | lph gph |
| Fuel Type | — |
| Air Cleaner | — |
| Oil Filter | — |
| Recommended Oil | — |
| Oil Volume with Filter | L qt |
| Maximum Angle of Continuous Operation | — deg |
| Cooling Medium | — |
| Coolant Capacity (Engine and Radiator) | L gal |
| Alternator | — |
| Fan | — |
| Clutch Type | — |
| Clutch Drive Engagement | — |
| Cutterwheel Diameter | 61 cm 24 in |
|---|---|
| Cutterwheel Diameter without Teeth | cm in |
| Cutterwheel Thickness | 3.5 cm 1.4 in |
| Cutterwheel Speed | — 1235 rpm |
| Cutterwheel Straight Line Dimension | 165.1 cm 65 in |
| Cutterwheel Cut Above Ground | 71.1 cm 28 in |
| Cutterwheel Cut Below Ground | 40.6 cm 16 in |
| Tooth Description | Vermeer cutting system |
| Number of Teeth | 27 |
| Number of Indexes | — |
| Number of Pockets | — |
| Number of wear plates | 6 |
| Reversible Pockets/Teeth | 24 |
| Cutterwheel Guard | Standard |
| Chip Containment | .7 cu m 23 cu ft |
| Cutterwheel Diameter without Teeth | cm in |
|---|---|
| Cutterwheel Thickness | cm in |
| Cutterwheel Speed | — rpm |
| Cutterwheel Straight Line Dimension | cm in |
| Cutterwheel Cut Above Ground | cm in |
| Cutterwheel Cut Below Ground | cm in |
| Tooth Description | — |
| Number of Teeth | — |
| Cutterwheel Guard | — |
| Number of Indexes | — |
| Number of Pockets | — |
| Reversible Pockets/Teeth | — |
| Chip Containment | cu m cu ft |
| Upper Gearbox | — |
|---|---|
| Oil Type | — |
| Oil Capacity | L qt |
| Lower Gearbox | Straight bevel |
| Oil Type - Lower Gearbox | SAE 75W90 synthetic gear oil |
| Oil Capacity - Lower Gearbox | 1.5 L 1.6 qt |
| Driveshaft | 2 universal joints |
| Driveshaft - U Joints | 2 standard with double lip seal |
| Belt Type | — |
| Number of Primary Belts | — |
| Jackshaft Dimension | — |
| Jackshaft Bearing Type | — |
| Bearing Dimensions | — |
| Dynamic Capacity | kg lbs |
| Number of Secondary Belts | — |
| Cutterwheel Shaft | — |
| Bearing Dimensions - Secondary Belt | — |
| Dynamic Capacity - Secondary Belt | kg lbs |
| Tank capacity | 34.1 L 9 gal |
|---|---|
| Recommended Oil Type | Vermeer highpower 68 |
| System Type | Tandem gear pump, pressure balanced |
| Filtration Method | Full-flow 4-micron return filter, suction strainer |
| Pump Flow at Maximum RPM | 41.6 L/min 11 gpm |
| System relief pressure | 199.9 bar 2900 psi |
| Flow Control | — |
| Directional Control | Yes |
| Oil Cooler | Yes |
| Tank capacity | L gal |
|---|---|
| Recommended Oil Type | — |
| System Type | — |
| Filtration Method | — |
| Pump Flow at Maximum RPM | L/min gpm |
| System relief pressure | bar psi |
| Flow Control | — |
| Directional Control | — |
| Oil Cooler | — |
| System Voltage | 12 |
|---|---|
| Battery | 950 CCA |
| Standard Gauges | — |
| Deluxe Gauges | — |
| Warning Lights | Engine warning |
| Switches | Boom swing, boom height, creep propel, ignition, clutch, track gauge, track speed range and throttle, blade |
| Controller | Danfoss |
| Display | Multifunction display (MFD) that displays hours, fuel level, engine speed, engine faults and engine status |
| Shutdown System | High engine temperature and low oil pressure |
| Radio Remote Control | Optional, wireless |
| Frame Description | Welded tube and plate steel |
|---|---|
| Control Station Description | Swing out |
| Operator Vision Shield Description | Abrasion-resistant coated polycarbonate |
| Toolbox Description | — |
| Tongue Description | — |
| Tongue Extension | — |
| Hitch Type | — |
| Steerable Axle Type | — |
| Degree of Oscillation | — deg |
| Turning Radius | — deg |
| Tires - Option One | — |
| Wheels - Option One | — |
| Fender Description | — |
| Axle/Suspension | — |
| Type - Option One | — |
| Manufacturer - Option One | — |
| Capacity - Option One | — |
| Tires - Standard | — |
| Tires - Floatation | — |
| Wheels - Standard | — |
| Wheels - Floatation | — |
| Brake Type | Spring-applied and hydraulically-released dual parking brakes |
| Trailer Light Type | — |
| Track Frame Description | — |
|---|---|
| Track Type | Rubber 7-in width |
| Track Width - Retracted | — |
| Track Width - Extended | — |
| Track Length on Ground | 47 in (119.4 cm) |
| Type of Idler | Cast |
| Number of Idlers | — 7 |
| Track Drive Pump Type | Tandem gear pump, pressure balanced |
| System Relief Pressure | 2900 psi |
| Pump Flow at Maximum RPM | — |
| Track Drive Motor Type | — |
| Track Brake Type | — |
| High Speed Travel | 2.4 km/h 1.5 mph |
| Low Speed Travel with Boost Assist | km/h mph |
| Low Speed Travel | 1.8 km/h 1.1 mph |
| Low Speed Travel in Creep Mode | km/h mph |
| Ground Bearing Pressure - Soft Ground | 39.2 kPa 5.7 psi |
| Ground Bearing Pressure - Hard Ground | kPa psi |
| Low Speed Travel | 30.5 m/min 100 ft/min |
|---|---|
| Low Speed Travel - Engine Option Two | m/min ft/min |
| High Speed Travel | 42.7 m/min 140 ft/min |
| High Speed Travel - Engine Option Two | m/min ft/min |
| Chip Blade Dimension | — |
|---|---|
| Chip blade width (without extensions) | 86.4 cm 34 in |
| Blade Travel Above Ground | 21.6 cm 8.5 in |
| Blade Travel Below Ground | cm in |
| Bumper | — |
| Radio Remote Control | Optional |
|---|---|
| Remote Functions | E-stop, throttle, cutter wheel clutch, boom swing, boom height, propel, track mode and track speed range |
| Remote Display | LCD with remote control and machine functions status |
| Remote Range | 300 ft (91.4 m) |
| Special Paint | Optional |
|---|---|
| Extended Warranty | Optional |
| Preventive Maintenance | Optional |
| Hydraulically Engaged Clutch | — |
| Description | — |
|---|---|
| Sensor Type | — |
| Quantity/Location | — |
| Visual Interface | — |
